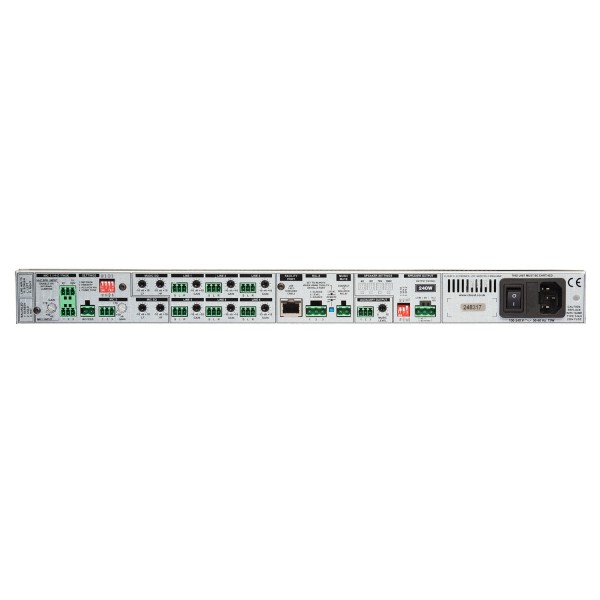

Cloud MPA 240 General Purpose Mixer Amplifier, The increase in demand for higher quality mixed impedance output amplifiers for general installer applications has instigated the launch of Cloud Electronics new MPA Series. 6 line + 4 microphone inputs into a single zone with configurable 25/70 or 100volt internal transformer plus the industry standard wall mount remote controllers (RL1 & RSL6) make the MPA Series the most flexible and reliable installer amps in the market.

Line Inputs

• Frequency Response:
• 20Hz +0dB -1dB, 63Hz -3dB
• 3rd order filter, selectable by jumper
• 20kHz -1dB low impedance output
• 20kHz -2dB 100/70/25V line outputs
• Distortion:
• <0.03% low impedance output
• <0.04% 25/70/100V outputs
• @ 1kHz 1dB below full power
• 80kHz bandwidth
• Sensitivity: 195mV (-12dBu) to 2V (+8dBu)
• Input Gain Control: 20dB range
• Input Impedance: 47kΩ
• Headroom: >-20dB
• Noise: -90dBr 22kHz bandwidth, 0dB input. Relative to full power output.
• Equalisation:
• HF: ±10dB/10kHz
• LF: ±10dB/50Hz

Microphone Inputs

• Frequency Response:
  • 100Hz / -3dB(3rd order filter)
  • 20kHz +0, -1dB low impedance output
  • 20kHz -2dB 100/70/25V line outputs
• Distortion:
• <0.03% @ 1kHz -1dB below full power
• 80kHz bandwidth
• Gain Range: 10dB - 50dB
• Input Impedance: >2kΩ (balanced)
• Phantom Power: +15V (PCB jumper for on/off)
• Headroom: >20dB
• Input Noise: -127dB EIN 22Hz - 22kHz (150Ω)
• Equalisation:
• HF: ±10dB/5kHz
• LF: ±10dB/100Hz

Power Output

• 240Watts, any output @1kHz, <0.07%THD+N

Power Supply

• Power supply: 230VAC
• Mains Fuse Rating (20mm x 5mm) : 230V
• T4A H

Cooling & Protection

• Cooling: Variable speed fan cooling, air intake on the front of the product, exhaust on the rear
• Protection: Fixed level signal limiter with a max gain reduction of 20dB,DC protection, IV limiting & short circuit protection, Switch on delay

Physical

• Dimensions: 482.6mm (19 inch)x 88.0mm (2U) x 344.5 mm deep (+ connectors & knobs)
• Weight: 12.6 kg net
