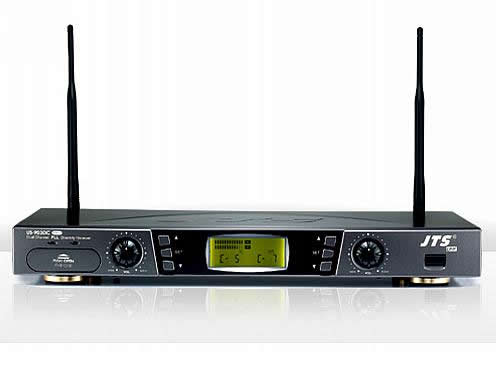

JTS US-903DC Pro UHF PLL Dual Channel Diversity Receiver - Channel 38

JTS US-903DC Pro UHF PLL Dual Channel Diversity Receiver - Channel 38

Features

Preset 4 groups each of 16 UHF channels.
PLL synthesized technology ensures stable RF transmission and reception.
Diversity technology permits minimum dropouts in the RF link.
Lock on function is provided.
LCD indicates channel, RF/AF LEVEL.
Equipped with 2 balanced and 1 unbalanced outputs.
Built-in charger for 4 pcs of AA battery.

Specifications

Frequency Preparation: PLL Synthesized Control
Carrier Frequency Range 606 ~ 614 MHz - (Channel 38)
S/N ratio:> 105dB
T.H.D (1 KHz): <0.6 % @ 1KHz
Display: LCD
Display Contents: Frequency, Antenna A/B, RF/AF Level Meter
Controls: Power ON/OFF Channel Up/Down Squelch Level, Audio Level
Audio Output Level:-12 dB
AF output Impedance:600Ω
Squelch: Pilot Tone & Noise Mute
Operation Voltage:12-18 VDC, 600mA
Output Connector: 2 Balanced XLR Socket, 1 Unbalanced φ 6.3mm phone jack
Dimension (m/m): 480mm(W)*45mm(H)*232mm(D)
*Comes With Rack Ears

Why Channel 38 - well its all thanks to the DSO (The Digital Switchover) which takes place in 2012 (after the Olympics) and will have a major effect on users. Most notably, we will lose the use of Channel 69. All equipment tuned to this band will become unusable (you can try and use it if you like, but the signal will be totally swamped by digital TV so you'll be unlikely to get anything but interference. Channel 70 is De regulated and License free so the entire space between 863.1 - 864.9 MHz is free. However this bandwidth is very narrow and at best you will get 3 to 4 mics to work on channel 70. Any more than this and the mics will over lap each other and interfere with each other. So if your looking to use 4 or more radio systems at once then you do need to move to the wider bandwidth on Channel 38.

US-903D/C Frequency range; 606-630MHz

Group 0 ( A )		Group 1 ( B )		Group 2 ( C )		Group 3 ( D )
1	610.250	1	606.750	1	607.125	1	606.625
2	611.500	2	607.375	2	607.750	2	607.125
3	612.500	3	609.125	3	608.625	3	607.875
4	613.125	4	610.000	4	609.750	4	609.652
5	614.250	5	611.250	5	610.500	5	611.875
6	615.125	6	612.250	6	612.125	6	613.125
7	616.500	7	612.875	7	612.875	7	613.875
8	619.500	8	614.000	8	614.250	8	615.125
9	620.250	9	614.875	9	615.000	9	616.875
10	621.875	10	616.250	10	616.875	10	617.375
11	623.000	11	619.250	11	620.500	11	618.875
12	624.500	12	620.000	12	621.875	12	619.375
13	625.000	13	621.625	13	622.625	13	620.125
14	626.750	14	622.750	14	623.750	14	622.250
15	627.750	15	624.250	15	624.375	15	623.625
16	629.250	16	629.750	16	629.750	16	629.625

Please note that this item is no longer held in UK stock as a rule. This will be a special order item direct from the JTS factory in Taiwan and as such then lead time for this item is typically around 10-12 weeks. This item once ordered, cannot be cancelled.
