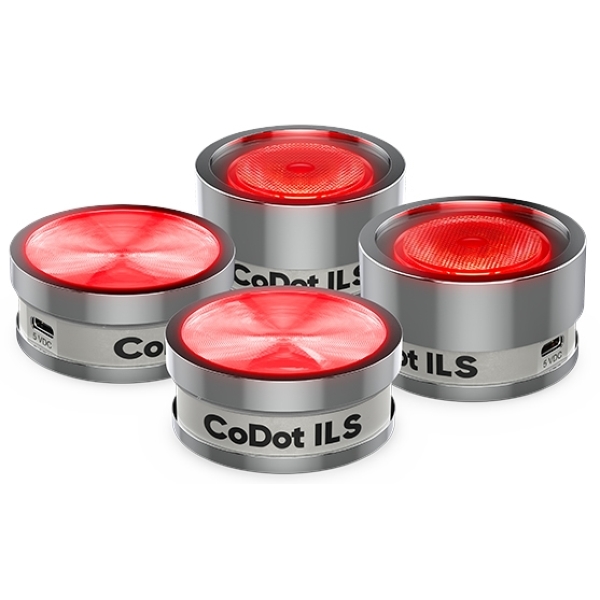

Chauvet DJ CoDot ILS RGBW

The Chauvet DJ CoDot ILS RGBW fits in the palm of your hand. This puck-sized LED illuminator is the perfect solution for small spaces where conventional fixtures can’t fit. Each CoDot ILS has 1 quad-color (RGBW) LED to suit a range of applications. With D-Fi, ILS, and RF compatibility, this fixture works with the lighting control that best suits your needs. Make any area of your venue shine with CoDot ILS.

Chauvet DJ CoDot ILS RGBW Features

- Coin-sized LED illuminator designed for small applications where conventional fixtures won’t fit
- Includes two lens options to meet different application criteria
- Magnetic base easily mounts to metal surfaces
- Threaded insert is compatible with camera tripods and accessories
- ILS compatibility for use in the ILS ecosystem
- Built-in DFI transceiver communicates DMX or ILS signals wirelessly
- Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
- Easy navigation and access all functions directly from the LED display
- Power linking multiple units from the USB type-C in and out

Chauvet DJ CoDot ILS RGBW Specifications

- DMX Channels: 4 or 6
- Max Unobstructed Distance: 600 ft (183 m)
- Light Source: 1 LED (quad-color RGBW) 3 W, (0.8 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- Operating Frequency: 2.4 GHz
- Power Linking: 4 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Approvals: CE, ROHS, UKCA, FCC
- Beam Angle:
  - Installed lens: 19°
  - Included lens: 14°
- Illuminance:
  - Installed lens: 256 lux @ 2 m
  - Included Lens: 442 lux @ 2 m
- Operating Frequency: 2.4 GHz
- Power and Current: 7 W, 0.1 A @ 230 V, 50 Hz
- Optional Controllers: ILS Command, RFC, RFC-XL
- Threaded Insert: M6 thread
- Dimensions (W x H x D): 57 x 24 x 54 mm
- Weight: 0.1 kg

Chauvet DJ CoDot ILS RGBW Supplied With

- 4x Chauvet DJ CoDot ILS
- 8x lenses
- 3x short USB cables (0.5m)
- 3x long USB cables (2m)
- 1x carry case
- 1x external power supply
- Quick Reference Guide
