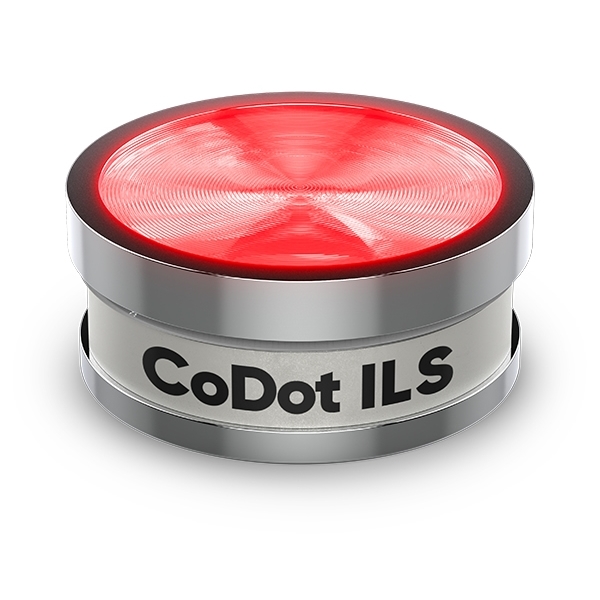

Chauvet DJ CoDot ILS RGBW

Chauvet DJ CoDot ILS RGBW Features

- Coin-sized LED illuminator designed for small applications where conventional fixtures won’t fit

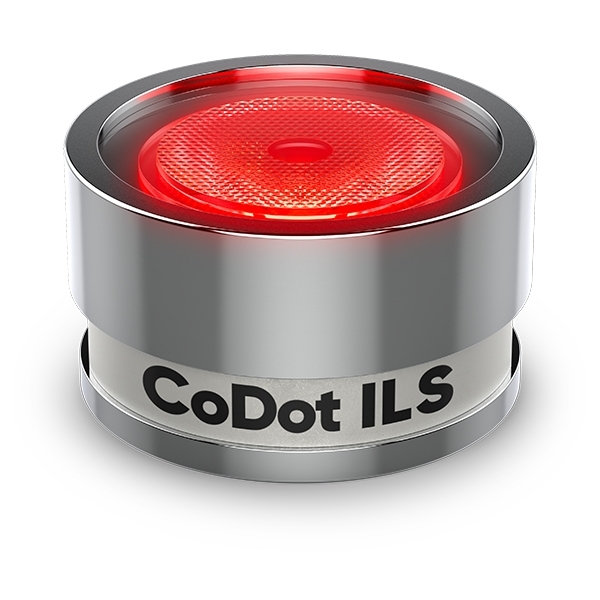

- Includes two lens options to meet different application criteria
- Magnetic base easily mounts to metal surfaces
- Threaded insert is compatible with camera tripods and accessories
- ILS compatibility for use in the ILS ecosystem
- Built-in DFI transceiver communicates DMX or ILS signals wirelessly
- Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes

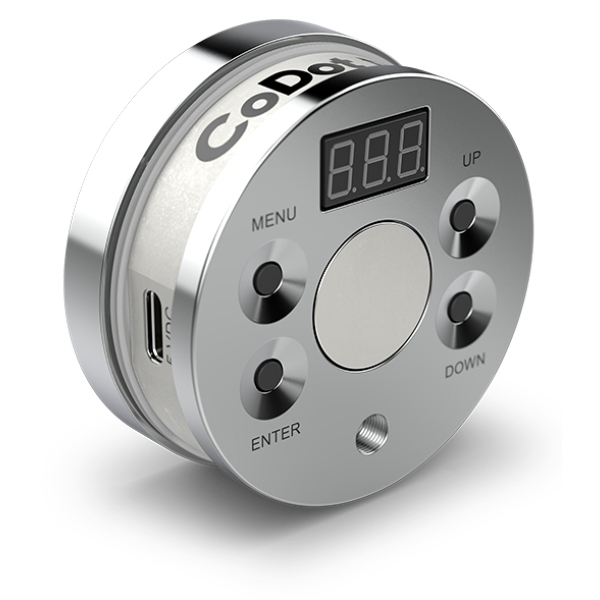

- Easy navigation and access all functions directly from the LED display
- Power linking multiple units from the USB type-C in and out

Chauvet DJ CoDot ILS RGBW Specifications

- DMX Channels: 4 or 6
- Max Unobstructed Distance: 600 ft (183 m)
- Light Source: 1 LED (quad-color RGBW) 3 W, (0.8 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- Operating Frequency: 2.4 GHz
- Power Linking: 4 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Approvals: CE, ROHS, UKCA, FCC
- Beam Angle:
  - Installed lens: 19°
  - Included lens: 14°
- Illuminance:
  - Installed lens: 256 lux @ 2 m
  - Included Lens: 442 lux @ 2 m
- Operating Frequency: 2.4 GHz
- Power and Current: 7 W, 0.1 A @ 230 V, 50 Hz
- Optional Controllers: ILS Command, RFC, RFC-XL
- Threaded Insert: M6 thread
- Dimensions (W x H x D): 57 x 24 x 54 mm
- Weight: 0.1 kg

Further Product Information Below

Chauvet DJ CoDot ILS Manual (PDF)

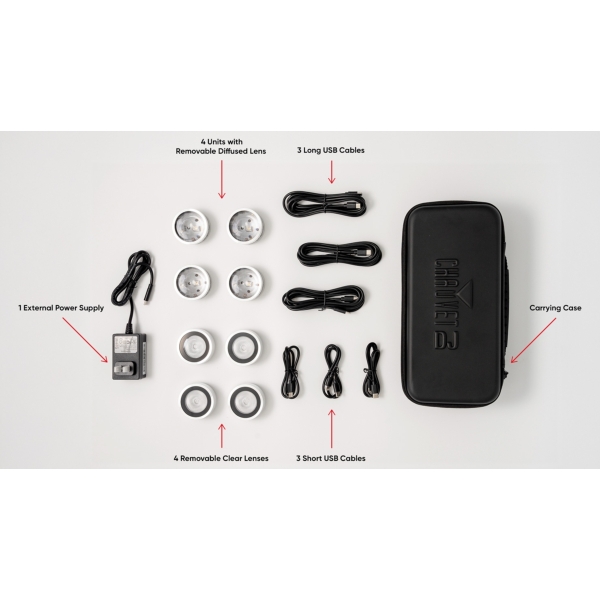

Chauvet DJ CoDot ILS RGBW Supplied With

- 4x Chauvet DJ CoDot ILS
- 8x lenses
- 3x short USB cables (0.5m)
- 3x long USB cables (2m)

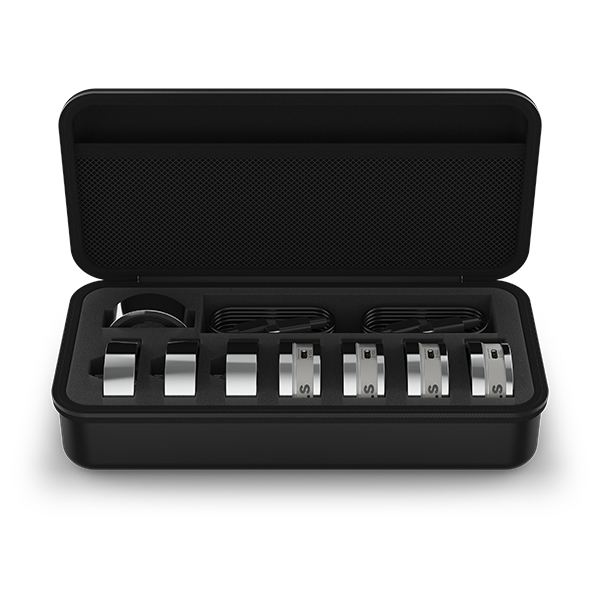

- 1x carry case
- 1x external power supply
- Quick Reference Guide
