Adastra Mixers

The Adastra LS26 Audio Line Splitter, 1 or 2 Inputs to 12 Outputs is an audio signal splitter with 2 line inputs which are buffered and divided across 6 outputs each. Can be used as a 6-way stereo splitter or can be switched as a mono system feeding all 12 outputs from Input A. Applications include zone mixing, personal monitoring, effects patching and routing in complex recording setups.

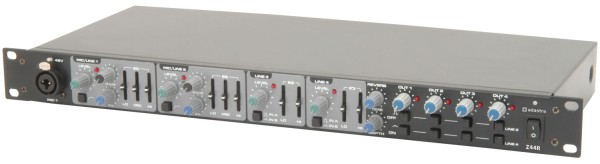

The Adastra Z44R Multi-Purpose 1U Mixer, 4 Inputs to 4 Outputs with Reverb is a 1U live/zoning rack mixer with 2 mic/line inputs and 2 stereo line inputs feeding 4 stereo outputs. Mic channels feed to all outputs, whereas the stereo channels are switchable to any required zone. Applications vary from additional vocal mixing for DJ set-ups to multi-room zoning for venues and many other scenarios.

The Adastra Z5M 1U Zone Mixer, 2 Inputs to 5 Outputs is a 2 input, 5 zone mixer with individual volumes for both inputs and a mono switch for each zone. All inputs and outputs are stereo via balanced XLR connectors. Acts as the central mix and control in an installation serving up to 5 separate stereo speaker zones.

The Adastra AD-100 1U DAB and FM Radio Tuner with Remote features both a DAB and an FM tuner. Complete with auto tune and preset memory function, it is easy to select the required channel with the supplied IR remote control. The 1U 19 inch rack mountable design allows for easy installation.

The Adastra DM-8 Mk2 1U Digital Messaging Unit is a 1U rack-mount digital messaging unit for scheduled audio playback. Audio files are stored on a removable SD card and may be transferred by inserting into a PC or Mac computer or directly recorded on the DM-8. A single mic/line input can be used for recording or for live announcements which can override SD playback. Up to 99 schedules can be programmed to play a particular audio file from the SD card, set by 24 hour time and day(s) of the week. The DM-8 can be added to any sound system to provide automated playback of timed announcements, music or audio alerts.

The Adastra MM321 1U Rack Mixer with Bluetooth, USB Player and FM Tuner is a rack-mountable 1U mixer with built-in media player and Bluetooth receiver. 3 mono inputs connect via XLR microphone or line input (switchable). Each of these inputs has switchable +20V phantom power for use with condenser microphones or D.I. boxes and channel 1 has a variable priority function. Two stereo auxiliary line inputs are provided on RCA connectors with a stereo record output. Media player operating modes include 3.5mm Aux input, USB audio player, FM radio tuner and Bluetooth receiver for playback from a smart phone or tablet. Main left and right outputs are fed to XLR with an additional mono summed output on 6.3 jack. Versatile yet easy to use as a main mixer for background music, public address and house PA systems.
