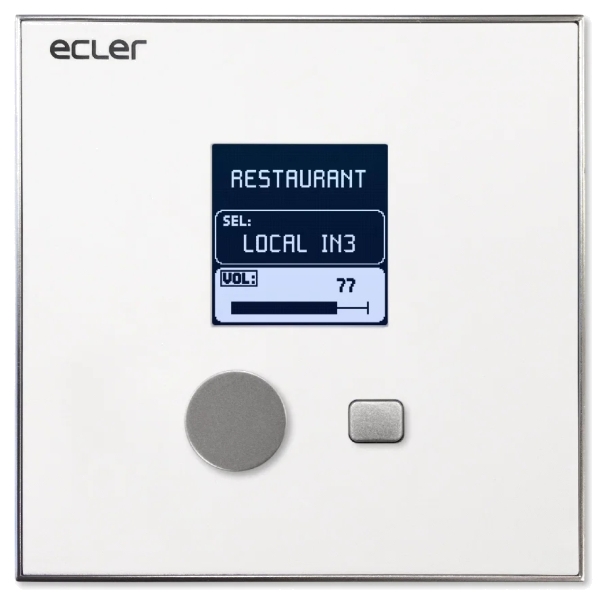

Ecler eMCONTROL1 Digital LCD Remote Wall Controller for HUB Series

The Ecler eMCONTROL1 Digital LCD Remote Wall Controller for HUB Series is a digital wall control compatible with HUB Series and eMIMO1616 and configurable through the web application embedded. It allows you to configure source selection, volume control and equalization for a given zone, including all or some of the functions. It can be combined with a WPa series wall panel, connecting both with a single CAT5 cable or better to the HUB digital zoner, transmitting the mono and balanced audio signal (line level) along with the necessary control data and DC power supply.

Ecler eMCONTROL1 Digital LCD Remote Wall Controller for HUB Series Features

- Digital control panel compatible with HUB Series and eMIMO1616
- Volume adjustment, source selection and EQ (programmable)
- Compatible with WPa series panels with audio connector, for sending audio and control signals over a single CAT5 cable or better
- Styling designed in collaboration with Italdesign Giugiaro

Ecler eMCONTROL1 Digital LCD Remote Wall Controller for HUB Series Specifications

Screen/Display:
- Resolution: 128 x 128 pixels
- Display: LCD

Monitoring And Control:
- Buttons: Encoder, selection key

Connectivity:
- Ethernet: 1 RJ45 connector, cable: Cat-5e or better
- Serial port: RS-485
- Programing and control: Configurable through the web application HANGAR

Electrical:
- Power supply: Optional, 24VDC (min. 30mA) Recommended external power supply: Ecler WP24-PSU

Physical:
- Type: Source selection, volume control, equalization
- Installation options: Wall
- Operating temperature: Min: -10°C ; 14°F Max: 40°C ; 104°F
- Operating humidity: <85% HR
- Storage temperature: Min: -10°C ; 14°F Max: 40°C ; 104°F
- Storage humidity: <90% HR
- Dimensions (W x H x D): 86 x 86 x 45 mm
- Weight: 0.15 kg

Ecler eMCONTROL1 Digital LCD Remote Wall Controller for HUB Series Supplied With

- Cable to interconnect with WPaMIX-T
- Screws for fixing to surface or flush mounting box
- Magnet for cover removal
- Surface mounting box
