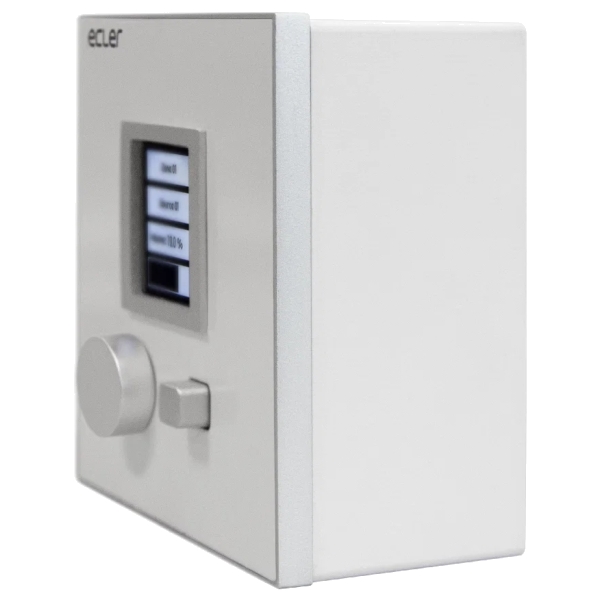

Ecler eMCONTROL1 Digital LCD Remote Wall Controller for HUB Series

Ecler eMCONTROL1 Digital LCD Remote Wall Controller for HUB Series Features

- Digital control panel compatible with HUB Series and eMIMO1616
- Volume adjustment, source selection and EQ (programmable)

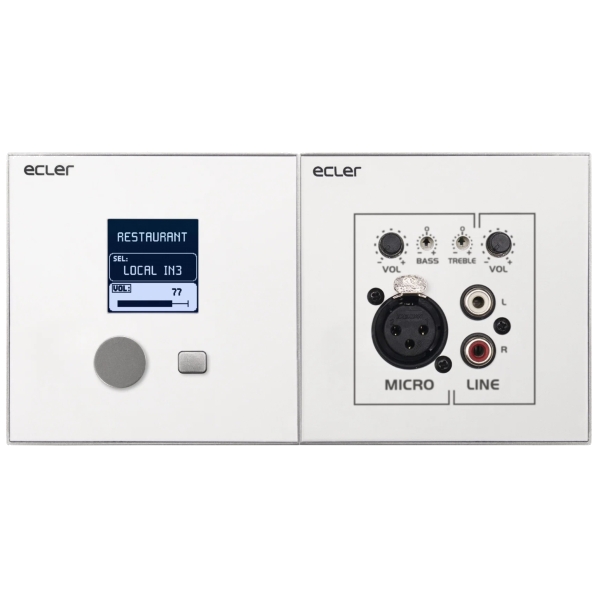

- Compatible with WPa series panels with audio connector, for sending audio and control signals over a single CAT5 cable or better
- Styling designed in collaboration with Italdesign Giugiaro

Ecler eMCONTROL1 Digital LCD Remote Wall Controller for HUB Series Specifications

Screen/Display:
- Resolution: 128 x 128 pixels
- Display: LCD

Monitoring And Control:
- Buttons: Encoder, selection key

Connectivity:
- Ethernet: 1 RJ45 connector, cable: Cat-5e or better
- Serial port: RS-485
- Programing and control: Configurable through the web application HANGAR

Electrical:
- Power supply: Optional, 24VDC (min. 30mA) Recommended external power supply: Ecler WP24-PSU

Physical:
- Type: Source selection, volume control, equalization
- Installation options: Wall
- Operating temperature: Min: -10°C ; 14°F Max: 40°C ; 104°F
- Operating humidity: <85% HR
- Storage temperature: Min: -10°C ; 14°F Max: 40°C ; 104°F
- Storage humidity: <90% HR
- Dimensions (W x H x D): 86 x 86 x 45 mm
- Weight: 0.15 kg

Further Product Information Below

Ecler HUB-Series Manual (PDF)

Ecler eMCONTROL1 Data Sheet (PDF)

Ecler eMCONTROL1 Digital LCD Remote Wall Controller for HUB Series Supplied With

- Cable to interconnect with WPaMIX-T
- Screws for fixing to surface or flush mounting box
- Magnet for cover removal
- Surface mounting box
