Nexo PS8 TDcontroller, The PS8 TDcontroller is an advanced analogue processor that allows the PS8 Loudspeaker and optional LS400 Subwoofer to achieve superior performance from an exceptionally small format. The PS8 TD provides crossover, sensed amplifier control and system equalization, optimised for the PS8 and LS400. Each PS8 TD has two inputs and three outputs, L, R and summed sub out, minimising installation cost and complexity.

Nexo PS10 TDController-R2, The PS10 TDController-R2 is an advanced analogue processor that allows the PS10-R2 Loudspeaker and optional LS600 Subwoofer to achieve exceptional performance from such compact packages. The PS10 TDController-R2 provides crossover, sensed amplifier control and system equalisation optimised for the PS10-R2 and LS600. One PS10 TDController-R2 has two inputs and three outputs, L, R and summed sub out, minimising installation cost and complexity.

Nexo PS15 TDcontroller-R2, The PS15 TDController-R2is an advanced analogue processor that allows the PS15-R2 Loudspeaker and optional RS15 Subwoofer to achieve exceptional performance from such compact packages. The PS15 TDController-R2 provides crossover, sensed amplifier control and system equalisation optimised for the PS15-R2 and RS15.

Nexo Geo S12TD Controller, The S12 TDcontroller is an advanced analogue processor that allows the S12 Series loudspeakers and companion NEXO Sub-Bass exceptional performance from mid-sized packages. The S12 TD provides crossover, sensed-amplifier control and optimized system equalization for any S1210/S1230 system.

Nexo NX242 Digital TD Controller, NEXO’s NX242 TDcontroller is an advanced, proprietary digital processor that maintains exceptional performance and reliability in Geo, Alpha and PS loudspeaker systems and associated Sub-Basses. The NX242 provides crossover, sensed-amplifier control and system alignment acoustically matched to each NEXO component.

Nexo NX242ES4 Digital TD Controller for The Full Nexo Cabinets Range + NX.ES4.

Nexo NX.ES104 Ethersound 100, Network Interface.

Nexo NX.ES4 Ethersound digital network card + Additional Resources & Memory for NX242.

Nexo NX.Y16ES 16 IN/OUT Ethersound digital network card for Yamaha Digital Mixer.

Nexo NXAMP 4x1 Powered TDcontroller, NXAMP technology is far more complex than a bundled power amplifier and loudspeaker controller. More than two years of research yielded significant DSP innovations which allow multiple voltage/current/temperature sense lines, from the amplifier’s output, to protect both the amplifier and power supply.

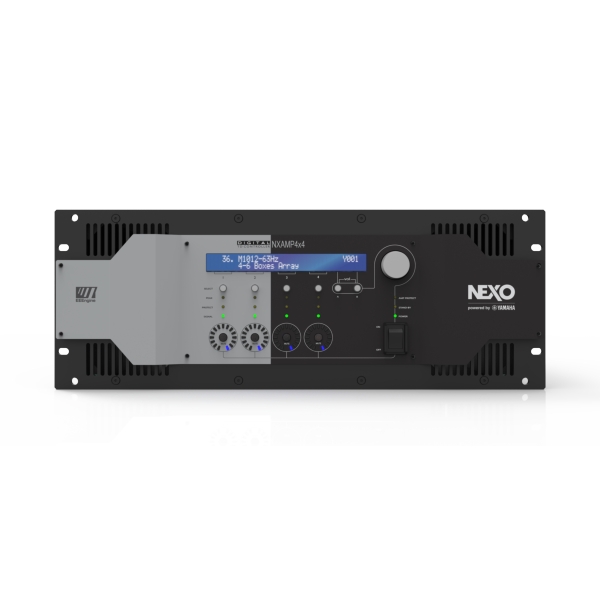

Nexo NXAMP 4x4 Powered TDcontroller, NXAMP technology is far more complex than a bundled power amplifier and loudspeaker controller. More than two years of research yielded significant DSP innovations which allow multiple voltage/current/temperature sense lines, from the amplifier’s output, to protect both the amplifier and power supply.

Nexo NXAMP4X1U Powered Digital TD Controller 4x1U. 110 V Version.

Nexo NXAMP4X4U Powered Digital TD Controller 4x4U. 110 V Version.

Nexo NAT-HAND4X1 Handle Set For NXAMP4X1U/C.

Nexo NAT-HAND4X4 Handle Set For NXAMP4X4U/C.

Nexo NAT-R1 NXAMP Rack; 1 Module, 6U rack that can hold one sleeve frame, one patch panel and either one NXAMP 4x1 or NXAMP 4x4. (To power NXAMP in 1 Unit NXAMP Rack, utilize powercons on NXAMP Patch Panel).

Nexo NAT-R2 NXAMP Rack; 2 Modules, 14U Rack that can hold 2 x sleeve frames, 2 x NXAMP patch panels, either 2x NXAMP 4x1 or 2x NXAMP 4x4, one Power Distribution unit. Features a removable back and 4 wheels for easy transport.

Nexo NAT-R3 NXAMP Rack; 3 Modules, 20U Rack that can hold 3 x sleeve frames, 3x NXAMP patch panels, either 3 x NXAMP 4x1 or 3 x NXAMP 4x4, one Power Distribution unit. Features a removable back and 4 wheels for easy transport.

Nexo NAT-PP NXAMP Patch Panel, The NXAMP Patch Panel enables NEXO systems to be used with analogue or digital audio signals and facilitates integration into digital audio networks.

Nexo NAT-RSLV NXAMP Patch Panel Sleeves Set, Constructed of 1.6mm steel, the NXAMP sleeve frame can accommodate one NXAMP patch panel and one NXAMP 4x1 or 4x4. By ‘pre-loading’ the amplifier and patch panel in a Sleeve Frame, amp racks can be quickly and easily configured to suit each application.
