£347.22 (£416.66 Including VAT at 20%)

MegaWinch - Ultra Heavy Duty Winch Stand

Unique Designed CE compliant Ultra Heavy Duty Winch Stand
that breaks apart for easy transport.

Quick to erect, locks in position
Comes with Health & Safety Certification
Fully CE Compliant

Features the SURELOC system
Massive 100kg rating
Fully Braked and Clutch Winch

Ultimax MegaWinch Very Heavy Duty Locking 3.7m Winch Stand with a huge 100kg rating.
The MegaWinches unique design allows the base and poles to be transported separately and ensuring the full load is taken by the lower casting, so the legs are purely for stability.
This split apart design allows for easy transport by one person.
Fully legal, and finished in chrome with black legs.
Supplied with health and safety certification and full CE markings. Heavy duty winch with ratchet lift and a braked clutch to prevent equipment slipping.
Fully serviceable with spare cables available.
Features the Ultimax SURELOC mechanism on a secondary collar which locks the telescopic pole and prevents accidental wind downs.
All the weight bearing is taken by the floor, hence its outstanding weight rating. Main lower tube is 50mm diameter which allows it to be fitted with scaffold fittings or into a suitable 50mm receptacle.
Supplied complete with 32mm top casting.

Technical Data
Maximum Height 3.7m
Top Pole 32mm diameter
Lower Pole 50mm diameter
SWL 100kg
Height when closed 2050mm
Weight 16kg Column / 9kg Base
Leg Span 1500mm

£43.26 (£51.91 Including VAT at 20%)

TrussLite Straight 2000mm,The core of the TrussLite system. Each straight section comes complete with a pair of couplers and 4 x TrussLite EZ Pins. Sections can be joined together with ease. Available in 500mm, 1000mm, 1250mm, 1500mm and 2000mm lengths.

£1.30 (£1.56 Including VAT at 20%)

LED Replacement Starcolth White LED Replacement White LED for Starcloths.

£480.53 (£576.64 Including VAT at 20%)

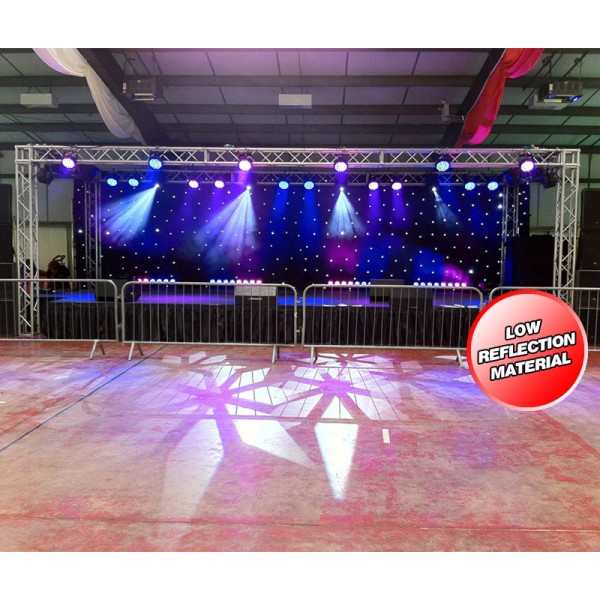

Ultimax TrussLite Goal Post Kit 006 - 8000mm (W) x 4500mm (H), Ultimax TrussLite Goal Post Kit is a light, compact and strong goal post solution without the need for Tripods which significantly reduces the footprint required to erect. These are Ideal for lighting and Modular Star cloths. The kits pack flat making them easy to transport and they can be extended or modified making them versatile, flexible and future proof. The kit is quick and easy to erect without the need for tools using the supplied EZ pins. Due to the very large span and height of this overhead rig, an additional 3rd centre leg is required. This is designed specifically for supporting lighter loads such as back curtains, projection screens and star cloths.

Features

• Maximum recommended evenly distributed load per 4m section is 25Kg
• Maximum recommended evenly distributed load is 50Kg across the 8m span
• All in one, ready to go
• Packs virtually flat
• Small footprint
• Mega 8m span
• Simple quick tool free assembly
• Strong Steel construction / Bright Zinc plated
• Expandable / Shrinkable / Adaptable
