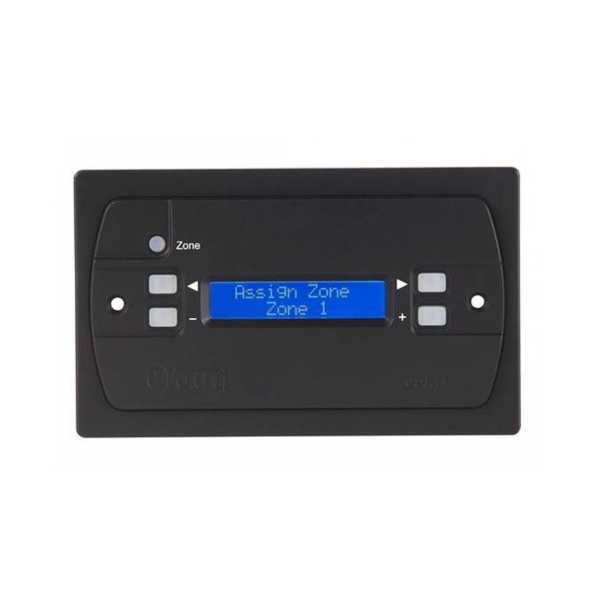

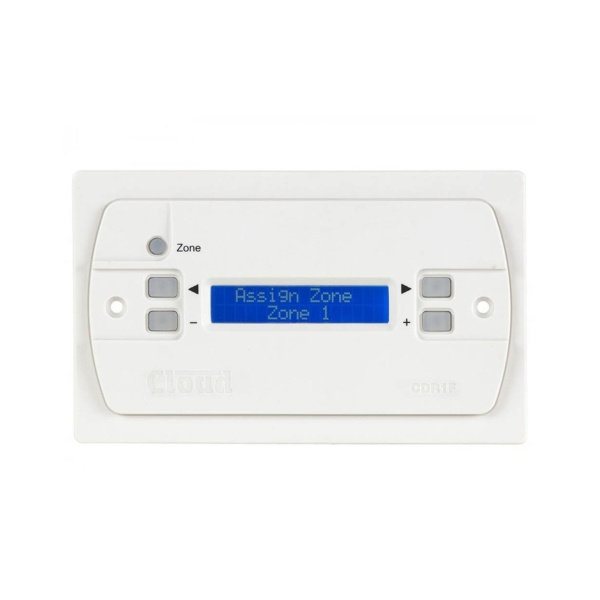

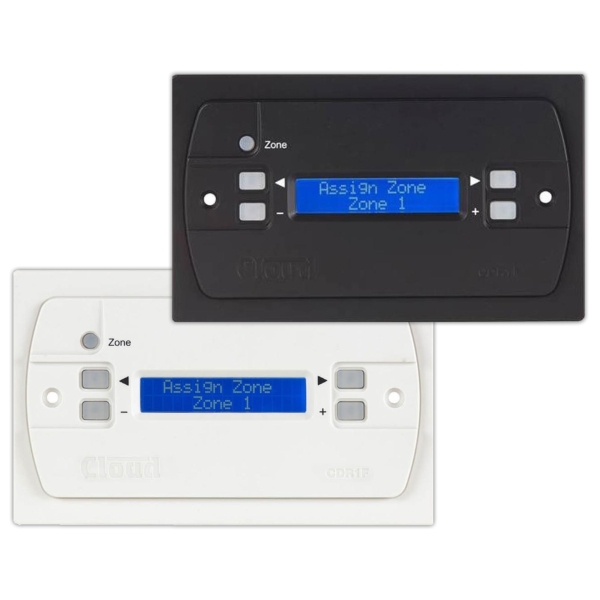

Cloud CDR1F Digital Flat Mount Wall Remote Control, The Cloud CDR1F is the wall mount remote control panel for use with the Cloud DCM-1 Digitally Controlled Mixer. They are fitted with the same alphanumeric display as the DCM-1, menu navigation being by five push-buttons. When installed in one of the DCM-1’s zones, it provides the user and installer with more convenient and practical control of system operation than from the DCM-1’s front panel.

A zone may have one CDR-1 (or CDR1F), more than one, or none at all. Functions include selection of audio source and control of audio level; additionally, any enabled zone groups of which the zone is a member may be activated locally.

The panels allow further local system adjustments and settings to be made through the use of a password protected Engineer Mode, and an Installer Mode, enabled by an internal jumper.

The DCM-1 can support up to 100 CDR-1/1Fs, interconnection being with CAT-5 cable. Units may be daisy-chained at will and/or connected individually back to the DCM-1’s four CDR ports using almost any wiring topology convenient for the installation.

The CDR-1 is designed for surface mounting, and fits to a standard single gang electrical back box. A universal mounting plate supplied with each unit permits the use of UK, US or Australian boxes.

The CDR1F is designed for flush mounting, and fits a dual-gang back box.

The CDR1F is suitable for situations where minimal protrusion from the wall is desirable.

Features

• Enables remote control of Cloud’s DCM-1 Digitally Controlled Mixer

• Simple to install - connects to DCM-1 and other CDR-1/1Fs using standard CAT-5 cable

• Can be interconnected using a wide choice of wiring topologies

• Choice of two mounting styles to suit installation

• Backlit 2-row x 16-character dot matrix alpha-numeric display

• User-accessible functions:
  • Source selection
  • Level control
  • Group enable/disable

• Engineer Mode functions (password-protected):
  • Local zone EQ adjustment

• Installer Mode (enabled by internal jumper):
  • Zone assignment
  • Password setting
  • Display adjustment
  • Inactivity time (time for which display backlight remains lit after a button is pressed)

Specification

Front Panel

• Display 16x2 character BlueWhite LCD
• Input 5 push buttons

Data Connection

• Connectors 2x RJ45 socket
• Protocol CAN Bus
• Maximum length 1km

Power Connection

• Connectors 1x RJ45 in (+ data)
• 1x RJ45 out (+ data)
• 1x 2-way 5mm screw terminal socket
• Consumption 50mA at 12V typical
• Accepted external supplies 12 – 24V DC
• 9 – 17V AC

General Specifications

• Dimensions 149.70 x 90.20 x 39.25mm
• Backbox Dual-gang UK, 47mm deep
• Protrusion once mounted 9mm
• Number of zones controlled 1 + assigned groups
