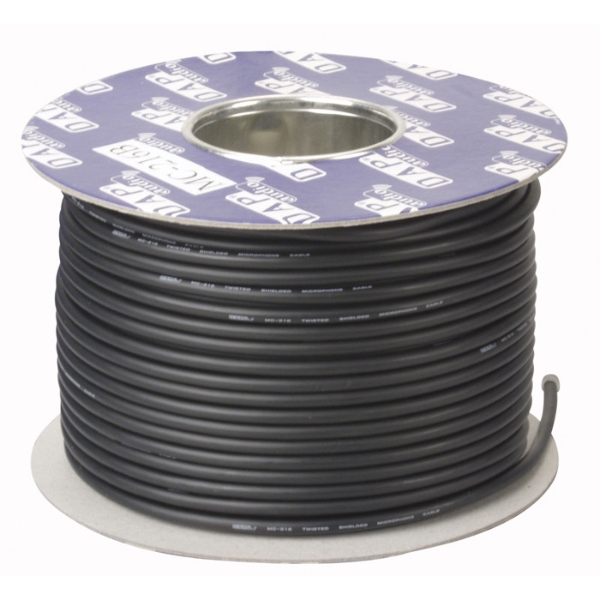

100m Reel DIG-110 AES-EBU, 110 Ohm Digital Cable

100m Reel DIG-110 AES-EBU, 110 Ohm Digital Cable
Ref: JP29131

Price Each £79.85 (£95.82 Including VAT at 20%)

Quantity:

100m Reel DIG-110 AES-EBU, 2 core + screen 110 Ohm Digital Cable.

Specification

Conductor drains Ø mm: OFC 18 x0,10
Conductor insulation: FPE red+white
Conductor insulation Ø in mm: 1,9
Filler material: paper + cotton yarn
1st shield: OFC braided 128x0,12
2nd shield: -
Outer isolation: PVC black+blue
Outer isolation Ø in mm: 6
Conductor resistance: 130 Ohm/Km
Shield resistance: 12.5 Ohm/Km
Capacity Inner conductor: 35 pF/m
Capacity Inner cond Shield / Inner cond: 52 pF/m
Working temperature min / max: -20~60 °C
Working Voltage overflash: 30V
Nom Impedance: 110 Ohm
