FBT DLM26 Digital Loudspeaker Management Processor

FBT DLM26 Digital Loudspeaker Management Processor

FBT DLM26 Digital Loudspeaker Management Processor

Price Each 619.44 Exc VAT or (743.33 Inc VAT at 20%)

Buy 2+ units for 1419.75 Inc VAT. To Do So, Click Here to Register.

Ref: JP54176

<Back

Click Here For PDF User Manual

FBT DLM26 Digital Loudspeaker Management Processor, The FBT DLM-26 is a DSP based 2 input x 6 output, digital loudspeaker management processor, ideally suited for fixed installations and live events. It combines the functions of a multitude of conventional products in a compact 1U unit with extensive PC remote control capabilities. The FBT DLM 26 features superb audio quality with premium hi-end AKM5392 24bit A/D converters and AKM 4396 24bit D/A converters, carefully optimized double precision signal processing coupled with 24bit conversion ensure a dynamic range >110db.

The unit can work in STANDARD MODE or in DCL MODE. The first mode permit to configure the crossover in 2x2 way + SUB, 2x3 way or 6way, the input L, R, L+R are freely assignable to each output.

In DCL mode the unit can be configured in 3ch DCL, 2ch DCL + 2ch standard, 1ch DCL + 4ch standard. DCL mode mean double compressor limiter, each DCL channel have a double band limiter and compressor with assignable LO/HI split frequency. This is an exclusive feature in digital processor and its very useful to protect two way passive filters with no passive attenuation in the crossover between LF woofer and HF driver. With DCL mode is possible to set two different threshold of protection for woofer and driver with the split frequency corresponding to the passive crossover frequency.

Each input has 5 fully configurable filters, a delay of 288.66ms max in step of 6.8us, gain. Each output has 4 fully configurable filters, a delay of 288.66ms max in step of 6.8us, gain, phase, LO-pass/Hi-pass crossover from 6 to 24db/Oct with standard or custom Q, RMS compressor with soft knee and peak limiter.

The 2 input levels are displayed by rows of 6 level LED + 1 clip led, the 6 output levels are displayed by rows of 5 level LED + 1 clip led + 1 Limiter led. The unit has 2 analog inputs, a stereo digital SPDIF input, and 6 analog outputs.

Linking functions between inputs and linking functions between outputs are available.

A function is allowing to have ramps closing the output level on parameter changes, when the unit is used as installation unit; this function can be excluded when the unit is used live and it is necessary to perform small changes to the set parameter...on the fly.

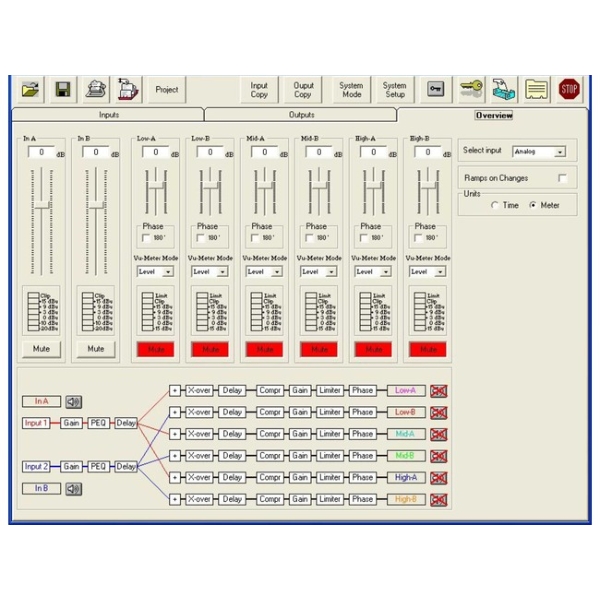

The Pc SW for the remote control via RS485 or USB is allowing to connect in net up to 32 units and is allowing to control full parameters of the processor, to show the phase of the filter setting and to adjust graphically the RMS compressor and the Peak limiter. The comprehensive standard specification also include up to 64 memories with security lockout and two password level settings.

Features

Hi-pass/Lo-pass/Shelvingcustom Qsecond order filters
RMS compressor and PEAK limiter on each output channelwith time constant and algorithm optimized for speaker thermal and mechanical protection while maximizing the output with no audible distortion
Input channel L, R or L + R freely assignable to each output channel
Double Compressor Limiter Mode (DCL)with two band RMS compressor and Peak limiter with adjustable HP / LP split frequency and separate parameter adj. This is an exclusive and very useful feature in general purpose digital processors
ALL PASS first and second order filtersuseful for Cardioid SUB configurations, very precise phase crossover alignment, special pattern control array, alignment between different speakers and systems.

Specification

Inputs / Outputs: XLR balanced +20dBu max level
Total memories: 64
THD+N: 0.001% at 1kHz 0dBu
S/N: >110dB
Frequency Response: 20Hz and 20kHz @ -0.5dB
A/D and D/A Resolution: 24bits, 96 bits Process Resolution

Filters (5 each in/out)
Type: Peaking EQ, Hi-Shelving 1/2/Q, Lo-Shelving 1/2/Q, HPF 1/2/Q, LPF 1/2/Q, All Pass 1/2 , Band pass, Notch
Orders: symmetrical Bell or High/Low Shelving up to second order
Filter gain: -15dB to +15dB by 0.5dB resolution steps
Centre frequency: selectable with a 1/24th of octave resolution steps from 20Hz up to 20kHz
Filter Q/BW: Q from 0.05 up to 3 by 0.05 resolution steps

Compressors
Threshold: -10 to +20dBu
Ratio: 1:1 to 32:1
Soft Knee: 0 to 100%
Attack Time: 10ms to 4s
Release Time: 0.1 to 3s

Limiters
Threshold: -10 to +20dBu
Attack time: 2ms to 50ms
Release Time: 20ms to 200ms

High pass and Low Pass Filters
HPF: 1st to 4th Order (Butterworth, Linkwitz or Bessel -24dB/Oct), Custom Q
LPF 1st order to 4th Order (Butterworth, Linkwitz or Bessel -24dB/Oct), Custom Q
Filters setting step: 1/24th of octave

Delay & Gain
Maximum Delay: 288.66ms by 6.8us increment/decrement step, on each Input and Output channel

Physical
Net Dimensions (WxHxD): 480x40x220 mm- 19 (1U rack) / 18.8x1.5x8 inch - 19 (1U rack)
Net Weight: 2.8 Kg / 6.1 lb
Transport Dimensions (WxHxD): 530x100x310 mm / 20.8x3.9x12.2 inch
Transport Weight: 3.9 Kg / 8.6 lb

Power Requirements
Voltage 90 - 240Vac 50/60Hz
Power 30VA
