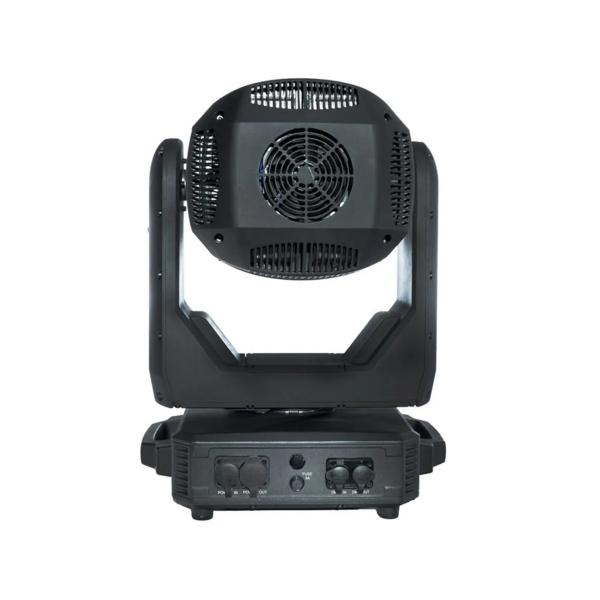

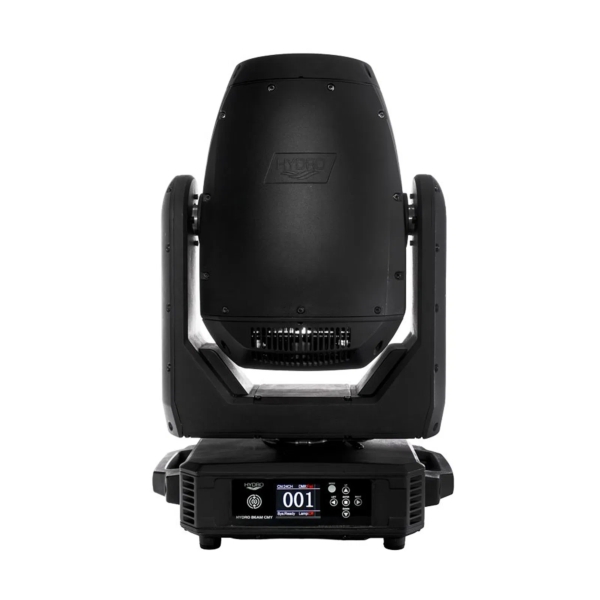

ADJ Hydro Beam CMY Discharge Moving Head - IP65

Buy 2+ units for £4764.51 Inc VAT. To Do So, Click Here to Register.

Price Each £2,078.75 (£2,494.50 Including VAT at 20%)

REF: JP113449

Quantity:

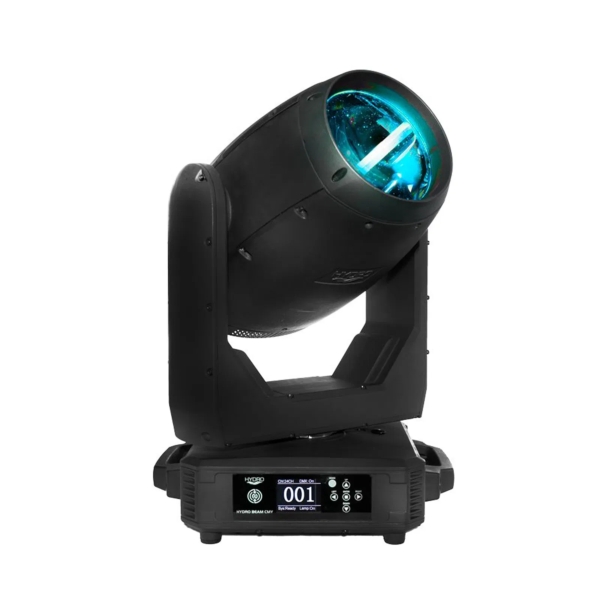

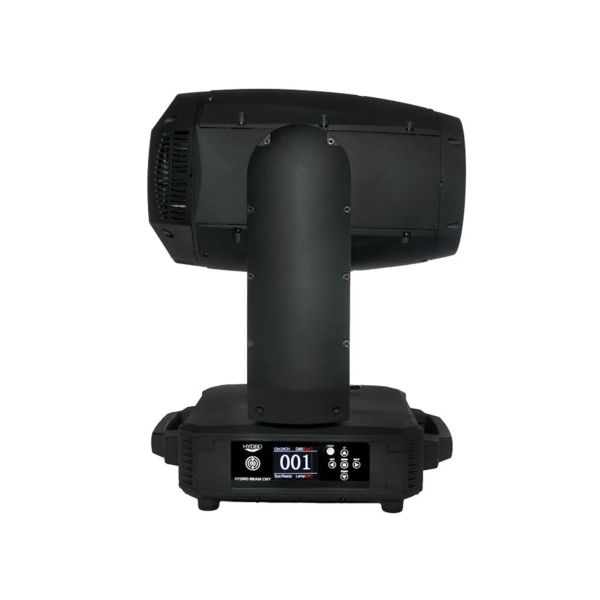

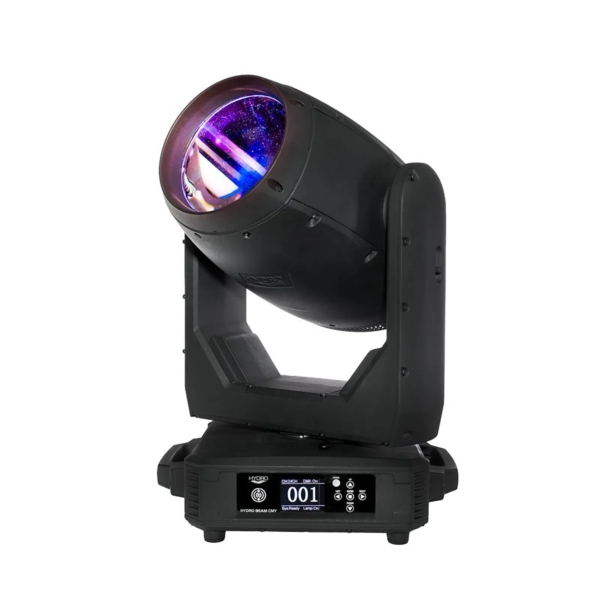

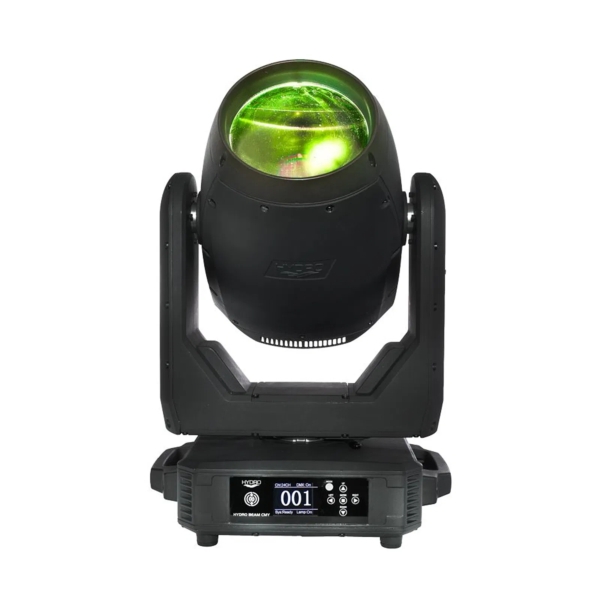

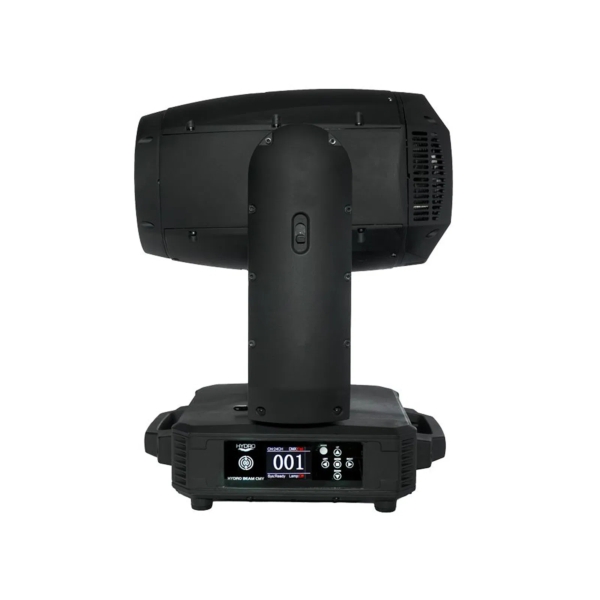

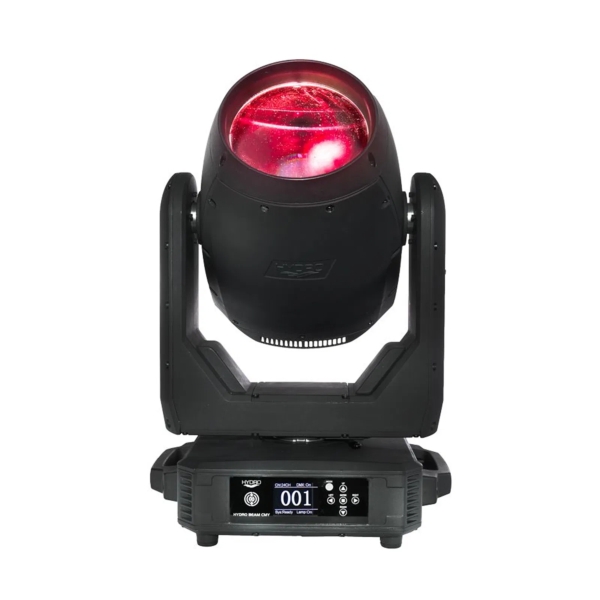

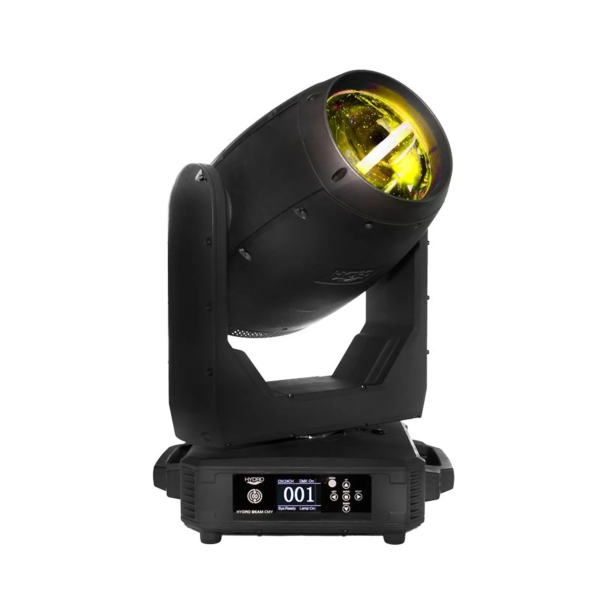

ADJ Hydro Beam CMY Discharge Moving Head - IP65

The ADJ Hydro Beam CMY Discharge Moving Head is a professional IP65 CMY beam moving head built for outdoor shows, festival stages and large-format events where long-throw aerial effects are essential. Its 310W discharge lamp delivers an extremely tight 2-degree beam, producing crisp mid-air looks even in challenging outdoor conditions.

With full CMY colour mixing, 14 colours including CTO & CTB, and 17 static gobos, the fixture gives lighting designers a huge range of creative options. Two rotating prisms (16-facet circular and 6-facet linear) can be used independently or combined for big volumetric effects, while the frost filter allows quick changes into a soft-edged wash.

For touring applications, the Hydro Beam CMY features fast 3-phase pan/tilt motors, robust IP65 sealing, and flexible control via DMX, RDM and Aria X2 wireless DMX. Built for reliability and weather protection, it’s a strong choice for rental houses, outdoor production companies and permanent installations needing a high-output beam that can survive the toughest environments.

Click Here for Printer Friendly Version

ADJ Hydro Beam CMY Discharge Moving Head Features
\n
- CMY Color Mixing\n
- On-Board Wireless DMX\n
- Motorized Focus + 16-bit Fine Focus\n
- 2° Beam Angle\n
- Frost Filter to Create Wash Effect\n
- High Quality Glass Lens\n
- 2 Rotating Prisms\n
- 0–100% Smooth Dimming\n
- Pan/Tilt Locks\n
- Various Strobe Speeds\n
- OTA, Wireless, Firmware Updates\n
- Fan Cooled

ADJ Hydro Beam CMY Discharge Moving Head Specifications

\nSource:\n
- OSRAM Sirius HRI 310W PRO Discharge Lamp (6,000 hr.)\n
- Color Temperature: 7850K (+/- 500K)\n
- CRI: 86 (+/- 5)

\nColour Wheel:\n
- 14 Dichroic Colors + White (Includes CTO (3200K), CTB (9000K) & UV)\n
- Indexable Color Wheel for Split Colors\n
- Separate Multi-Color Effect

\nGobo Wheel:\n
- 17 Static GOBOs + Open (4 GOBOs are Beam Reducers)\n
- GOBO Shake Effect

\nPrism:\n
- 2 Rotating Prisms\n
- 16-Facet Circular and 6-Facet Linear Prisms\n
- Prisms Overlay

\nControl:\n
- Protocols: DMX512 & RDM\n
- Control Mode: DMX512 & Manual (On-board Controls)\n
- 2 DMX Channel Modes: 20 / 24 Channels\n
- Aria X2 Wireless Management / DMX System\n
- Color LCD Display with 4-Button Function Menu\n
- 0–100% Smooth Dimming\n
- Various Strobe Speeds\n
- With Wired Digital Communication Network

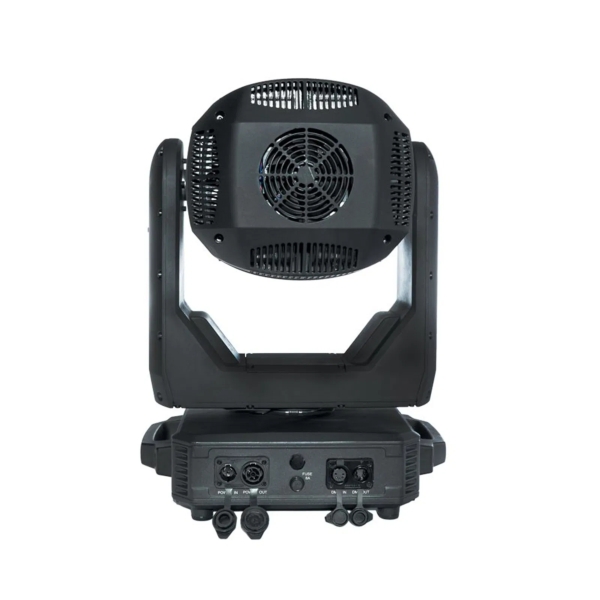

\nConnections:\n
- DMX Connections: Seetronic IP65 Rated, 5-pin DMX In/Out (Data Link Max: 32 Fixtures)\n
- Power Connections: IP65 Locking Power In/Out Connections to Daisy Chain Power

\nPan / Tilt:\n
- Pan: 540° (Plus 16-bit Fine Pan)\n
- Tilt: 270° (Plus 16-bit Fine Tilt)\n
- 3-Phase, High-Speed Pan/Tilt Motors

\nElectrical:\n
- Multi-Voltage Operation: 100–240V, 50/60Hz\n
- Max Power Consumption: 430W (@230V)\n
- Fuse Protected: 6.5A

\nPhysical:\n
- Dimensions: 381.6 x 284.5 x 568.5mm\n
- Weight: 25.6kg

Further Product Information Below

ADJ Hydro Beam CMY Data Sheet (PDF)

ADJ Hydro Beam CMY Discharge Moving Head Supplied With
\n
- 2 x Omega Brackets (107 Type)\n
- 2m Outdoor Locking 14AWG Power Cord
