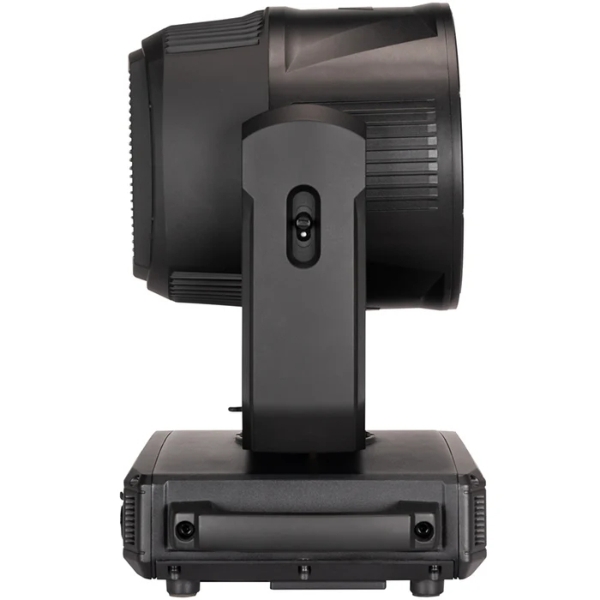

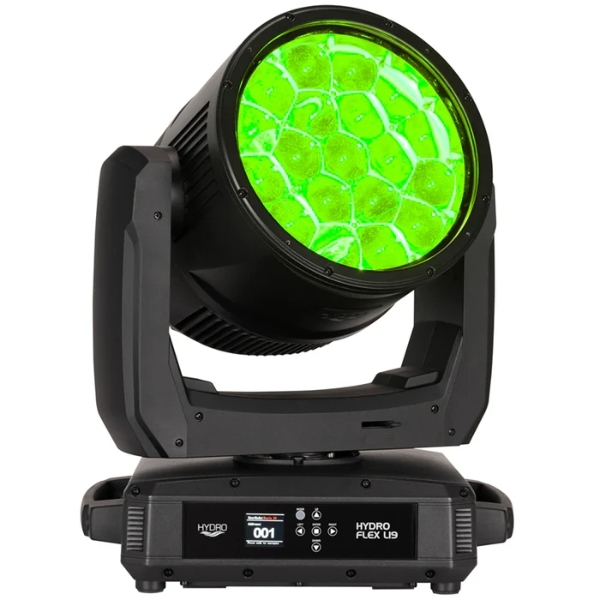

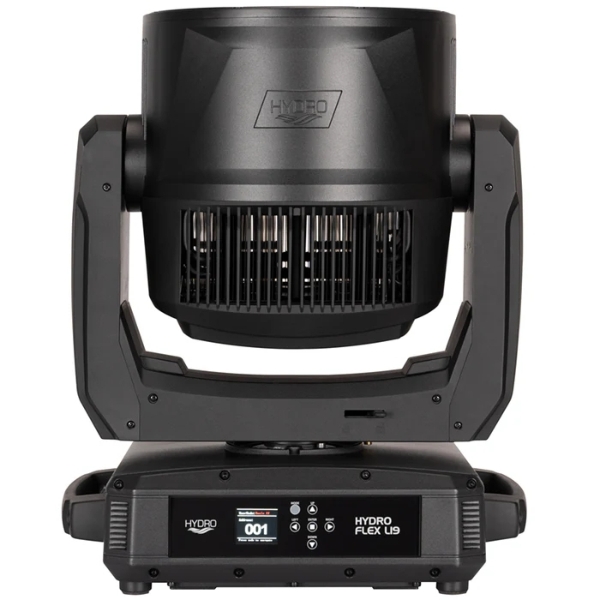

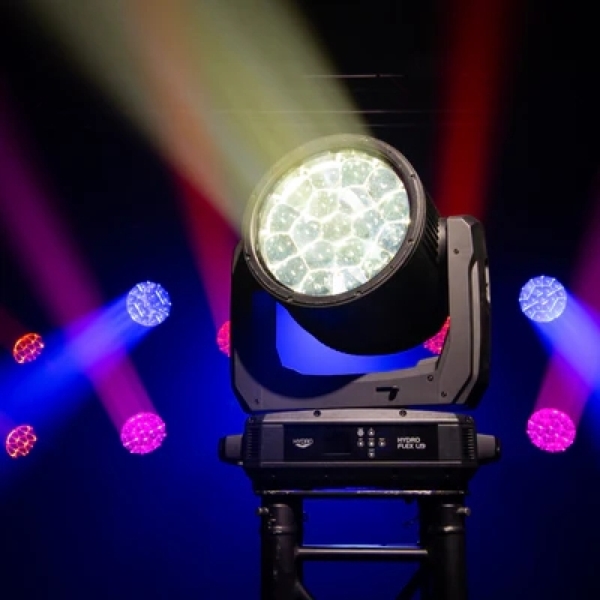

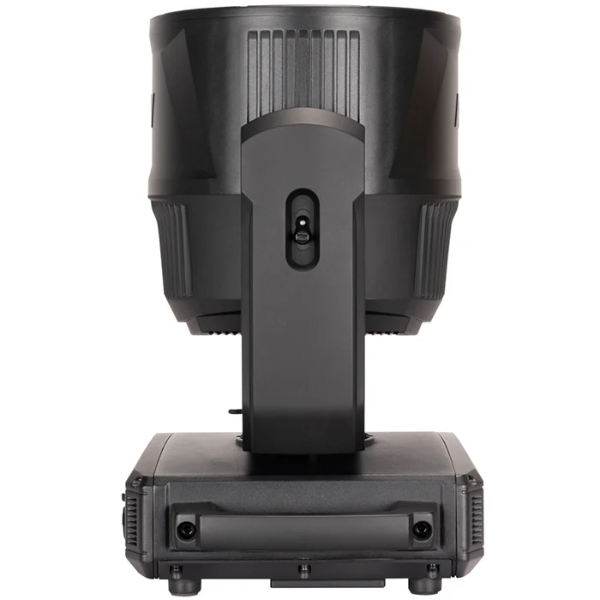

ADJ Hydro Flex L19 RGBL LED Moving Head, 19x 60W - IP65

ADJ Hydro Flex L19 RGBL LED Moving Head Features

- Moving Light Pixel Wash
- Individual Pixel Control
- Built-In Pixel Effect Programs
- Aria X2 Wireless Management System
- Electronic Strobe / Dimmer
- Pan/Tilt: 540/630 x 243
- Motorized Zoom
- Beam Angle: 5° ~ 38°
- Field Angle: 8° ~ 56°
- Colour Calibrated Pixels so units match from batch to batch
- Virtual CMY DMX Control Modes
- Virtual Foreground and Background Colour Wheel Control
- Selectable LED Refresh Rates (900 Hz~25K Hz)
- Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
- 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
- 0-100% smooth dimming
- Fan Cooled

ADJ Hydro Flex L19 RGBL LED Moving Head Specifications

Source:
- 19x 60-Watt RGBL LEDs (50,000 hr.)
- CRI: 84.2
- TM30 Rf: 84.7
- TM30 Rg: 99.8
- Colour Temperature: 2700K ~ 10,000K
- 54,400 lux / 4.3° beam @ 16' (5m)
- 2,090 lux / 28.3° beam @ 16' (5m)
- Lumens: 17,000 (Zoomed Out, Full On)

Colours:
- 19x RGBL LEDs (Red, Green, Blue and Lime)
- Virtual CMY DMX Control Modes
- Virtual Foreground and Background Colour Wheel Control
- Built-In Colour Macros

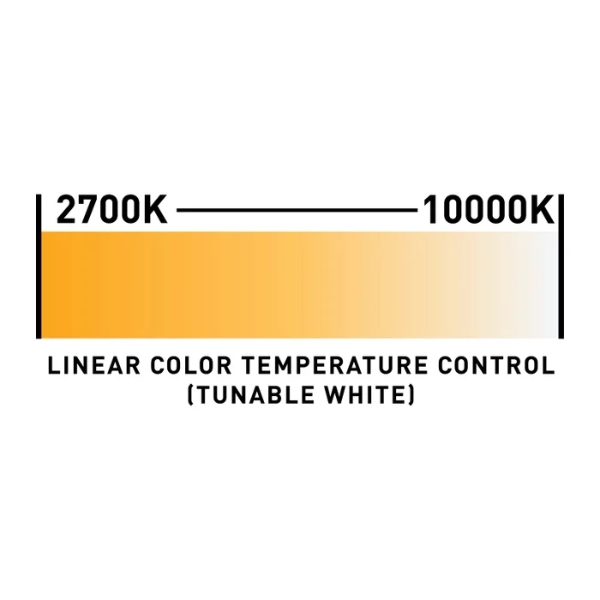

- 2,700K ~ 10,000K Linear White Colour Temperature Control
- Colour Temperature Presets: 2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000 and 10,000K

Control:
- 6 DMX Modes (22, 31, 40, 104, Standard CMY 31, Extended CMY 34)
- Colour LCD display with 6-button function menu
- Control: DMX512, ArtNet, sACN, KlingNet and Aria X2 Wireless Management System
- Built-In Effect Pixel Programs with Speed and Fade Control
- RDM (Remote Device Management) compliant
- With Wired Digital Communication Network

Pan/Tilt:
- Pan: 540/630 degrees
- Tilt: 243 degrees
- 16-Bit Fine Pan & Tilt
- Pan & Tilt Locks

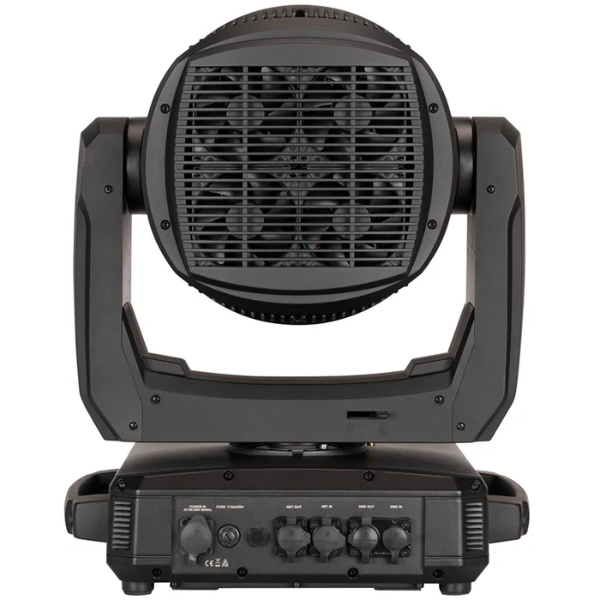

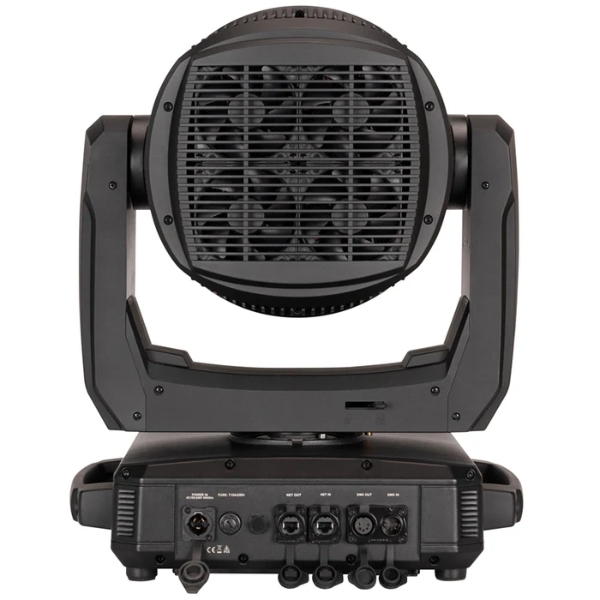

Connections:
- DMX Connections: IP65-rated Locking In/Out XLR Sockets
- IP65-rated Locking In/Out RJ45 Network Sockets
- Power Connections: IP65-rated Locking Input Power Socket

Electrical:
- Multi-voltage operation: 100-240V, 50/60Hz
- Max power consumption: 1350W (6.38Amps) @ 220V

Dimensions & Weight:
- Dimensions (L x W x H): 318 x 433 x 517 mm
- Weight: 27.6 kg

Approvals / Rating:
- IP65 with C4 Coated Exterior and conformal coated PCB's

Further Product Information Below

ADJ Hydro Flex L19 Manual (PDF)

ADJ Hydro Flex L19 DMX Chart (PDF)

ADJ Hydro Flex L19 RGBL LED Moving Head Supplied With

- 180mm Omega Brackets (2x)
- 1x 1.83M, IP65-rated locking power cable
- Safety Cable
