ADJ UC-IR24

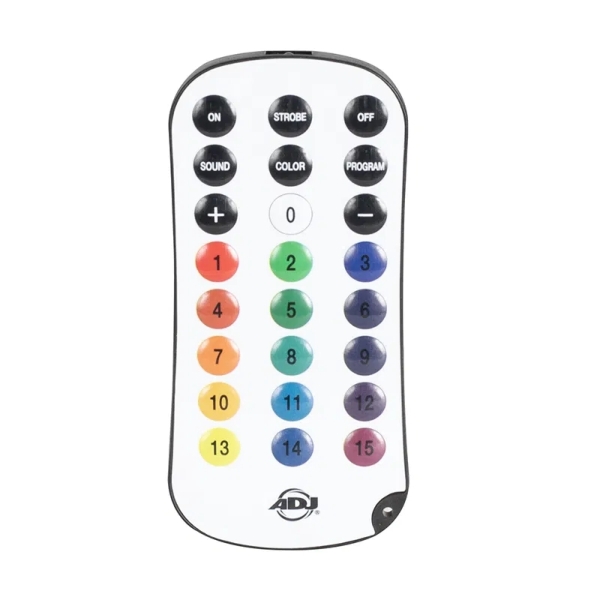

ADJ UC-IR24 Features

- 1. ON and OFF buttons: When the ON button is pressed, the lighting fixture shall return to its last running state. When the OFF button is pressed, the unit shall go into stand by mode in a blackout state.
- 2. STROBE: When the strobe button is pressed, the unit shall strobe the last set colour or program. The strobe rate can be adjustedby repeatedly pressing the + / - buttons. Pressing buttons 0-15, while the strobe function is active, will strobe the colour associated with the button that is pressed.
- 3. SOUND: When the sound button is pressed, the unit shall trigger the last selected program steps based on the primary units microphone. The microphone sensitivity can then be adjusted to be more or less sensitive with the +/- buttons. You can repeatedly press the +/-buttons to increase or decrease by one level or press and hold the +/- buttons to quickly increase or decrease sensitivity.
- 4. COLOR: When the colour button is pressed, preset static colours can be selected by pressing buttons 0-15. The intensity for the set colour can then be adjusted with the +/- buttons. You can repeatedly press the +/- buttons to increase or decrease by one level or press and hold the +/- buttons to quickly increase or decrease intensity.
- 5. PROGRAM: When the program button is pressed, internal programs can be selected by pressing buttons 0-15 (Note: the fixture being controlled must support 15 programs for all buttons to be functional). The selected program run speed can be adjusted with the+/- buttons. You can repeatedly press the +/- buttons to increase or decrease by one level or press and hold the +/- buttons to quickly increase or decrease the set program speed.
- 6. + and - buttons: These buttons are used to increase/decrease strobe rate when the STROBE button is active, increase/decrease mic sensitivity when the SOUND button is active, increase/decrease brightness intensity when the COLOR button is active, and increase/decrease program run speed when the PROGRAM button is active. The +/- buttons can be repeatedly pressed to increase or decrease by one level or pressed and held to quickly adjust your strobe, sound sensitivity, brightness intensity or program speed settings.
- 7. 0-15 buttons: These buttons are used to select preset strobe speeds when the STROBE button is active, to select preset static colours when the COLOR button is active, and to select internal programs when the PROGRAM button is active. Colours stored in buttons 0-15 can be edited from the units menu if desired by the user.

ADJ UC-IR24 Specifications

Compatible Models:
- Mirage Q IP (Chrome and Black)
- Element H IP

Please Note: Units delivered with the old style IR remote will require a firmware update!

Battery Specifications:
- Type: Lithium battery (CR2025)
- Energy: 0.45Wh
- Weight: 2.5g
- Voltage: 3V
- Capacity: 150mAh
- Total cells: 1
