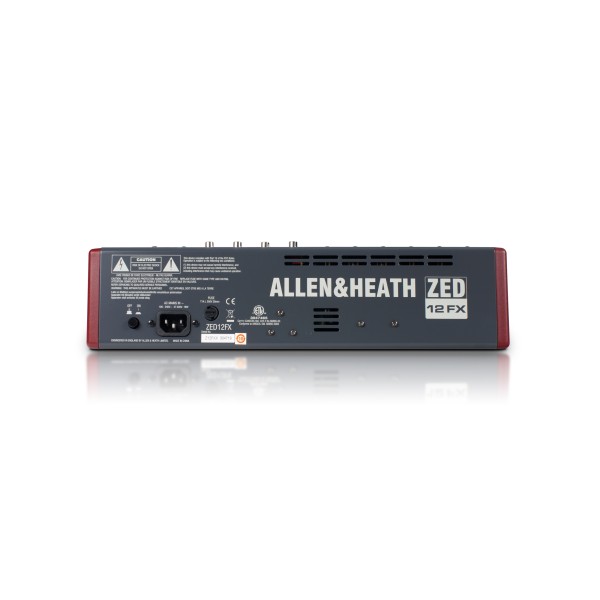

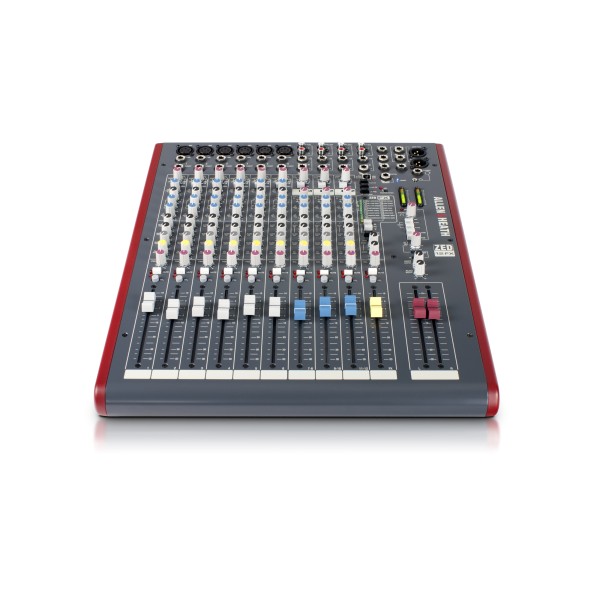

Allen & Heath ZED-12FX Analogue Mixer with FX

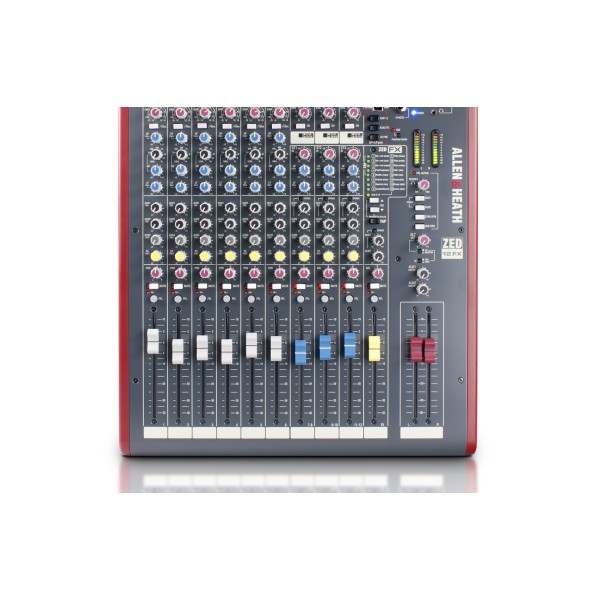

Allen & Heath ZED-12FX Analogue Mixer with FX Features

- 6 mono channels
- 3 stereo channels with 2-band EQ and inputs for extra sources
- 16 internal time-delay effects
- Neutrik mic XLR
- Neutrik ¼ inch jacks
- Channel insert
- Super wide gain 'DuoPre' mic line input
- 3 band EQ with MusiQ
- 2 pre-fade Aux sends
- 1 post-fade Aux send
- 1 internal FX send
- Illuminated mute
- Sound image pan
- Illuminated PFL & peak warning indicator
- ALPS 100mm faders
- Stereo returns & playback
- All inputs with level control
- 12 bar meters
- Mono/stereo function on auxes 1&2
- Monitor output section
- Alt stereo output source
- Configurable USB stereo audio in/out
- Rack ears available

Allen & Heath ZED-12FX Analogue Mixer with FX Specifications

Operating Levels - Inputs
- Mono channel (XLR) Input: +6 to -63dBu for nominal (+17dBu in max)
- Mono channel Line Input (Jack socket): +10 to -26dBu (+30dBu maximum)
- Insert point (TRS Jack socket): 0dBu nominal +21dBu maximum
- Stereo Input (Jack sockets): 0dBu nominal (control = Off to +10dB)
- Stereo input (phono sockets): 0dBu nominal (control = Off to +10dB)

Operating Levels - Outputs
- L, R and Mono Outputs (LandR XLR, Mono Jack): 0dBu nominal. +21dBu maximum
- Aux Outputs (Jack sockets): 0dBu nominal. +21dBu maximum
- Alt Outputs (phono sockets): 0dBu nominal. +21dBu maximum
- Rec Outputs (phono sockets): 0dBu nominal. +21dBu maximum

Frequency Response
- Mic in to Mix L/R Out, 30dB gain: +0.5/-1dB 20Hz to 20kHz
- Line in to Mix L/R Out, 0dB gain: +0.5/-1dB 10Hz to 30kHz
- Stereo in to Mix L/R Out: +0.5/-1dB 10Hz to 30kHz

THD+n
- Mic in to Mix L/R Out, 0dB gain 1kHz +10dBu out: 0.004%
- Mic in to Mix L/R Out, 30dB gain 1kHz: 0.014%
- Line in to Mix L/R out 0dB gain 0dBu 1kHz: 0.005%
- Stereo in to Mix L/R out 0dB gain +10dBu 1kHz: 0.003%

Headroom
- Analogue Headroom from nominal (0Vu): 21dB
- USB in and out headroom from nominal (0Vu): 14dB

Noise
- Mic Pre EIN @ max gain 150R input Z 22-22kHz :-127dBu
- Mix L/R out, L/R faders = 0, 22-22kHz: -88dBu

USB Audio CODEC (Coder/Decoder)
- USB Audio In/Out: USB 1.1 compliant 16bit
- Sample Rate: 32, 44.1, or 48kHz
