Allen & Heath ZED60-14FX Analogue Mixer with FX

Name: Allen & Heath ZED60-14FX Analogue Mixer with FX
Brand: Allen & Heath
SKU: JP35041
Price: 553.85 GBP
Availability: InStock

Price Each £461.54 (£553.85 Including VAT at 20%)

REF: JP35041

Quantity:

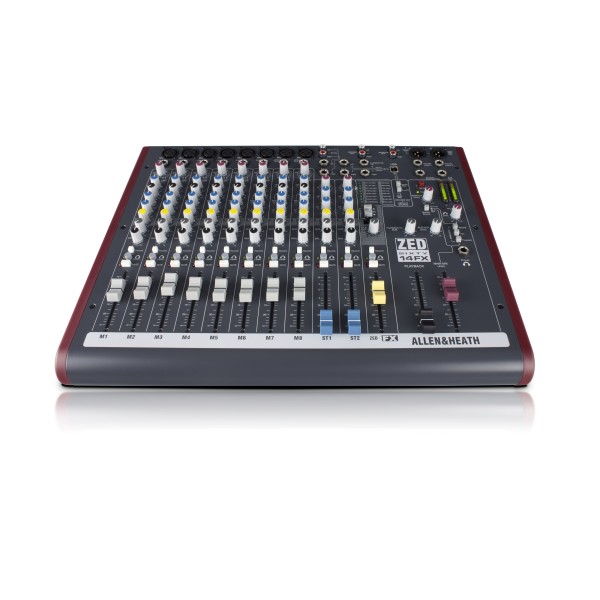

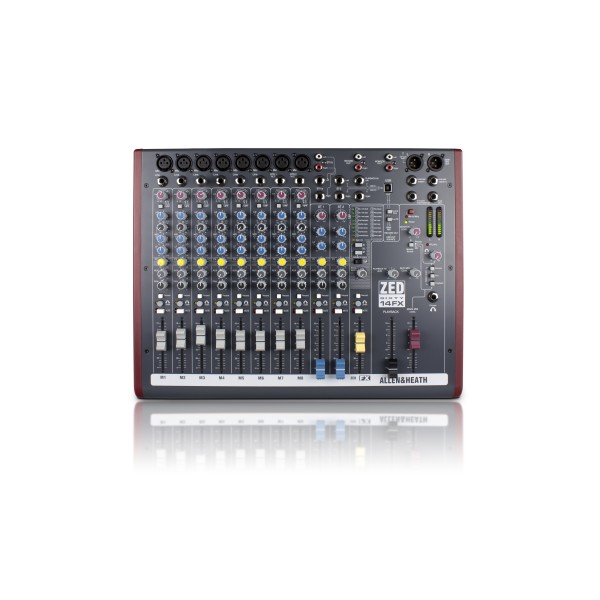

Allen & Heath ZED60-14FX Analogue Mixer with FX

The Allen & Heath ZED60-14FX Analogue Mixer with FX is a compact, portable mixer that is ideal for small bands. This mixer is a guitarist's dream. Two of the 8 mono channels have high impedance jack inputs that can take a normal line level or a low level input from a guitar pickup, so guitars can be plugged straight into the mixer without the need for DI boxes. These inputs have been crafted to recreate the sound of a classic tube preamp in a combo or head amp for incredible definition and warmth. Two stereo inputs are provided for MP3/CD players or keyboards.
ZED60-14FX comes with configurable USB audio in/out, making it easy to capture a stereo recording at the gig or in the studio. The mixer is equipped with professional XLR main stereo outputs, a flexible monitoring section with headphone and speaker feed outputs, and 16 stunning FX.
Most important of all, ZED60-14FX lives up to the audio and build quality standards that have made Allen & Heath one of the most trusted names in professional audio for more than 40 years.

Click Here for Printer Friendly Version

Allen & Heath ZED60-14FX Analogue Mixer with FX Features

- 8 mic/line inputs, 2 with Class A FET high impedance
- 60mm professional quality faders
- Responsive 3-band, swept mid EQ with MusiQ
- Configurable USB stereo audio in/out
- 1 pre-fade Aux send
- 1 FX send
- 2 stereo inputs
- Separate 2-track record outputs
- 16 Internal Effects
- XLR main stereo outputs with inserts
- Comprehensive monitoring
- 48V microphone phantom power
- DI level switching with Gain Boost
- Neutrik XLRs and ¼ inch jacks

Allen & Heath ZED60-14FX Analogue Mixer with FX Specifications

Operating Levels - Inputs
-Mono channel (XLR) Input: -10 to -60dBu for nominal (+11dBu in max)
-Mono channel Line Input (Jack socket): +10 to -40dBu (+31dBu maximum)
-Stereo Input (Jack or phono sockets): 0dBu nominal (control = Off to +15dB)

Operating Levels - Outputs
-L/R Outputs (XLR): 0dBu nominal. +21dBu maximum
-Aux and FX Outputs (Jack sockets): 0dBu nominal. +21dBu maximum
-Record and Monitor Outputs (phono sockets): 0dBu nominal. +21dBu maximum

Frequency Response
-Mic in to Mix L/R Out, 30dB gain: +0.5/-1dB 10Hz to 30kHz
-Line in to Mix L/R Out, 0dB gain: +0.5/-1dB 10Hz to 30kHz
-Stereo in to Mix L/R Out: +0.5/-1dB 10Hz to 30kHz

THD+n
-Mic in to Mix L/R Out, 10dB gain 1kHz +10dBu out: 0.002%
-Mic in to Mix L/R Out, 30dB gain 1kHz: 0.01%
-Line in to Mix L/R out 0dB gain 0dBu 1kHz: 0.003%
-Stereo in to Mix L/R out 0dB gain +10dBu 1kHz: 0.002%
-Gtr Input to Mix L/R Out, 0dBu, Boost OUT: 0.015%
-Gtr Input to Mix L/R Out, 0dBu, Boost IN: 2% Second Harmonic

-Headroom
-Analogue Headroom from nominal (0Vu): 21dB
-USB in and out headroom from nominal (0Vu): 14dB

Noise
-Mic Pre EIN @ max gain 150R input Z 22-22kHz: -127dBu
-Mix L/R out, L/R faders = 0, Levels min, 22-22kHz: -96dBu
-Mix L/R out, L/R faders = 0, Levels min, 22-22kHz: -96dBu

USB Audio CODEC (Coder/Decoder)
-USB Audio In/Out: USB 1.1 compliant 16bit
-Sample Rate: 32, 44.1, or 48kHz

Further Product Information Below

Allen & Heath ZED60-14FX/240x Manual (PDF)

Allen & Heath ZED Series Brochure (PDF)
