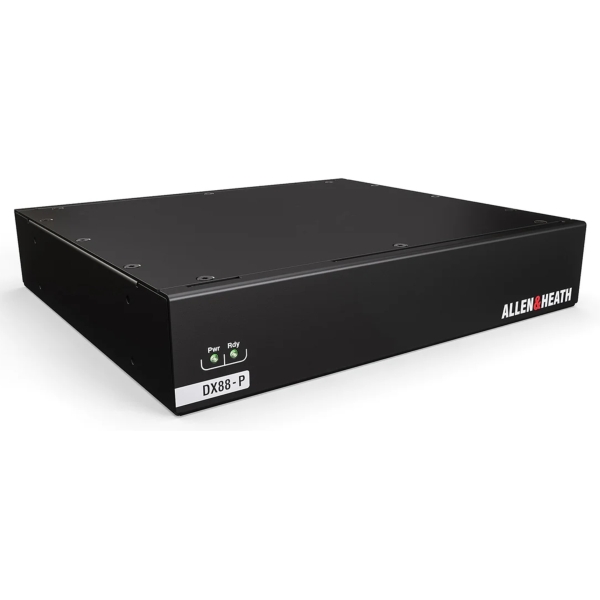

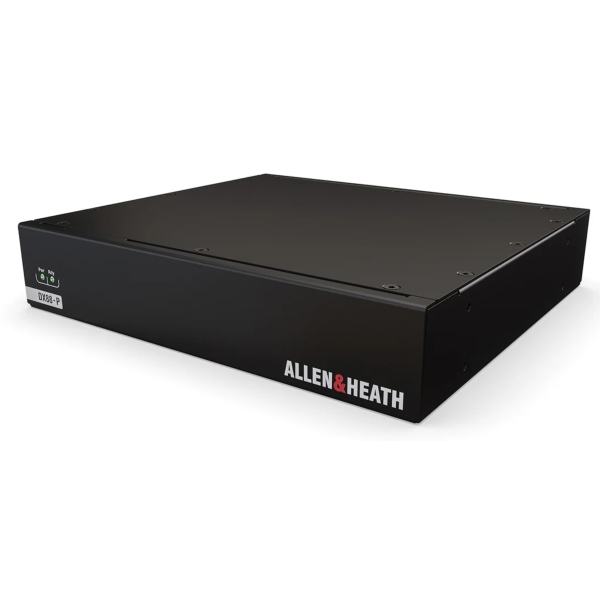

Allen & Heath DX88-P Fixed Install Expander for AHM, SQ, Avantis & dLive

Allen & Heath DX88-P Fixed Install Expander Features

- Compatible with AHM, SQ, Avantis and dLive systems

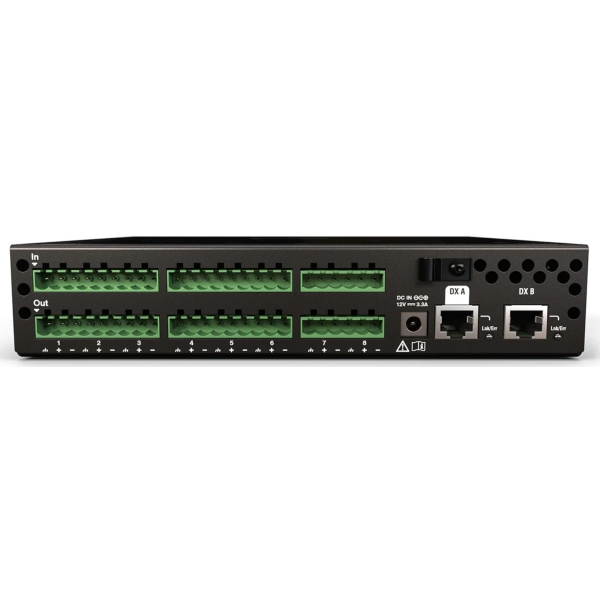

- 8 Phoenix/Euroblock Inputs with recallable 5-60dB gain, Phantom power and 20dB PAD
- 8 Phoenix/Euroblock Outputs
- Cascade mode
- Multiple DX88-P can be added to a system (up to 8 units on a single DX Hub)
- Plug and Play - no IP addressing required
- Compatible with CAT5e (or higher) cables of up to 100m

Allen & Heath DX88-P Fixed Install Expander Specifications

Inputs:
- Mic/Line Inputs: Balanced Phoenix, +48V phantom power
- Mic/Line: Preamp Fully recallable
- Input Sensitivity: -60 to +15dBu
- Analogue Gain: +5 to +60dB, 1dB steps
- Pad: -20dB Active PAD
- Maximum Input Level: +30dBu (PAD in)
- Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
- Mic EIN: -127dB with 150Ω source

Outputs:
- Output Impedance: <75Ω
- Nominal Output: +4dBu = 0dB meter reading
- Maximum Output Level: +21dBu
- Residual Output Noise:
  - -92dBu (muted, 20-20kHz)
  - -90dBu (muted, 20-40kHz)

- Operating Temperature: 0 deg C to 40 deg C (32 deg F to 104 deg F)
- Sample Rate: 96kHz
- Power: 12V DC via external PSU, 3.3A max, 39.6W max

Physical:
- Dimensions (W x H x D): 216.5 x 42.8 x 195.4 mm
- Weight: 1.51 kg

Further Product Information Below

Allen & Heath DX88-P Quick Reference Guide (PDF)

Allen & Heath DX88-P Data Sheet (PDF)

Allen & Heath DX-Series Brochure (PDF)

Allen & Heath DX88-P Fixed Install Expander Compatibility

- SQ
- AHM
- Avantis
- dLive
