Allen & Heath ME-500 Personal Monitoring System for SQ, QU, GLD, Avantis & dLive

Name: Allen & Heath ME-500 Personal Monitoring System for SQ, QU, GLD, Avantis & dLive
Brand: Allen & Heath
Price: 509.18 GBP
Availability: InStock

Price Each £424.32 (£509.18 Including VAT at 20%)

REF: JP112205

Quantity:

Allen & Heath ME-500 Personal Monitoring System for SQ, QU, GLD, Avantis & dLive

The Allen & Heath ME-500 Personal Monitoring System is a powerful walk-up-and-mix solution that's quick to set up and easy for just about anyone to learn in moments. The ME-500 personal mixer's intuitive hands-on controls and crisp visual display make it easy for musicians to quickly build and control their own monitor mixes. With plug 'n' play setup and self-sufficient musicians, ME-500 is also a massive time-saver for the audio engineer.

Click Here for Printer Friendly Version

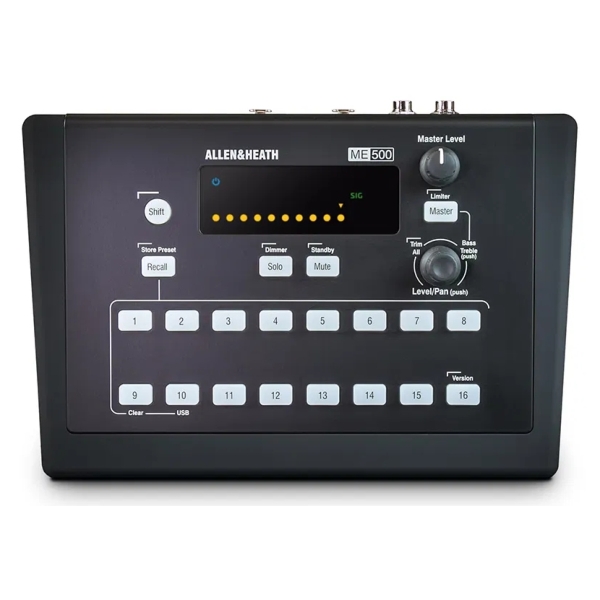

Allen & Heath ME-500 Personal Monitoring System Features

- 16 Mono / stereo inputs with level and pan control
- Master 2 band EQ and Limiter
- Automatic key assignment
- 8 User presets
- 3.5mm and ¼-inch headphone outputs
- Solo and Mute keys
- Mains or PoE powered
- Daisy chain or use standard PoE Ethernet hubs

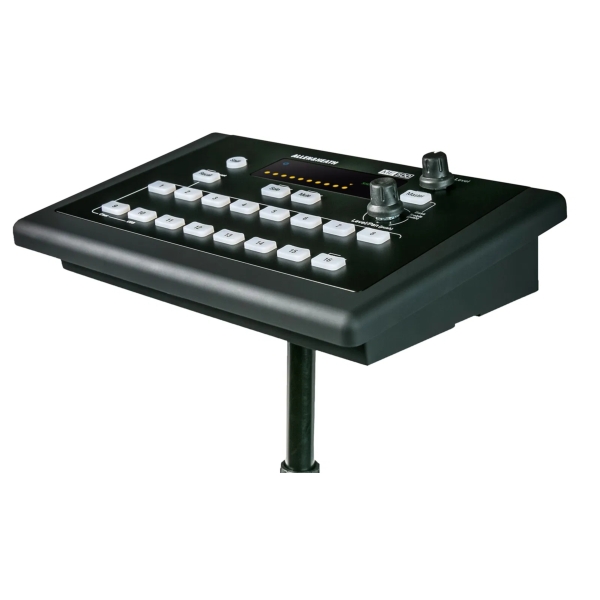

- Mic stand bracket + headphone hanger sold separately

Allen & Heath ME-500 Personal Monitoring System Specifications

- Frequency Response: 10Hz to 20kHz (+0/-1dB)
- AD/DA Conversion: 24-bit Delta/Sigma, 48kHz
- Residual Output Noise: -95dBu
- PoE Requirements: 802.3af (15.4W at source) or 802.at (25.5W at source)
- Headphone Out:
- 300mW + 300mW into 100Ω load
- Max: +21dBu
- External PSU: IN: 100-240V AC , 50/60Hz / OUT: 12V DC , 1.25A
- PoE Requirement: 10W (requires 15W from PoE hub)
- Dimensions (W x H x D): 230 x 70 x 160 mm
- Weight: 1.1 kg

Further Product Information Below

Allen & Heath ME-500 Manual (PDF)

Allen & Heath ME-500 Data Sheet (PDF)

Allen & Heath ME-500 Technical Drawing (PDF)

Allen & Heath ME-500 Personal Monitoring System Compatibility

- SQ
- QU
- GLD
- Avantis
- dLive
