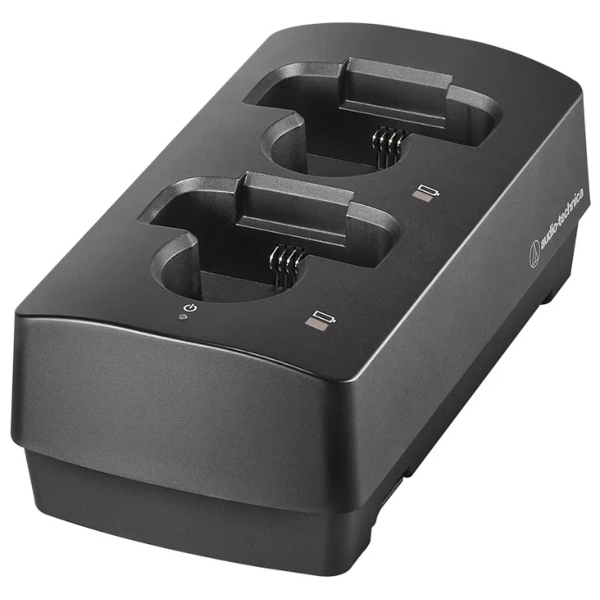

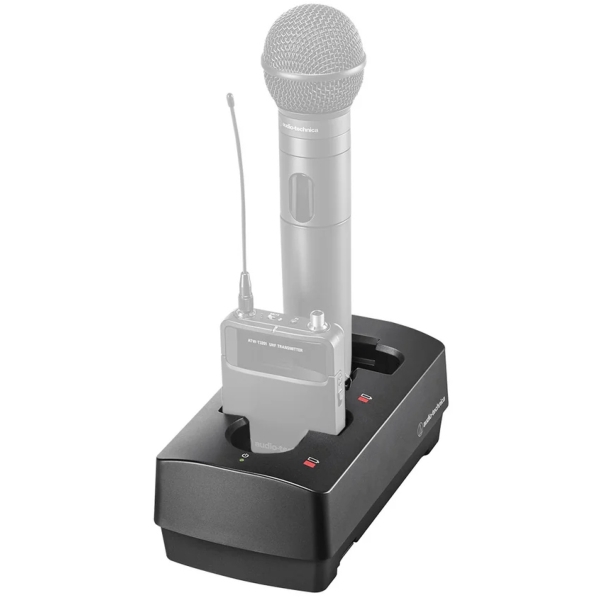

Audio-Technica ATW-CHG3Na Networked 2-Bay Charging Unit for System 20 PRO and 3000 Series

Audio-Technica ATW-CHG3Na Features

- Two-bay charging station for use with for use with 3000 Series transmitters, 3000 Series
- IEM receiver, and System 20 PRO transmitters
- Charges NiMH batteries (not included) while they are housed within a transmitter
- Automatically shuts off if alkaline or damaged batteries are detected
- Indicator LEDs for easy monitoring of power and charging status
- Up to five ATW-CHG3NA/ATW-CHG3A charging stations can be linked and powered by a single power supply (using AT8687 link kit and AD-SA1230XA AC adapter, sold separately)
- ATW-CHG3NA connects to a network (via standard Ethernet cable), allowing the charging status of all transmitters in linked stations (both ATW-CHG3NA and ATW-CHG3A) to be monitored through the dedicated Audio-Technica app or third-party software
- Transmitters power off automatically when placed in the charging station and power on automatically when removed
- PSU Sold Separately

Audio-Technica ATW-CHG3Na Specifications

- Power Requirements: 12V DC 3.0 A
- Charging Output: 3 .6V DC 500 mA (x2)
- Power Consumption: 5.3 W (when 2 transmitters are charging) 27.8 W (when CHG3NA and four CHG3A units are connected and 10 transmitters are charging)
- Charging Time: Approx. 6.5 hours (1,900 mAh rechargeable battery) Depending on battery type and use pattern.
- Operating Temperature Range: 0° C to 40° C (32° F to 104° F)
- Dimensions: 185 mm (7.28") x 99 mm (3.90") x 68.5 mm (2.70") (W x D x H)
- Net Weight: 415 g (15 oz)
