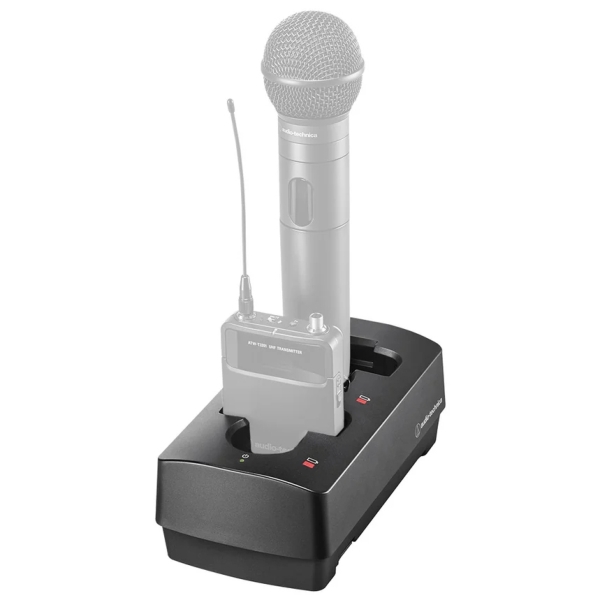

Audio-Technica ATW-CHG3a 2-Bay Charging Unit for System 20 PRO and 3000 Series

Audio-Technica ATW-CHG3a Features

- Two-bay charging station for use with 3000 Series transmitters, 3000 Series IEM receiver, and System 20 PRO transmitters
- Charges NiMH batteries while they are housed within a transmitter
- Automatically shuts off if alkaline or damaged batteries are detected
- Indicator LEDs for easy monitoring of power and charging status
- Up to five ATW-CHG3a charging stations can be linked and powered by a single power supply (using AT8687 link kit and AD-SA1230XA AC adapter, sold separately)
- Transmitters power off automatically when placed in the charging station and power on automatically when removed
- PSU Sold Separately

Audio-Technica ATW-CHG3a Specifications

- Power Requirements: 12V DC 3.0 A
- Charging Output: 3.6V DC 500 mA (x2)
- Power Consumption: 4.9 W (when 2 transmitters are charging) 27.4 W (when 5 units are connected and 10 transmitters are charging)
- Charging Time: Approx. 6.5 hours (1,900 mAh rechargeable battery) Depending on battery type and use pattern.
- Operating Temperature Range: 0° C to 40° C (32° F to 104° F)
- Dimensions: 185 mm (7.28") x 99 mm (3.90") x 68.5 mm (2.70") (W x D x H)
- Net Weight: 400 g (14.1 oz)

Further Product Information Below

Audio-Technica ATW-CHG3a Manual (PDF)

Audio-Technica System 20 Pro Manual (PDF)

Audio-Technica System 20 Pro Wireless Manager Manual (PDF)
