Avante Imperio Active Speaker, 240W - White

Avante Imperio Active Speaker Specifications

Speaker:
- 2-way active closed Design loudspeaker
- Driver Information:
  - 2x 4.75-inch Neodymium Woofer with 1-inch voice coil
  - 6x 1.75-inch IDVAT HF drivers (Inverted Dome Vertical Array Technology)
- Max Output SPL: 117dB (single box measured on Axis @1m)

Coverage:
- Nominal Coverage: 90° x 15°
- Frequency Range (-10db): 150Hz – 20KHz

Construction:
- Cabinet: White ABS Plastic
- Grill: 1.0mm steel

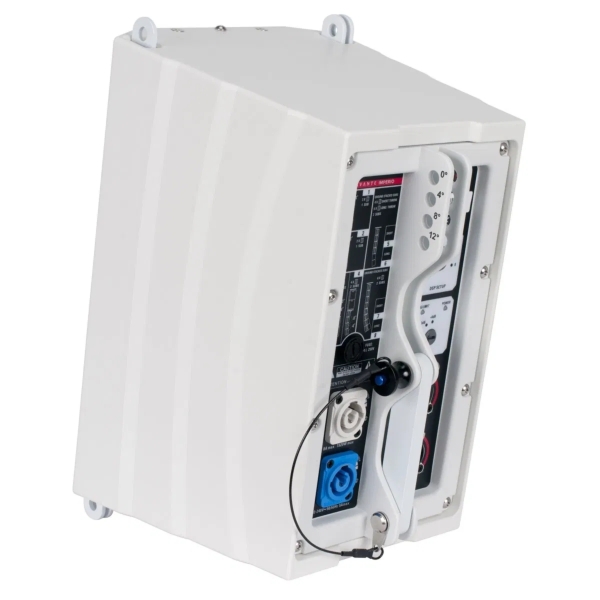

- Splay Angles: 0, 4, 8 & 12-degrees
- Integrated Rigging: Yes

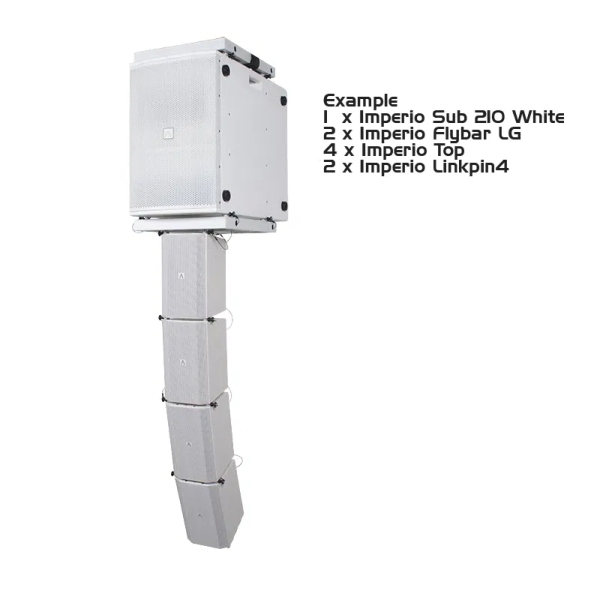

- LinkPins for connecting 2 Imperio or pole mounting included
- 0.6m Locking Power and XLR Link cables included
- Volume: Selectable Input Sensitivity Dial

Amplification:
- Amplification Power: 600W Peak
- 2x 120W RMS Class D Amplifier Module
- Switching Power Design
- LED Power / Signal / Clip Indicator
- 24-bit DSP Selectable Configurations
- Selectable Input Sensitivity: -3dB, 0dB, 3dB, 6dB

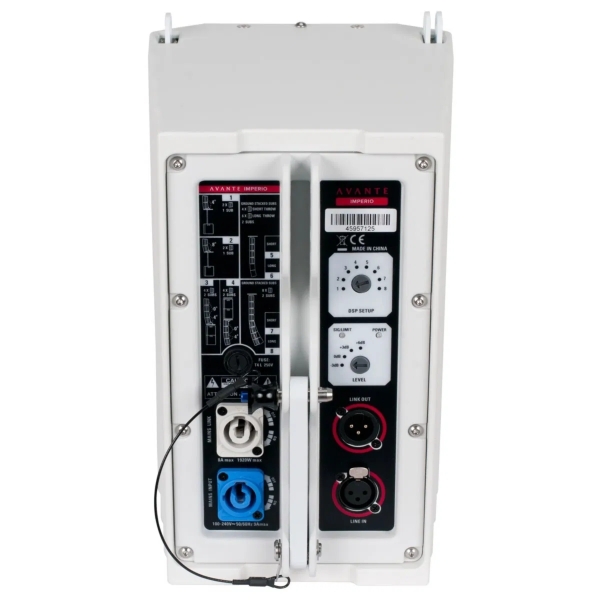

Connections:
- Signal Input/Output: Locking 3-pin XLR
- Power Input/Output: Locking Power

Electrical:
- Power Input: 100-240V ~ 50/60Hz

Physical:
- Dimensions: (W x D x H) 184.8 x 224 x 324 mm
- Weight: 6.3 kg

Further Product Information Below

Avante Imperio Series Manual (PDF)
