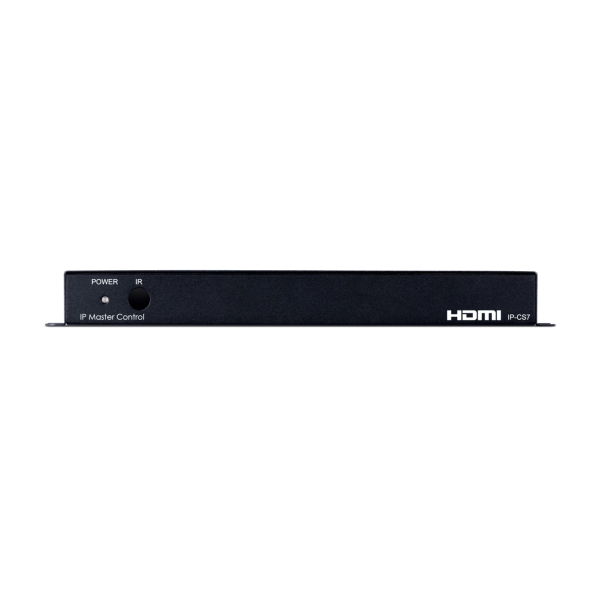

CYP IP-CS7 1G AV over IP System Controller and Configurator
The CYP IPCS7 1G AV over IP System Controller and Configurator is a powerful and flexible solution for controlling the CYP IP-6000 & IP-7000 series.
It is capable of simultaneously managing multiple IP extenders across the same network. The unit only requires installation within your network to start the configuration process. The IP CS7 will search and discover all Transmitters and Receivers on the network, enabling simple configuration of a uni-cast or multicast installation.
When using the IPCS7 Web GUI, it is possible to define and control all of the TX/RX's on the network. It also allows the user to create pre-determined switching groups or pre-sets for added control.

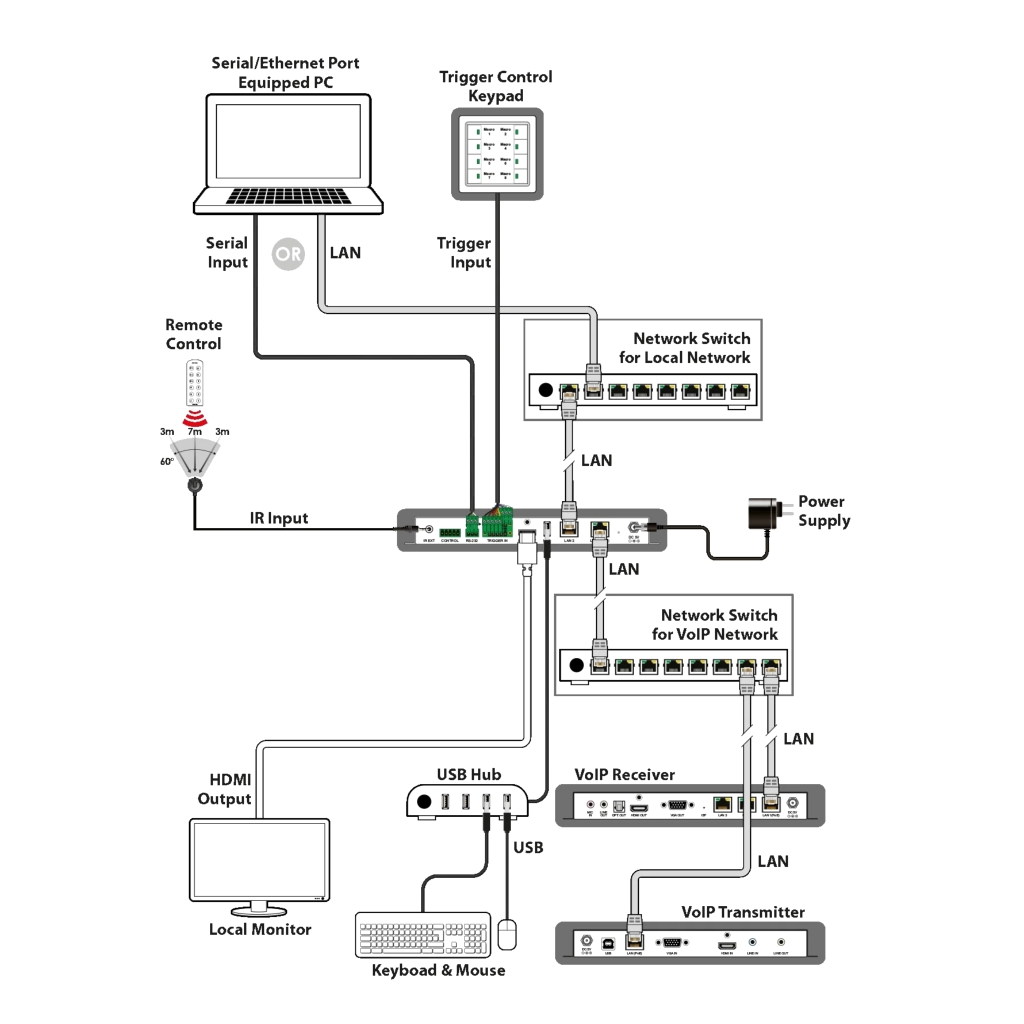

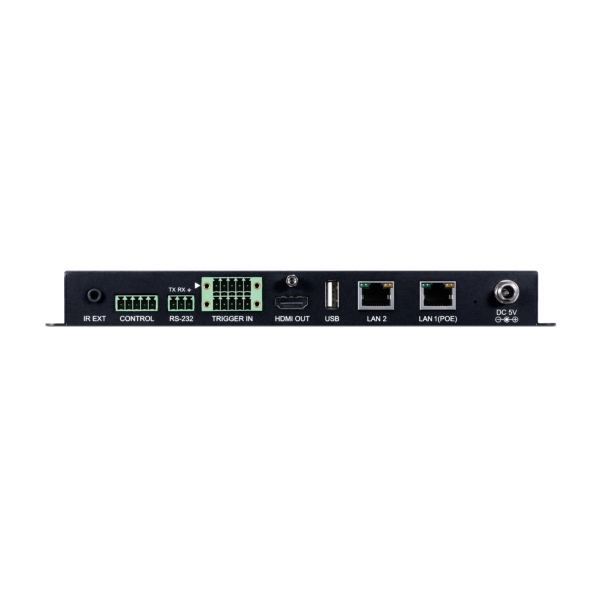

Dual LAN connectivity on the device allows the system to run on a bespoke IP network whilst the additional LAN allows for connection to a secondary network for control and configuration. This is particularly useful when access may be prohibited via the LAN network, the IP CS7 provides a direct link to the IP video network.
Using the Web GUI the user has access to a 'Monitor & Control' area for simple drag and drop control and switching of sources. In this mode the user can see a preview of the content being delivered from the source. The system setup area of the Web GUI has protected access rights so to prevent any changes being made to the system by other users. An alternative control method of the device can be achieved by using the Trigger Input interface. The IP-CS7 1G AV over IP System Controller & Configurator interface allows the user to activate pre-defined functions or pre-sets at the touch of a button. Standard control of the device can be achieved using RS-232, Telnet and the Web GUI.
