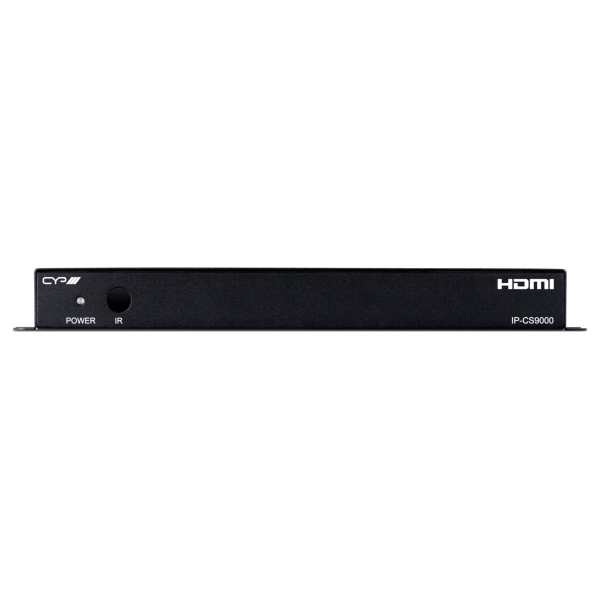

CYP IP-CS9000 1G 4K60 AV over IP System Controller & Configurator for IP-9000 Series
The CYP IP-CS9000 1G 4K60 AV over IP System Controller & Configurator for IP-9000 Series is a powerful and flexible solution for controlling multiple Video over IP (VoIP) extenders.

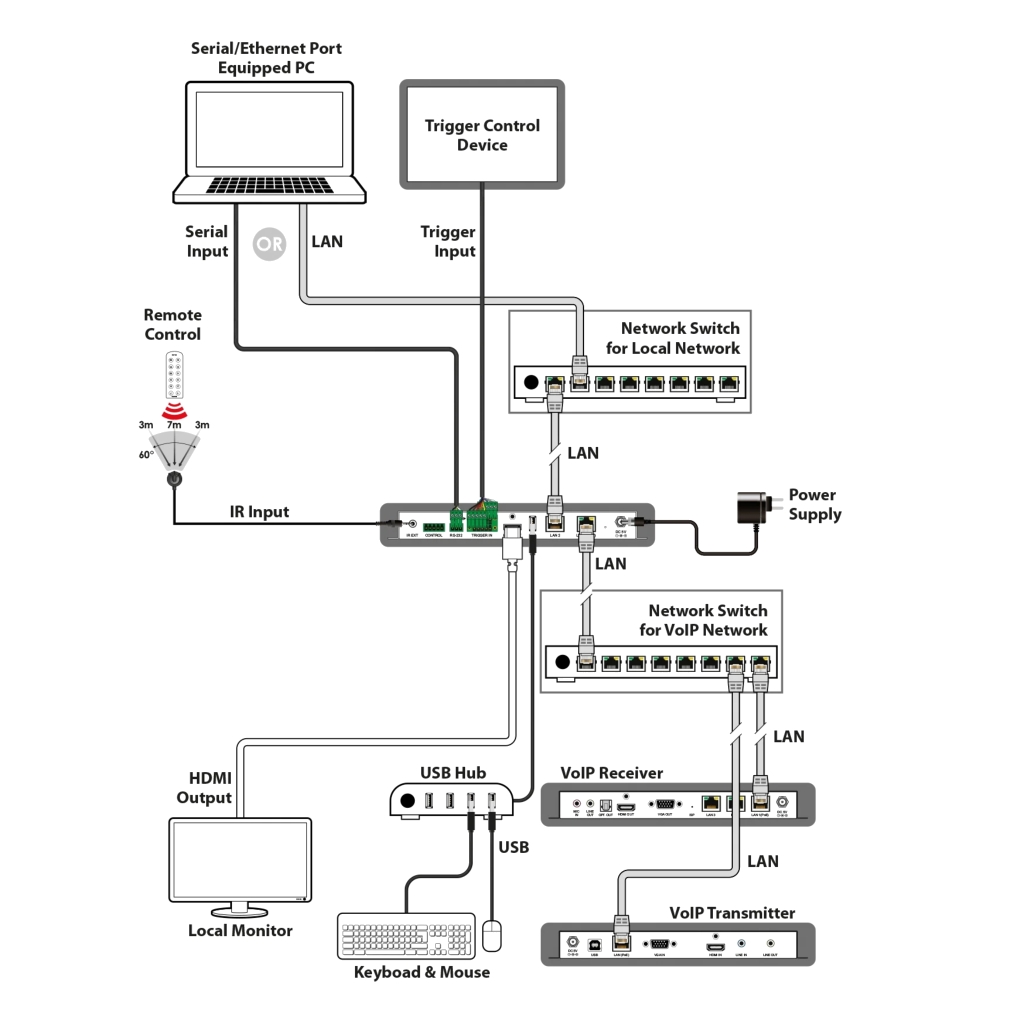

AV integrators simply install this unit into the same local network as the extenders (Transmitter and Receiver) to easily define and configure channel routing selections (including video, audio, IR, RS-232, and USB functionality), for both unicast and multicast scenarios, using the WebGUI. Using the Web GUI the user has access to a 'Monitor & Control' area for simple drag and drop control and switching of sources. It is also possible to define and switch customised groups or presets allowing for easy control over multiple video zones.

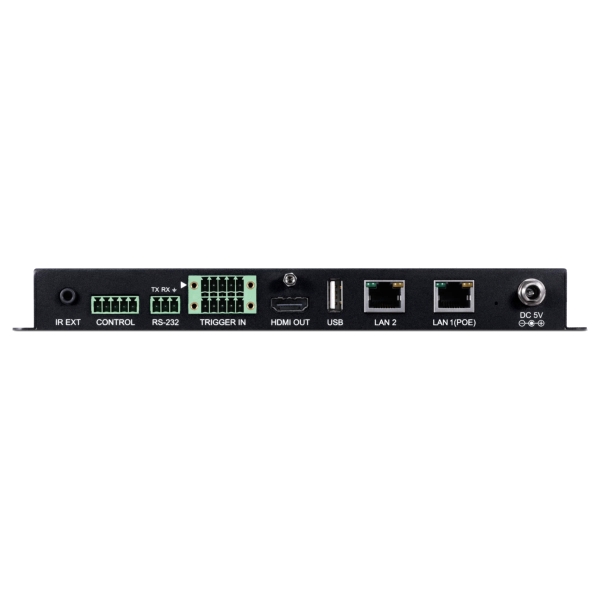

Dual LAN connectivity on the device allows the system to run on a bespoke IP network whilst the additional LAN allows for connection to a secondary network for control and configuration. This is particularly useful when access may be prohibited via the LAN network, the IP- CS9000 provides a direct link to the IP video network.
Additionally, the IP-CS9000 1G 4K60 AV over IP System Controller & Configurator supports controlling and configuring the matrix and video wall modes of connected VoIP units. The settings of all connected Transmitter/Receiver units, including IP configuration, compatibility settings, and extender status are clearly displayed within the WebGUI. The WebGUI is easily accessed via a web browser over a normal network connection or by directly connecting an HDMI display and USB mouse to the unit. A trigger input interface is also provided to allow the easy addition of a 3rd party trigger. This interface can allow the user to activate stored macros with the simple press of a button. Standard control is available via WebGUI (remote or local), RS-232, Telnet, IR Remote and triggers.
