CYP OR-32SDMI 3x2 Full 4K Matrix with USB-C, HDMI & SDM Module Inputs and HDMI outputs with USB Ethernet Hub

Price Each £426.99 (£512.39 Including VAT at 20%)

REF: JP115737

Quantity:

CYP OR-32SDMI 3x2 Full 4K Matrix with USB-C, HDMI & SDM Module Inputs and HDMI outputs with USB Ethernet Hub

The CYP OR32SDMI is a 3x2 matrix switch for use in a wide range of multi-format signals.

The OR 32SDMI supports HDCP2.2, resolutions up to 4k@60Hz (4:4:4, 8-bit), and can be controlled via Web GUI, Telnet and RS-232. It also includes USB3.0 hub with two host-ports and two device-ports for flexible KVM configuration. With the USB extension, this product is ideal for conference, remote meeting, and education scenarios.

The 3rd input is an SDM module slot for use with any SDMI (input) based modules, such as the SDM-WPS-HP wireless presentation module.

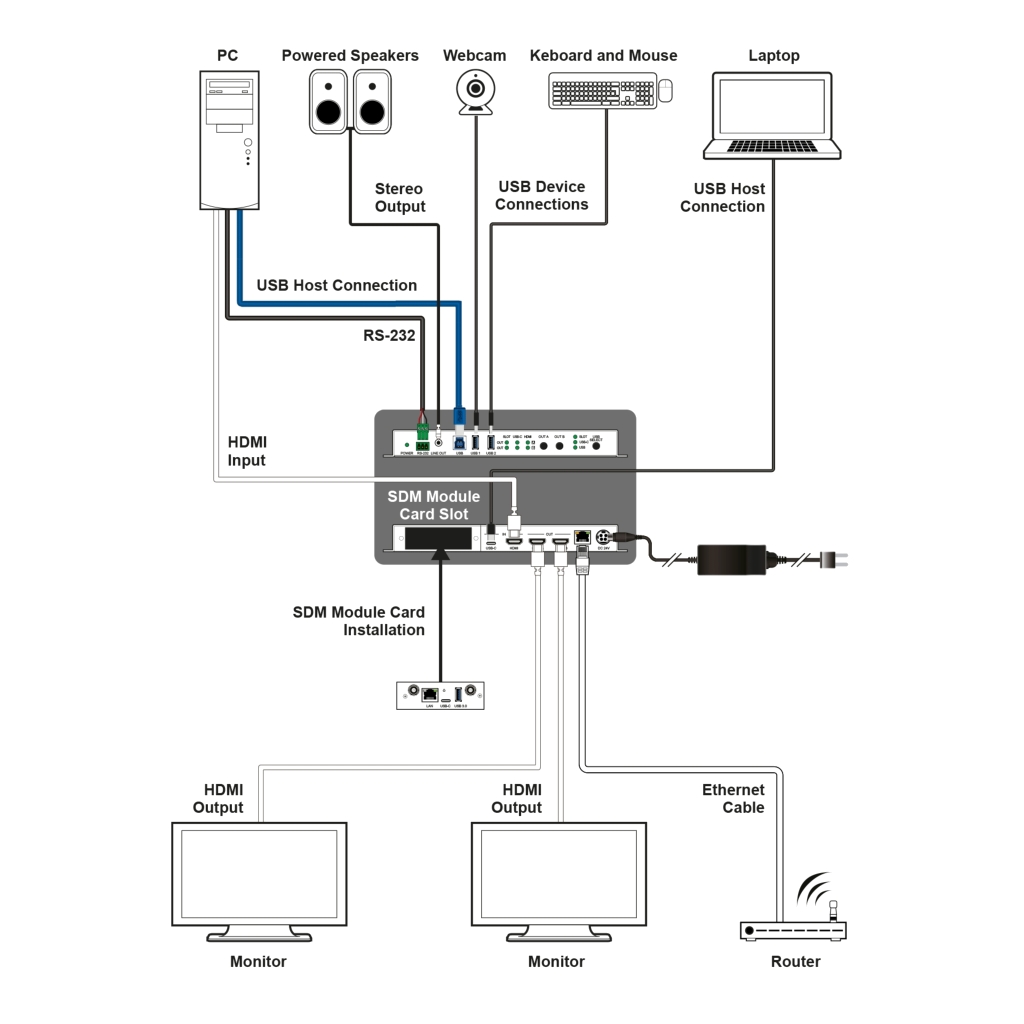

With the commonly used HDMI outputs, this unit can switch video signals between HDMI, USB-C and the desired installed input module.

Click Here for Printer Friendly Version

CYP OR-32SDMI Features

- 3x2 HDMI output matrix with USB-C, HDMI and SDM module slot inputs
- One input module card slot for CYP SDM series module cards. Look for SDM- product codes
- Supports USB 3.0 with one USB-B port, one USB-C port for connecting to a host PC, and two USB-A ports for peripheral devices and storage extension
- Supports gigabit Ethernet
- Supports pass-through of 8 channel LPCM, bitstream & HD bitstream audio formats
- Supports 4K HDR formats by HDR10, HLG and Dolby Vision
- Supports basic signal event automation (via RS-232, IP or CEC)

CYP OR-32SDMI Specifications

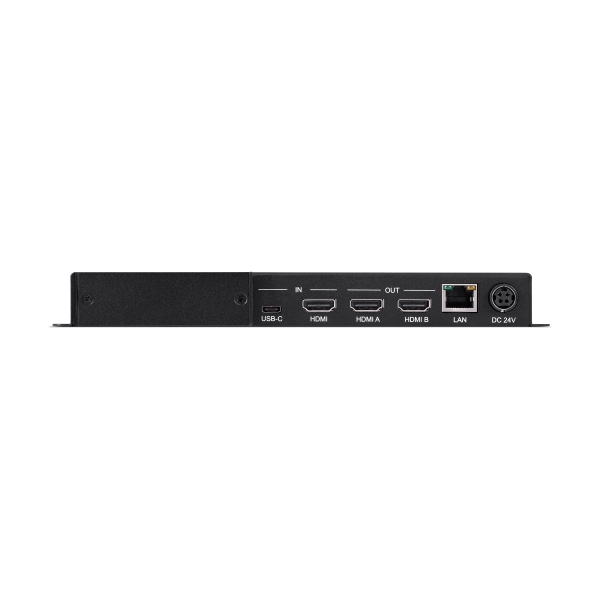

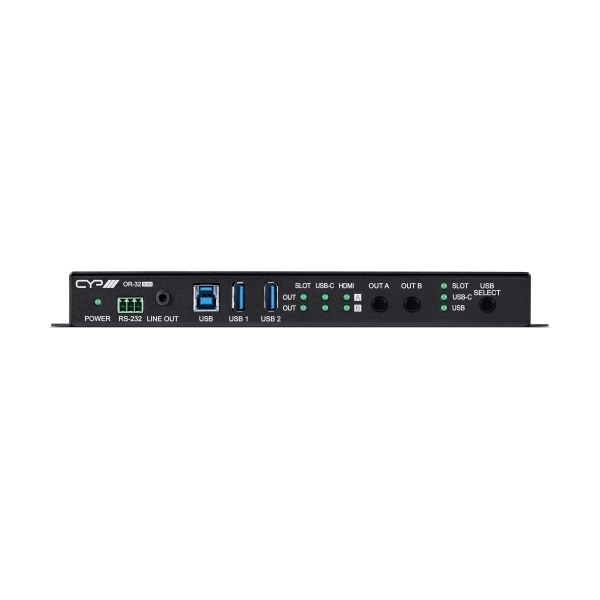

Inputs:
- 1x HDMI [1x HDMI Uncompressed AV and Data]
- 1x USB-C [1x USB-C USB-C / Thunderbolt]
- 1x SDM input module slot [1x Multi use SDM input module slot]
- 1x Phoenix (3 pin) [1x RS-232]
- 1x USB Type B [1x USB Propriety Data]
- 1x RJ45 [1x IP Control]

Outputs:
- 2x HDMI [2x HDMI Uncompressed AV and Data]
- 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
- 2x USB Type A [2x USB Propriety Data]

- PSU: 24V/5A
- Dimensions: 231.5mm [W] x 25mm [H] x 158mm [D]
- Weight: 940g

Further Product Information Below

CYP OR 32SDMI Manual (PDF)

CYP OR 32SDMI Data Sheet (PDF)
