CYP OR-32USBC-4K22 3x2 Full 4K USBC and HDMI Matrix with USB Ethernet Hub

Price Each £398.28 (£477.94 Including VAT at 20%)

REF: JP115735

Quantity:

CYP OR-32USBC-4K22 3x2 Full 4K USBC and HDMI Matrix with USB Ethernet Hub

The CYP OR32USBC4K22 is designed for use in environments needing a wide range of flexibility.

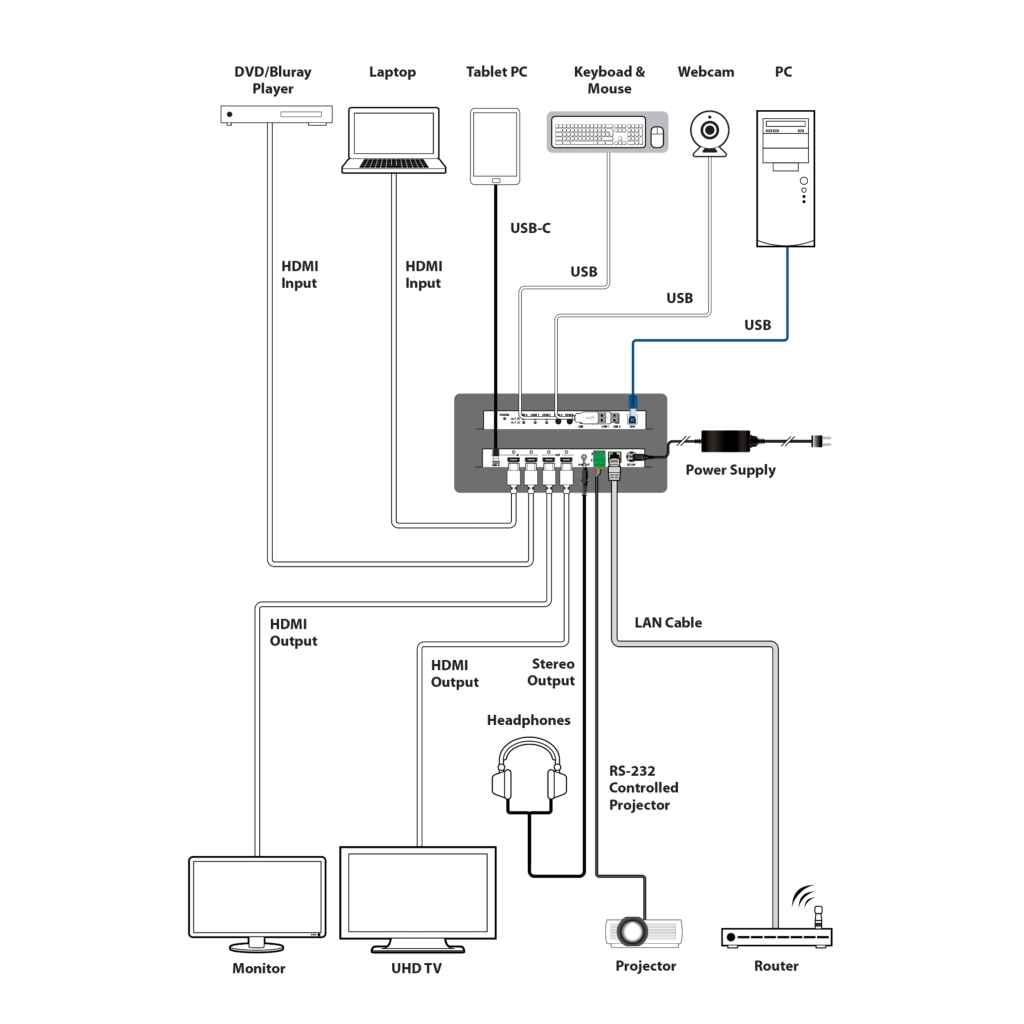

The OR 32USBC 4K22 integrates the two most common video input interfaces (HDMI, USB-C) along with a pair of HDMI outputs, providing the ultimate in source compatibility and flexibility. This unit is HDCP 2.2 compliant and supports resolutions up to a maximum of 4K@60Hz (4:4:4, 8-bit) and HDMI output A supports 4K downscaling to 1080p. The included USB-C input runs on the USB3.0 specs and supports AV, device charging as well as network connection.

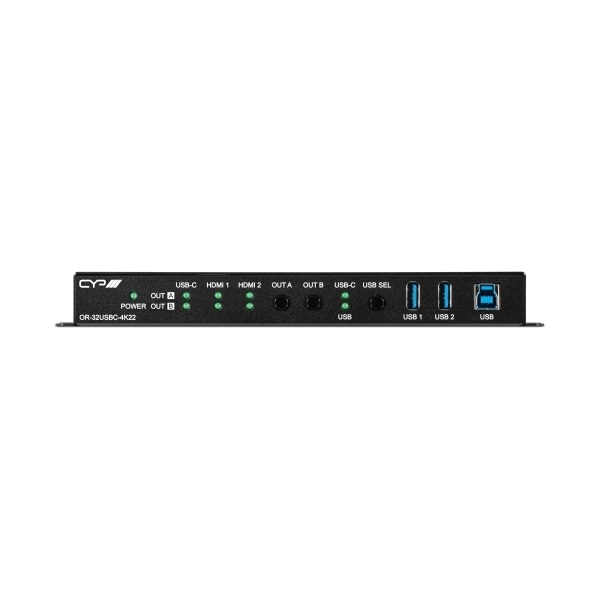

This OR32USBC4K22 Multi-format Matrix also includes a USB 3.0 hub with two host ports (Type-B and Type-C), plus two device ports (Type-A) for a flexible KVM configuration. It is ideal for use in meeting rooms, classrooms, and audio integration with USB expansion. This unit is controllable via front panel controls, Web GUI, Telnet and RS-232.

Click Here for Printer Friendly Version

CYP OR-32USBC-4K22 Features

- 2x HDMI and 1 USB-C 4K60Hz 4:4:4 inputs
- 2x Matrixed HDMI output with output A supporting 4K downscaling to 1080p
- USB-C port supports USB 3.0 speed, device powering 20V/3A and one gigabit Ethernet at best
- Supports pass-through of 8 channel LPCM, bitstream & HD bitstream audio formats
- Supports 4K HDR formats by HDR10, HLG and Dolby Vision
- Support USB 3.0 with one USB type B and one USB type C interface for connection to a host PC, plus two USB type A ports for peripheral devices such as keyboard, mouse and storage extension
- Supports auto-switch functionality with a "last memory" feature for both input ports and USB ports
- Supports basic signal event automation (via RS-232, IP or CEC)

CYP OR-32USBC-4K22 Specifications

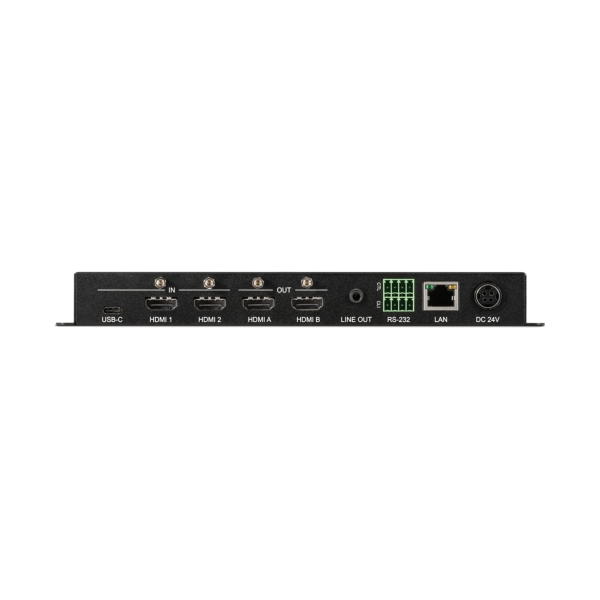

Inputs:
- 1x USB-C [1x USB-C / Thunderbolt]
- 2x HDMI [2x HDMI Uncompressed AV and Data]
- 2x USB Type A [2x USB Propriety Data]
- 1x Phoenix (4 pin) [1x RS-232 local control]
- 1x RJ45 [1x LAN Serving]

Outputs:
- 2x HDMI [2x HDMI Uncompressed AV and Data]
- 1x USB 3 Type B [1x Power & Data]
- 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
- 1x Phoenix (4 pin) [1x RS-232 local output]

- PSU: 24V/5A
- Dimensions: 231.5mm [W] x 25mm [H] x 108mm [D]
- Net Weight: 680g

Further Product Information Below

CYP OR-32USBC-4K22 Manual (PDF)

CYP OR-32USBC-4K22 Data Sheet (PDF)
