CYP OR-42CD-4K22 4x2 HDMI Full 4K Matrix with Audio De-Embedding

Price Each £169.48 (£203.38 Including VAT at 20%)

REF: JP115732

Quantity:

CYP OR-42CD-4K22 4x2 HDMI Full 4K Matrix with Audio De-Embedding

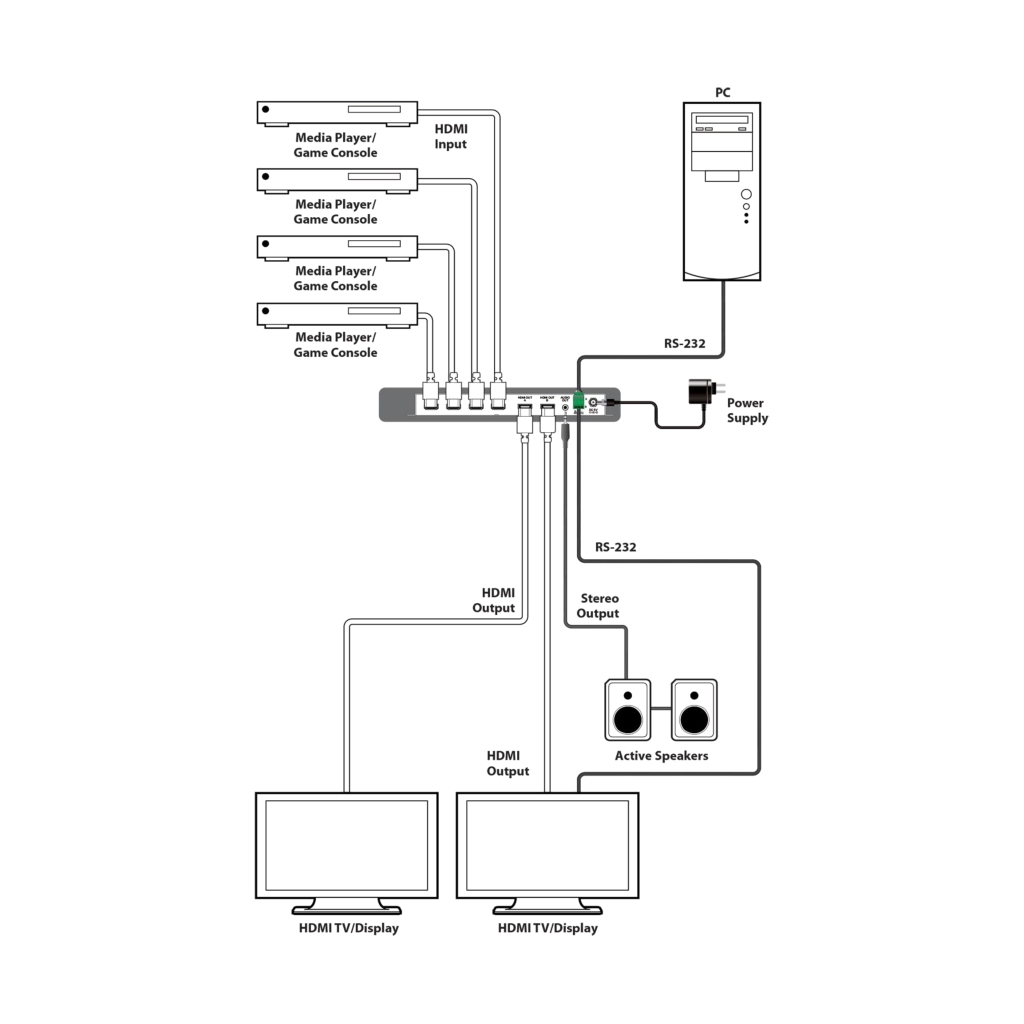

The OR42CD4K22 provides the ability to connect up to four 4K HDR HDMI sources to up to two 4K HDR HDMI displays.

The OR 42CD 4K22 fully supports 4K@60Hz (4:4:4, 8- bit) signals as well as support for 16-bit Deep Colour, HDR (High Dynamic Range), 3D content, HD audio and other features defined by the HDMI 2.0 specification.

A high-quality local analogue stereo audio breakout from a selected HDMI output is also available. Each input's EDID can be independently set to use either an internal (1080p@60Hz) or external (sink-copied) EDID. The OR-42CD-4K22 HDMI Matrix with Audio De-Embedding also provides per-output auto source switching as well as connected display power control using CEC or RS-232 commands. Control of the unit is provided via front panel buttons, RS-232, and IR remote.

Click Here for Printer Friendly Version

CYP OR-42CD-4K22 Features

- HDMI 2.0 and DVI 1.0 compatible
- HDCP 2.2 and HDCP 1.x compliant
- 4 HDMI inputs and 2 HDMI outputs
- Matrix switching with sequential input selection via front panel controls or discrete input selection via IR remote and RS-232
- Supports up to 4K UHD+ (18Gbps, 4K@50/60Hz 4:4:4, 8-bit & HDR) video input and output
- Supports 10-bit and 12-bit HDR (High Dynamic Range) input and output
- Supports pass-through of many audio formats including 8 channel LPCM, Bitstream, and HD Bitstream
- High-quality DAC provides local analogue stereo audio breakout from the selected HDMI output (LPCM 2.0 sources only)
- Independent input based EDID management with internal or external EDID options
- Basic display power automation via RS-232 and CEC

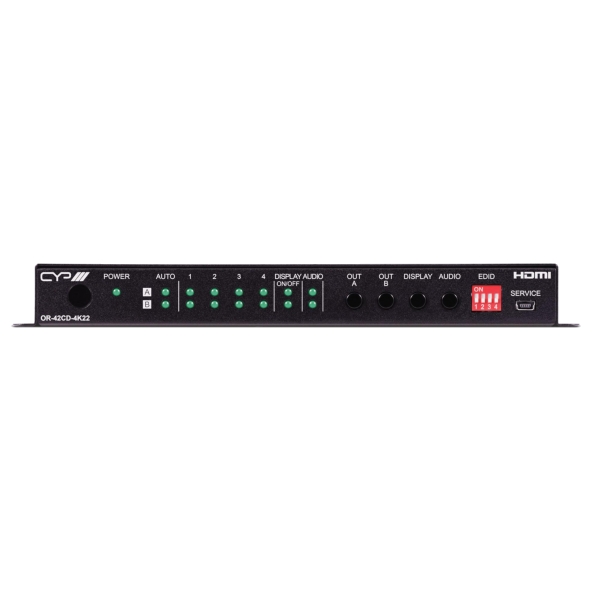

- Controllable via front-panel buttons, RS-232, and IR remote

CYP OR-42CD-4K22 Specifications

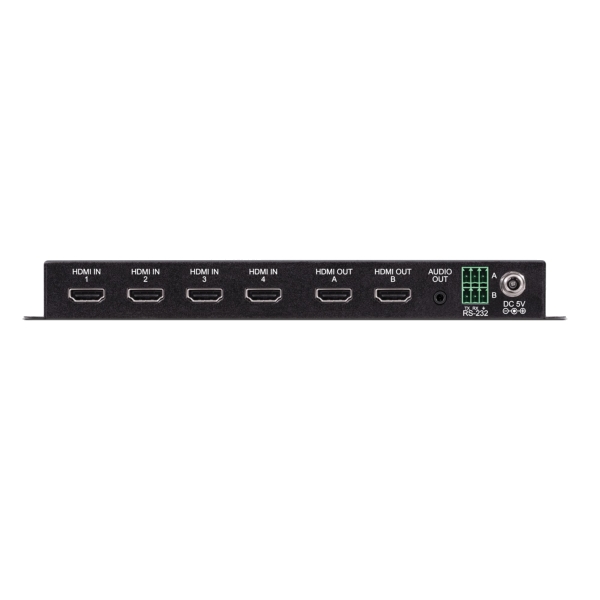

Inputs:
- 4x HDMI [4x HDMI Uncompressed AV and Data]
- 1x Phoenix (3 pin) [1x Console control RS-232]
- 1x USB Type B [1x Service port Propriety Data]

Outputs:
- 2x HDMI [2x HDMI Uncompressed AV and Data]
- 1x 3.5mm Stereo mini-jack [1x Analogue Audio Stereo(L/R)]
- 1x Phoenix (3 pin) [1x Display control RS-232]

- PSU: 5V/2.6A
- Dimensions: 231.5mm [W] x 25mm [H] x 108mm [D]
- Weight: 620g

Further Product Information Below

CYP OR 42CD 4K22 Manual (PDF)

CYP OR 42CD 4K22 Data Sheet (PDF)
