CYP OR-88U-4K22 8x8 HDMI Full 4K Matrix Switcher with USB Power

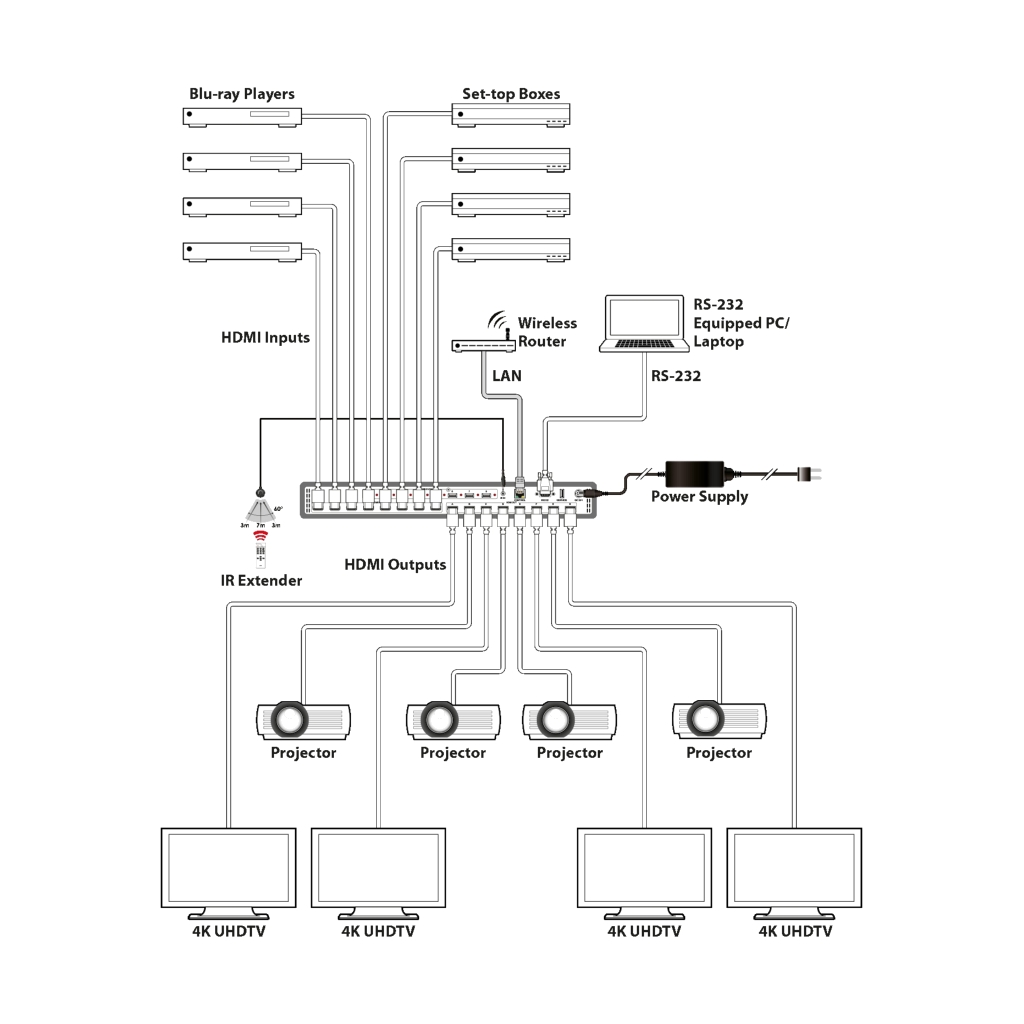

The CYP OR88U4K22 provides the ability to connect up to eight 4K UHD HDMI sources to up to eight 4K UHD HDMI displays.
The OR 88U 4K22 comes with full support for 18Gbps (6G) resolutions up to, and including 4K@60Hz (4:4:4, 8-bit) as well as support for 16-bit Deep Color up to 1080p@60Hz, HDR (High Dynamic Range), HD audio and other features defined by the HDMI 2.0a specification. With a comprehensive EDID management feature that includes the ability to select between built in default EDID, copied EDID from connected sink devices, as well as a configurable EDID, this matrix can solve many inter-connectivity problems.

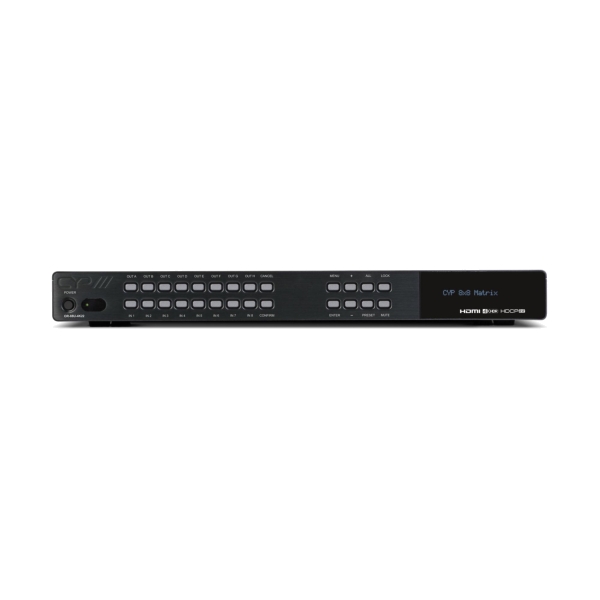

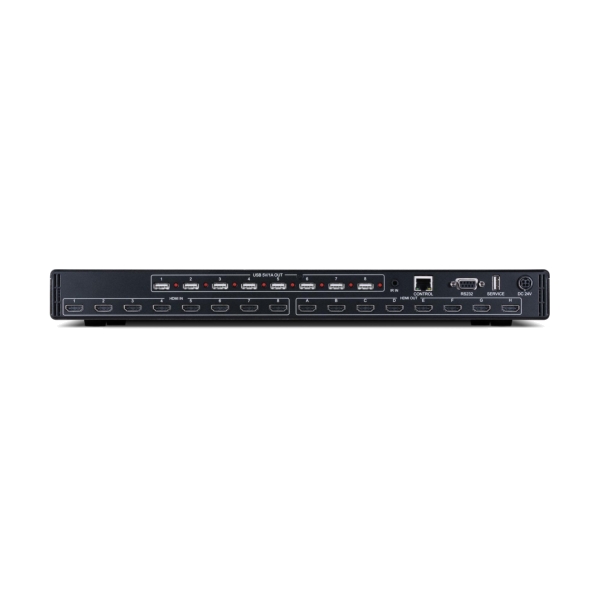

The OR-88U-4K22 8x8 HDMI Full 4K Matrix Switcher with USB Power also features eight USB ports which supply up to 5V/1A power for use with connected AOC (Active Optical Cable) fiber cable extenders. By using these specialized cables your HDMI content can be extended much further than would be possible with normal HDMI cables. The built-in OSD has the ability to display user defined text, enabling each output to display 2 lines of custom text on top of the video source in the colour of your choice. This unit provides an intuitive set of front panel controls with an LCD, RS-232, Telnet, Web GUI, and IR remote control options.
