CYP OR-DT42-4K22 4x2 Full 4K HDMI Matrix with Dante Decoder

CYP OR-DT42-4K22 Features

- HDMI 2.0 and DVI 1.0 compliant (with the use of an HDMI-DVI adapter)
- HDCP 1.x and 2.2 compliant
- 4 HDMI inputs and 2 HDMI outputs
- 4x2 matrix routing with per-output analogue audio extraction
- Supports up to 4K UHD+ (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output
- Support pass-through of many audio formats including 8 channel LPCM, Bitstream, and HD Bitstream
- Each output's audio is selectable between the routed HDMI source or an independent Dante network audio source
- Compatible with existing Dante and AES67 audio networks for transmission and reception of uncompressed audio with near-zero latency
- Simple and easy network audio routing via 3rd party control software (available for both Windows and macOS systems)
- Per-input EDID management with internal or external EDID options

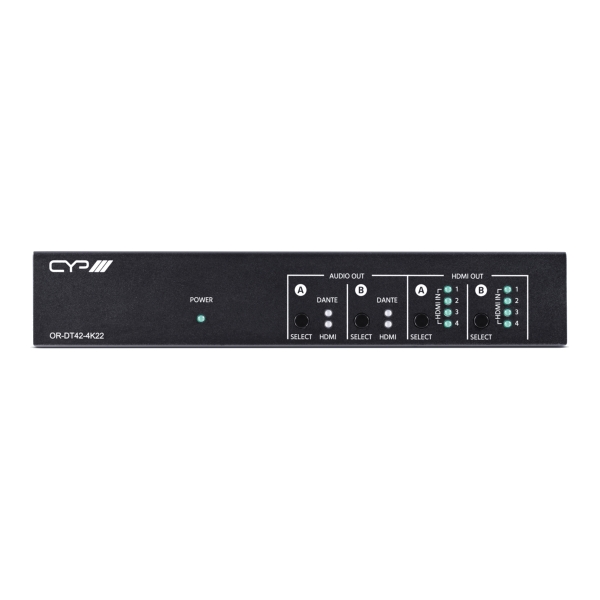

- Controllable via front panel buttons, Web GUI, Telnet, and RS-232

CYP OR-DT42-4K22 Specifications

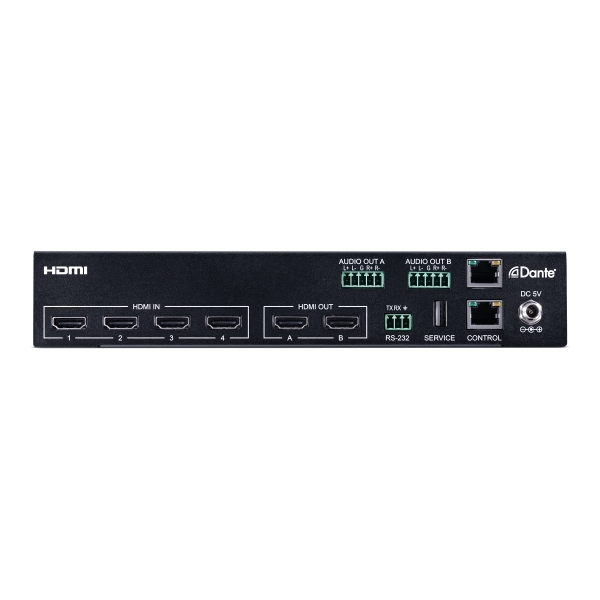

Inputs:
- 4x HDMI [4x HDMI Uncompressed AV and Data]
- 1x Phoenix (3 pin) [1x RS-232]
- 1x RJ45 [1x Dante I/O port Propriety Data]
- 1x RJ45 [1x IP Control]
- 1x USB Type A [1x Service Port Propriety Data]

Outputs:
- 2x HDMI [2x HDMI Uncompressed AV and Data]
- 2x Phoenix (5 pin) [2x Analogue Stereo (Balanced or Unbalanced)]

- PSU: 5V/2.6A
- Dimensions: 240mm [W] x 43mm [H] x 104mm [D]
- Net Weight: 800g
