CYP PU-101PL-KIT HDBaseT1 Lite HDMI Extender Set with PoC, 2-way IR and RS232

Price Each £140.43 (£168.52 Including VAT at 20%)

REF: JP115713

Quantity:

CYP PU-101PL-KIT HDBaseT1 Lite HDMI Extender Set with PoC, 2-way IR and RS232

The CYP PU101PLKIT transmits uncompressed video and audio up to 70 metres at 1080p or 40 metres at 4K.

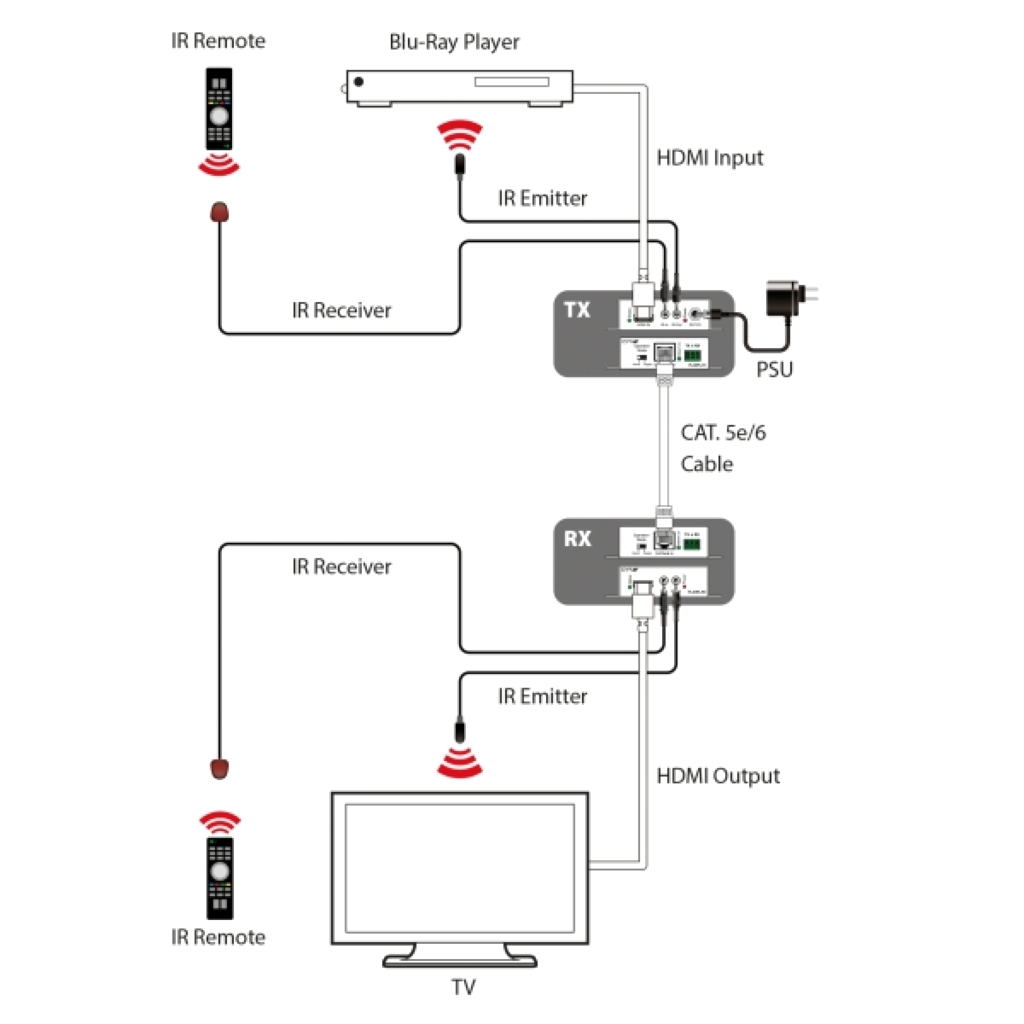

The PU 101PL KIT HDMI Extender with bi-directional IR, RS-232 & PoC Transmitter and Receiver Kit can make your home or office set-up more efficient and easy to use.

With the PoC function and added benefit of controls through the built-in RS-232 and IR ports. The PU-101PL-KIT HDMI Extender is designed with HDBaseT Lite technology allows a full usage of HDMI and controls over CAT5e/6.

Click Here for Printer Friendly Version

CYP PU-101PL-KIT Features

- HDCP 2.2 Compliant
- HDMI 1.4 with 3D, 4Kx2K support, HDCP and DVI compliant
- 4K/2K & 4K UHD signals can be transmitted up to 40m via CAT5e/6
- Complies with HDBaseT- Lite specifications
- HDMI status, Power & HDBaseT Link LED's
- Supports two-way IR, RS-232 Control, and Power Over Cable (PoC)
- Supports High Definition LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission

CYP PU-101PL-KIT Specifications

Inputs:

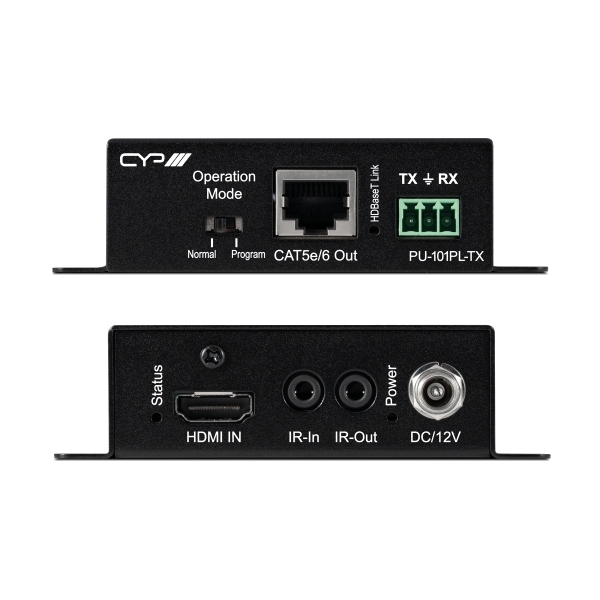

- 1x HDMI [1x HDMI (TX) Uncompressed AV and Data]
- 1x RJ45 [1x HDBaseT (RX) HDMI & Propriety Data]
- 1x Phoenix (3 pin) [1x RS-232]
- 2x 3.5mm Stereo mini-jack [2x Infra Red Receiver]

Outputs:

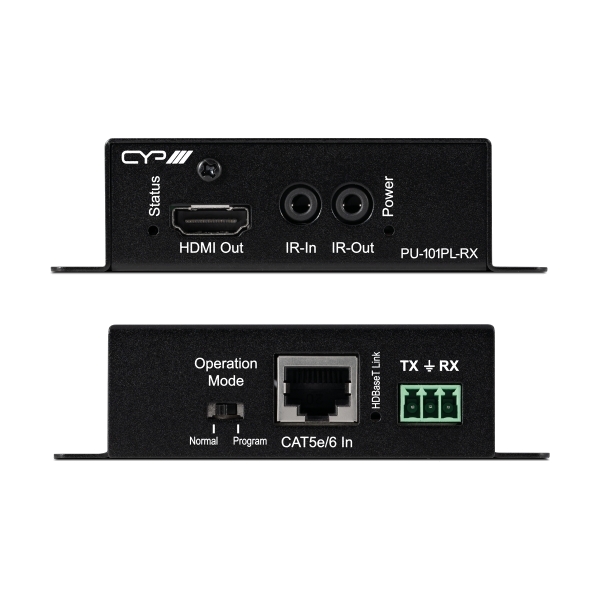

- 1x HDMI [1x HDMI (RX) Uncompressed AV and Data]
- 1x RJ45 [1x HDBaseT (TX) HDMI & Propriety Data]
- 1x Phoenix (3 pin) [1x RS-232]
- 2x 3.5mm Stereo mini-jack [2x Infra Red Emitter]

- POE PSU: PoC
- PSU: 12V/2A
- Dimensions: 71mm [W] x 25mm [H] x 105mm [D]
- Net Weight: 520g

Further Product Information Below

CYP PU 101PL KIT Manual (PDF)

CYP PU 101PL KIT Data Sheet (PDF)
