CYP PU-1H2HBTE 1x HDMI to 2x HDBaseT1 Splitter (Up to 100m) with HDMI Bypass

Price Each £343.45 (£412.14 Including VAT at 20%)

REF: JP115705

Quantity:

CYP PU-1H2HBTE 1x HDMI to 2x HDBaseT1 Splitter (Up to 100m) with HDMI Bypass

The Cyp PU1H2HBTE allow uncompressed HDMI, LAN, PoE, IR, and RS-232 signals to be transmitted over a Single CAT5e/6/7 cable up to 100m.

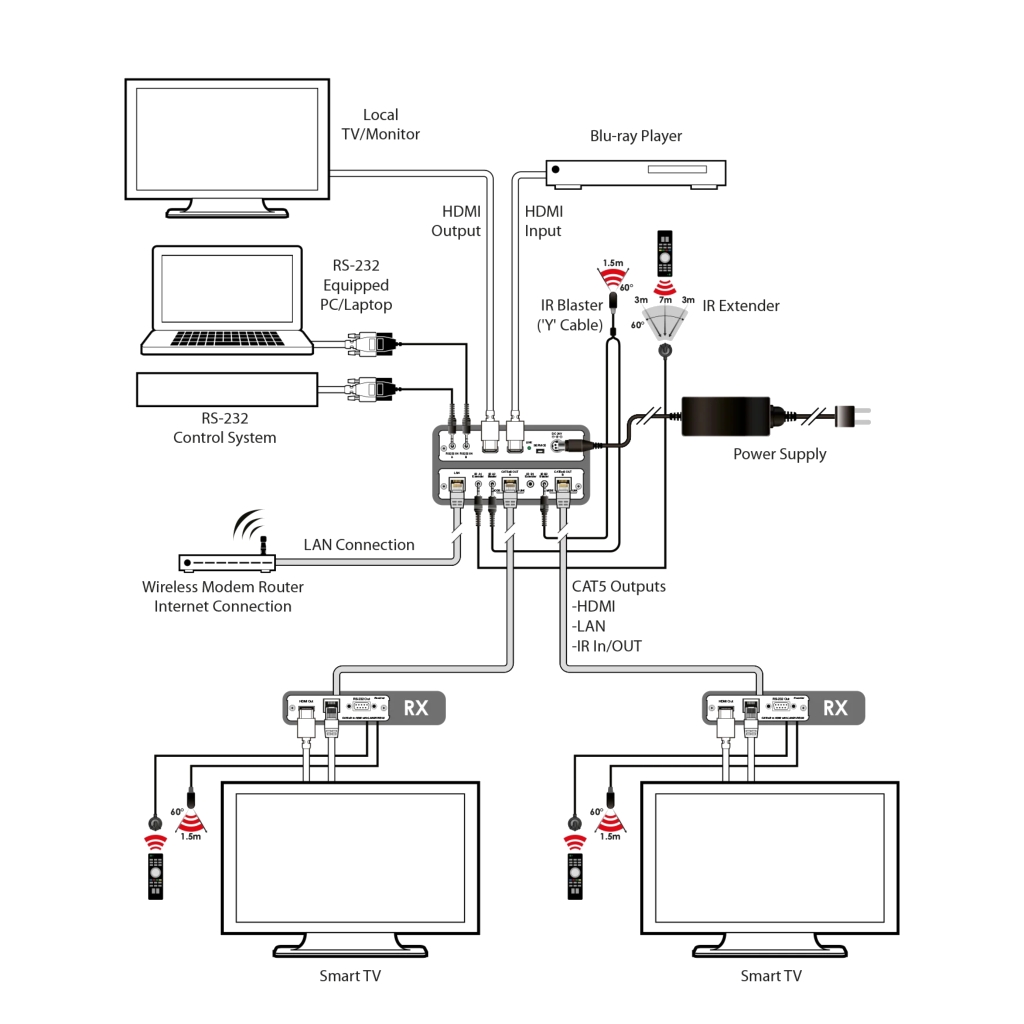

The PU 1H2BTE HDBaseT Splitter accepts 1 HDMI input and distributes to 2 HDBaseT outputs, plus 1 HDMI bypass output. Installers can confidently distribute HDMI signals to 3 displays, and if required, the additional HDMI bypass output enables cascading to further splitters, (up to 5 times). Allowing scalable multi-display distribution across larger systems. With integrated IR, RS-232, and LAN pass-through, the PU1H2HBTE also enables seamless remote control and system integration.

The PU1H2BTE HDBaseT Splitter is designed to be used with the PU-507RX Receivers are to utilise the full 5-Play functionality of the HDBaseT outputs of this device.

Click Here for Printer Friendly Version

CYP PU-1H2HBTE Features

- Supports all v1.4 HDMI resolutions plus 4K
- HDMI, HDCP, & DVI compliant
- Supports uncompressed video/audio up to 10.2Gbps
- Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display's EDID settings
- Supports HDCP repeating and CEC functions
- Supports 1080p distances up to 100 meters through CAT5e/6 cables
- Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
- Supports full 5-Play Convergence: HDMI / LAN / PoC (Power over Cable) / IR / RS-232
- Supports 3D signals
- Supports 4K/2K & 4K UHD - CAT5e/6 = 70m & CAT6a/7 = 100m

CYP PU-1H2HBTE Specifications

Inputs:

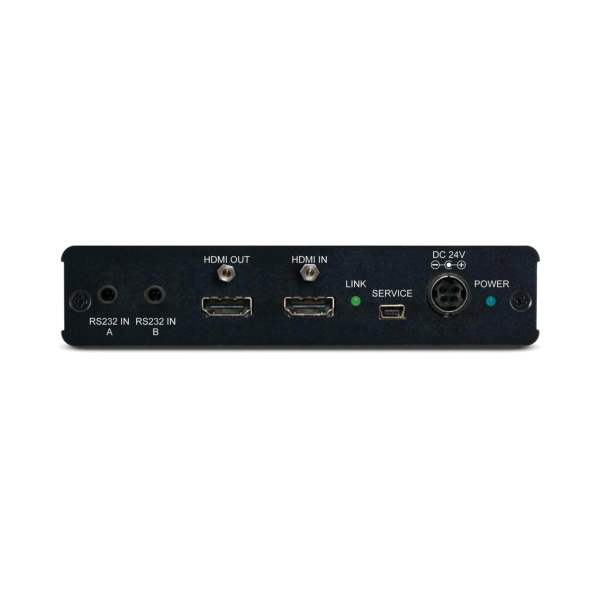

- 1x HDMI [1x HDMI Uncompressed AV and Data]
- 2x 3.5mm Stereo mini-jack [2x RS-232]
- 2x 3.5mm Stereo mini-jack [2x Infra Red Receiver]

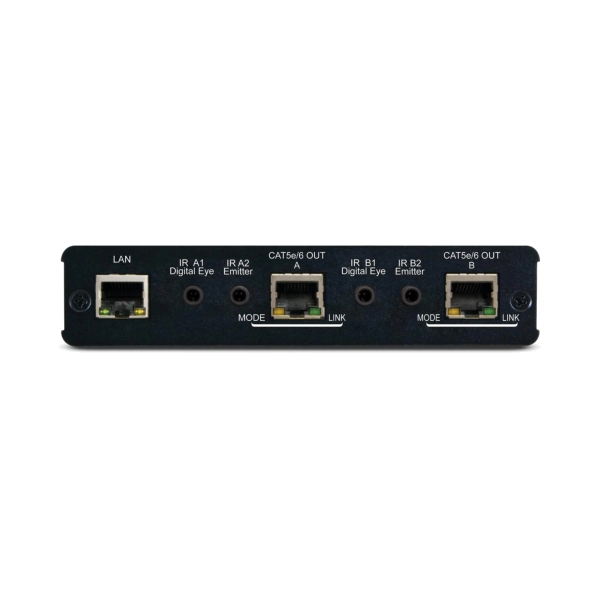

Outputs:
- 1x HDMI [1x HDMI Uncompressed AV and Data]
- 2x RJ45 [2x HDMI & Propriety Data]
- 2x 3.5mm Stereo mini-jack [2x Infra Red Emitter]
- 1x RJ45 [1x Ethernet (I/O) IP]

- PSU: 24V/2.7A
- Dimensions: 145mm [W] x 30mm [H] x 178mm [D]
- Weight: 540g

Further Product Information Below

CYP PU 1H2HBTE Manual (PDF)

CYP PU 1H2HBTE Data Sheet (PDF)

CYP PU 1H2HBTE Distrobution Chart (PDF)
