CYP PU-1H3HBTE 1x HDMI to 3x HDBaseT1 Splitter (Up to 100m) with HDMI Bypass

Price Each £513.62 (£616.34 Including VAT at 20%)

REF: JP115706

Quantity:

CYP PU-1H3HBTE 1x HDMI to 3x HDBaseT1 Splitter (Up to 100m) with HDMI Bypass

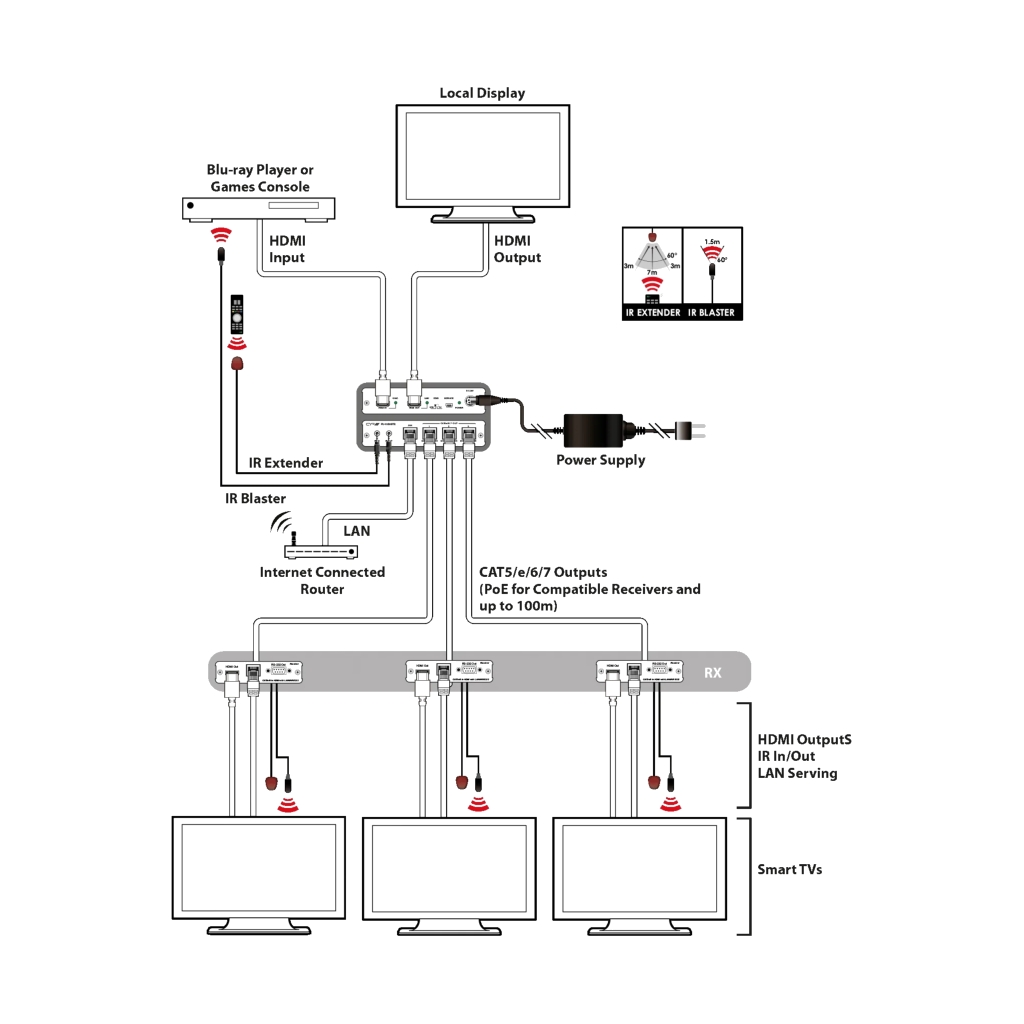

The CYP PU1H3HBTE allows uncompressed distribution of HDMI, LAN, PoC, and IR over a Single CAT5e/6/7 cable up to lengths of 100m.

PU 1H3HBTE HDBaseT Splitter enables a single HDMI source input to be distributed to 3 HDBaseT outputs. Perfect for both residential and commercial AV installations, the PU 1H3HBTE can distribute HDMI signals to 3 displays. The product also includes an additional HDMI output for increased flexibility and can also be cascaded up to 5 times to allow distribution to potentially 50 screens or more.

The PU1H3HBTE HDBaseT Splitter is designed to be used with the PU-507RX Receivers to utilise the functionality of the HDBaseT outputs of this device.

Click Here for Printer Friendly Version

CYP PU-1H3HBTE Features

- Supports all v1.4 HDMI resolutions including 4K.
- HDMI, HDCP, & DVI compliant
- Supports HDMI / LAN / PoC (Power over Cable) / IR
- Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display's EDID settings
- Supports uncompressed video/audio up to 10.2Gbps
- Supports HDCP repeating and CEC functions
- Additional HDMI bypass output provided to improve flexibility
- Supports 1080p distances up to 100 meters through CAT5e/6 cables
- Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
- Supports 3D signals
- Supports 4K/2K & 4K UHD - CAT5e/6 = 70m & CAT6a/7 = 100m

CYP PU-1H3HBTE Specifications

Inputs:
- 1x HDMI [1x HDMI Uncompressed AV and Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
- 1x RJ45 [1x LAN Serving]

Outputs:
- 1x HDMI [1x HDMI Uncompressed AV and Data]
- 3x RJ45 [3x HDMI & Propriety Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]

- PSU: 24V/2.7A
- Dimensions: 145mm [W] x 30mm [H] x 199mm [D]
- Weight: 640g

Further Product Information Below

CYP PU 1H3HBTE Manual (PDF)

CYP PU 1H3HBTE Data Sheet (PDF)

CYP PU 1H3HBTE Distrobution Chart (PDF)
