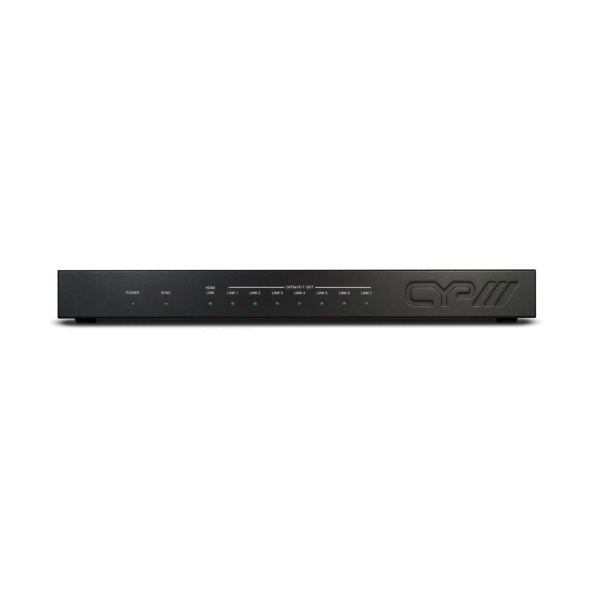

CYP PU-1H7HBTPL 1x HDMI to 7x HDBaseT1 LITE Splitter (Up to 40m) with HDMI Bypass

Price Each £831.72 (£998.06 Including VAT at 20%)

REF: JP115710

Quantity:

CYP PU-1H7HBTPL 1x HDMI to 7x HDBaseT1 LITE Splitter (Up to 40m) with HDMI Bypass

The CYP PU1H7HBTPL allows uncompressed distribution of HDMI, and IR signals over a Single CAT5e/6/7 cable up to lengths of 40m.

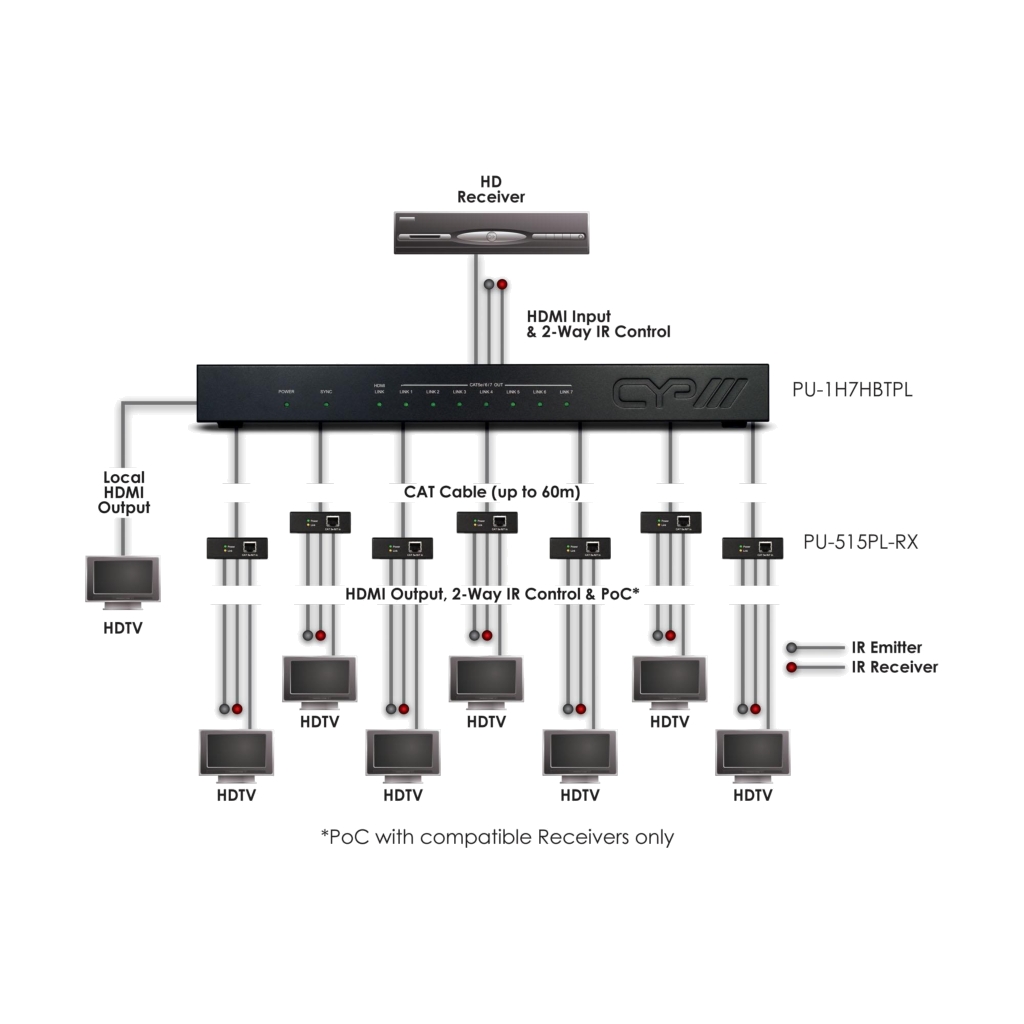

The PU 1H7HBTPL HDBaseT Splitter enables a single HDMI source input to be distributed to 7 HDBaseT Lite with PoC outputs. Perfect for both residential and commercial AV installations, the PU1H7HBTPL can distribute HDMI signals to 7 displays. The product also includes an additional HDMI output for increased flexibility and can also be cascaded up to 5 times to allow distribution to more screens.

The PU1H7HBTPL HDBaseT Splitter is designed to be used with the PU-515PL-RX Receivers to utilise the full functionality of the HDBaseT LITE with PoC outputs of this device.

Click Here for Printer Friendly Version

CYP PU-1H7HBTPL Features

- Supports all v1.4 HDMI resolutions plus 4K
- HDMI, HDCP, & DVI compliant
- Supports uncompressed video/audio up to 10.2Gbps
- Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display's EDID settings
- Supports HDCP repeating and CEC functions
- Supports 1080p distances up to 60 meters through CAT5e/6 cables
- Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
- Supports HDMI / IR
- Supports 3D signals
- Supports PoC (power over cable) providing power for the receivers
- Supports 4K/2K & 4K UHD - CAT5e/6 = 35m & CAT6a/7 = 40m

CYP PU-1H7HBTPL Specifications

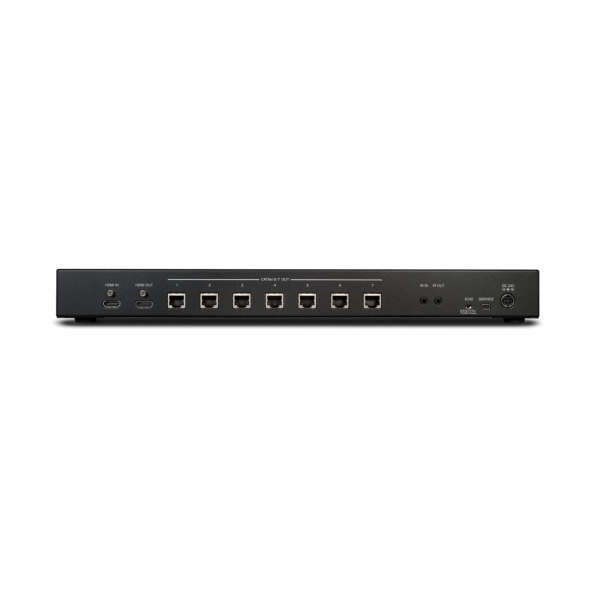

Inputs:
- 1x HDMI [1x HDMI Uncompressed AV and Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]

Outputs:
- 1x HDMI [1x HDMI Uncompressed AV and Data]
- 7x RJ45 [7x HDBaseT Lite PoC HDMI & Propriety Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]

- PSU: 24V/6.25A
- Dimensions: 432mm [W] x 44mm [H] x 179mm [D]
- Net Weight: 2.12kg

Further Product Information Below

CYP PU 1H7HBTPL Manual (PDF)

CYP PU 1H7HBTPL Data Sheet (PDF)
