CYP PU-232 RS-232 Control over CAT5/6 Extender Set

Price Each £76.84 (£92.21 Including VAT at 20%)

REF: JP115717

Quantity:

CYP PU-232 RS-232 Control over CAT5/6 Extender Set

The CYP PU232 will extend the control of RS-232 for over 250 metres.

The PU 232 extender also provides full duplex transmission and hardware handshake signals, with no need for any set up or configuration. This transmitter and receiver set is a hardware-based solution providing control of any RS-232 protocol device.

Click Here for Printer Friendly Version

CYP PU-232 Features

- Extends any RS-232 compliant device up to 250 metres from the source to display
- Requires only one CAT5/6 cable
- Perfect for digital signage applications
- Baud Rate: 110~921600. Data bit: 8bit
- Simple installation and operation

CYP PU-232 Specifications

Inputs:

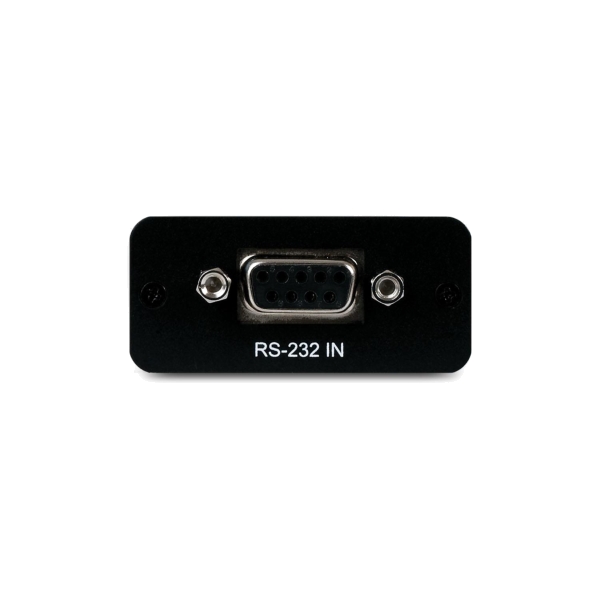

- TX: 1x 9pin Dsub [1x RS-232 Data]
- RX: 1x RJ45 [1x RS-232 Propriety Data]

Outputs:
- TX: 1x RJ45 [1x RS-232 Propriety Data]

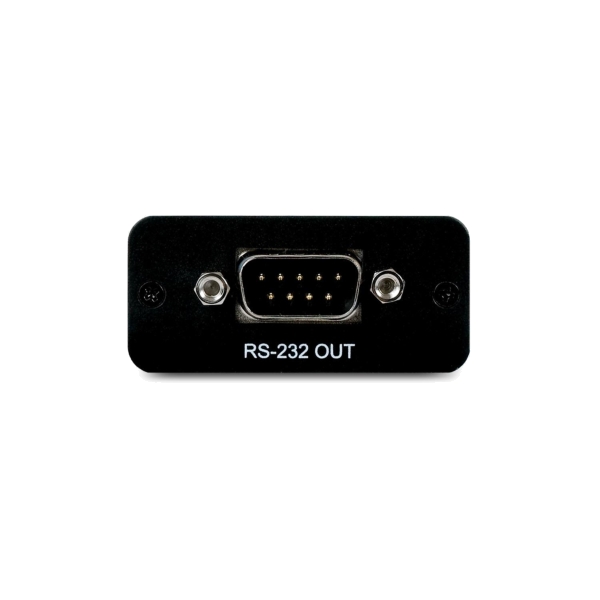

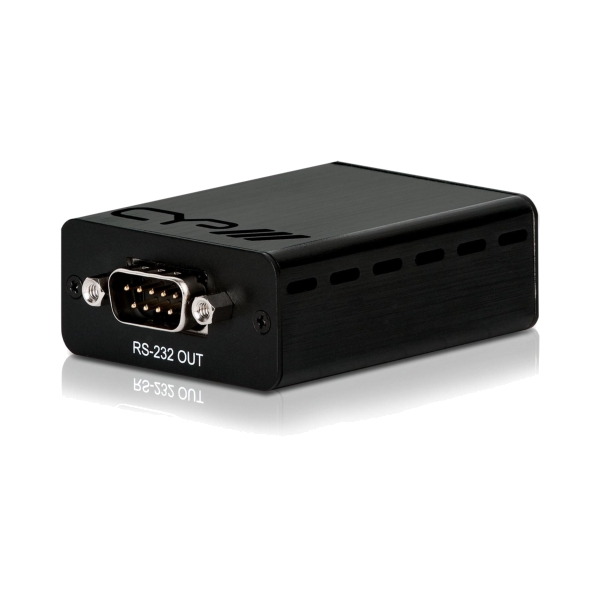

- RX: 1x 9-pin Dsub [1x RS-232 Data]

- PSU: 5V/1.2A
- Dimensions:
- TX: 50mm [W] x 23mm [H] x 67mm [D]
- RX: 50mm [W] x 23mm [H] x 67mm [D]
- Weight: 160g

Further Product Information Below

CYP PU 232 Manual (PDF)

CYP PU 232 Data Sheet (PDF)
