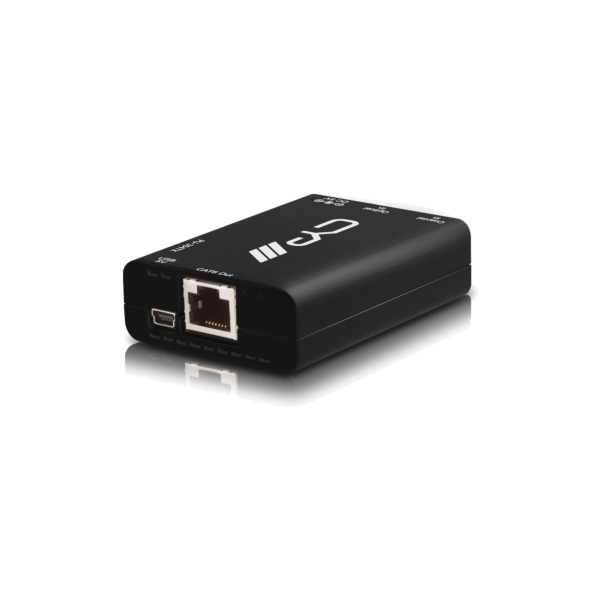

CYP PU-304-KIT Digital Audio over CAT5e/6 Extender Set

Price Each £108.60 (£130.32 Including VAT at 20%)

REF: JP115719

Quantity:

CYP PU-304-KIT Digital Audio over CAT5e/6 Extender Set

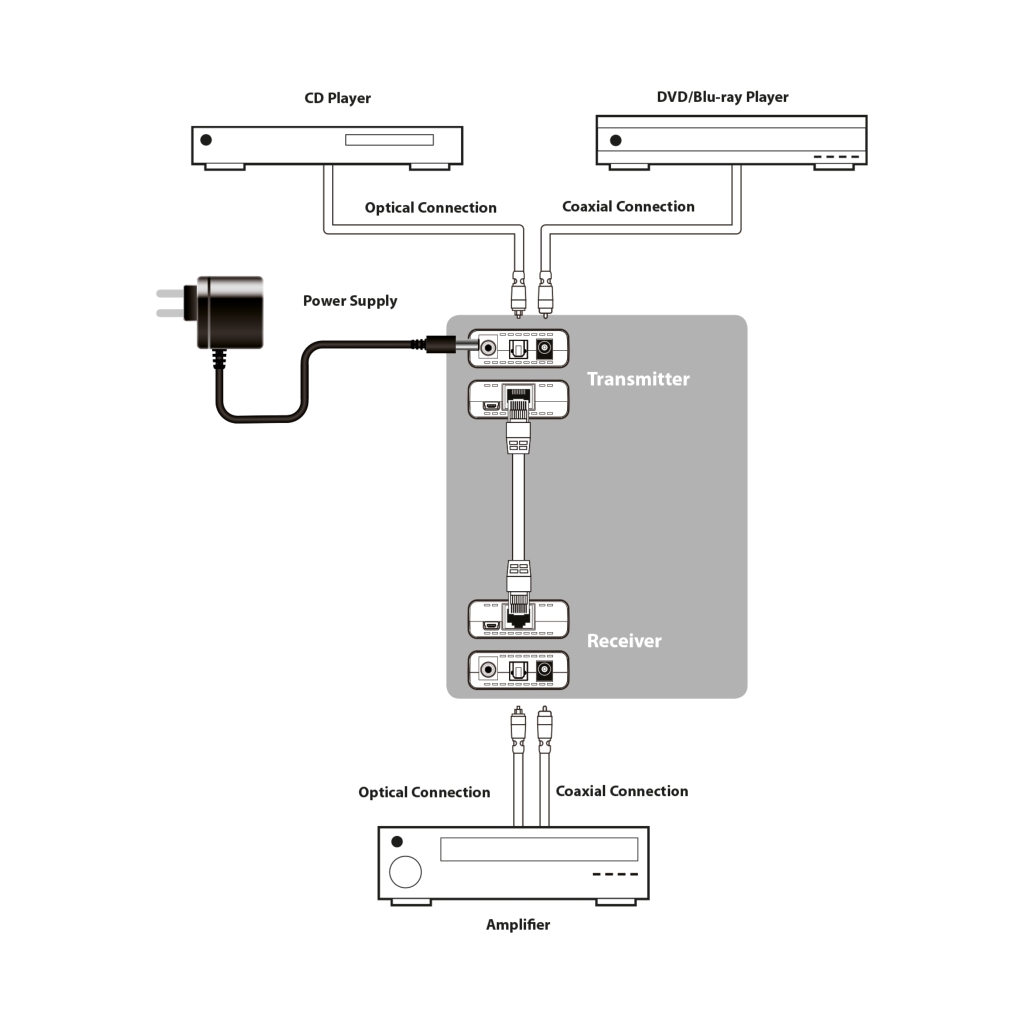

The CYP PU304KIT is designed to send digital audio signals over 150m over CAT5e/6 cable infrastructure.

The PU 304 KIT supports both Coaxial and Optical signals and can transmit these signals up to 150m.

The PU304KIT digital audio extender can be powered using a USB cable or the supplied PSU adaptor for added flexibility in a compact design. Digital SPDIF signals are supported up to a sample rate of 96Khz, and support for Stereo and Multichannel digital audio (LPCM, DTS, Dolby Digital, Dolby Digital Plus) is also provided.

Click Here for Printer Friendly Version

CYP PU-304-KIT Features

- Supports Coaxial or Optical digital audio SPDIF signals
- Supports Stereo and Multichannel digital audio (LPCM, DTS, Dolby Digital, Dolby Digital Plus)
- Supports sample rate up to 96kHz
- Dual transmission 1x Coaxial and 1x Optical
- Signals can be extended over single CAT5e/CAT6 up to 150m

CYP PU-304-KIT Specifications

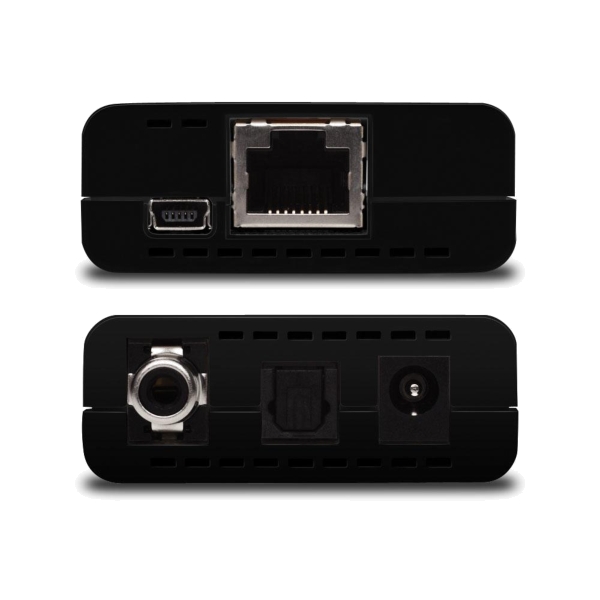

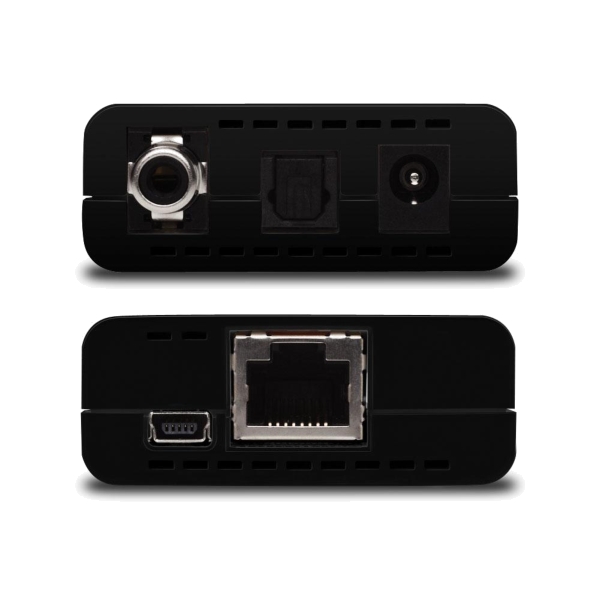

Inputs:
- PU-304RX: 1x RJ45 [1x Digital Audio Propriety Data]
- PU-304TX: 1x RCA [1x Coaxial 2 Channel LPCM / DTS / Dolby Digital / Dolby Digital Plus]
- 1x Toslink [1x Optical 2 Channel LPCM / DTS / Dolby Digital / Dolby Digital Plus]

Outputs:
- PU-304TX: 1x RJ45 [1x Digital Audio Propriety Data]
- PU-304RX: 1x RCA [1x Coaxial 2 Channel LPCM / DTS / Dolby Digital / Dolby Digital Plus]
- 1x Toslink [1x Optical 2 Channel LPCM / DTS / Dolby Digital / Dolby Digital Plus]

- PSU: 5V/1.2A & USB
- Dimensions:
- PU-304RX: 75mm [W] x 22mm [H] x 55mm [D]
- PU-304TX: 75mm [W] x 22mm [H] x 55mm [D]
- Weight: 100g

Further Product Information Below

CYP PU 304 KIT Manual (PDF)

CYP PU 304 KIT Data Sheet (PDF)
