CYP PU-305BDA-KIT Bi-Directional Analogue Stereo Audio over Single CAT5e/6/7 Kit

Price Each £195.99 (£235.19 Including VAT at 20%)

REF: JP115714

Quantity:

CYP PU-305BDA-KIT Bi-Directional Analogue Stereo Audio over Single CAT5e/6/7 Kit

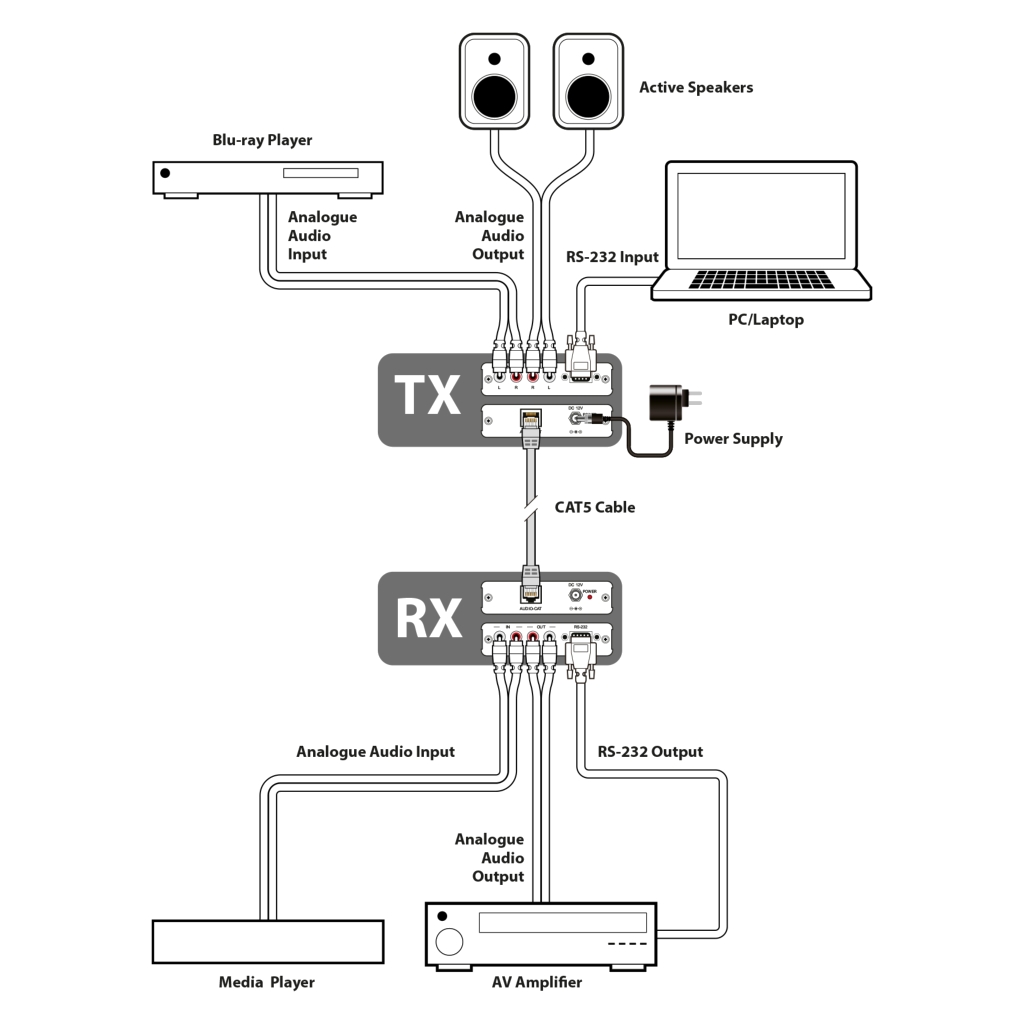

The CYP PU305BDAKIT can send and receive analogue audio signals over a single run of CAT5e/6/7 cables up to 300m.

The PU 305BDA KIT is an analogue Stereo Extender kit has a Power over CAT function that can be used at either end, providing power the transmitter or the receiver unit eliminating the need for a second power supply. As the unit has bi-directional capabilities, each unit in the kit can send & receive audio signals.

It has the added benefit of RS-232 pass-through allowing control of devices.

Click Here for Printer Friendly Version

CYP PU-304-KIT Features

- Supports bi-directional transmission (in/out) of analogue audio and RS-232 pass-through
- Supports Power over CAT to either TX or RX
- Only one PSU is required and can be used at either the TX or RX
- Bi-directional RS-232 control

CYP PU-304-KIT Specifications

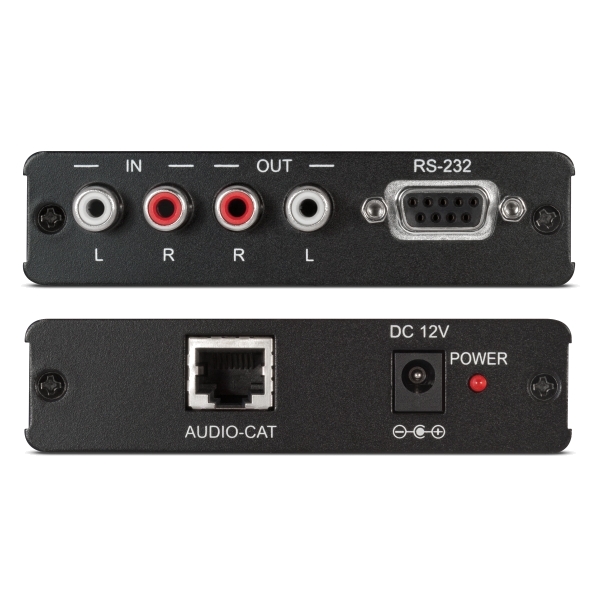

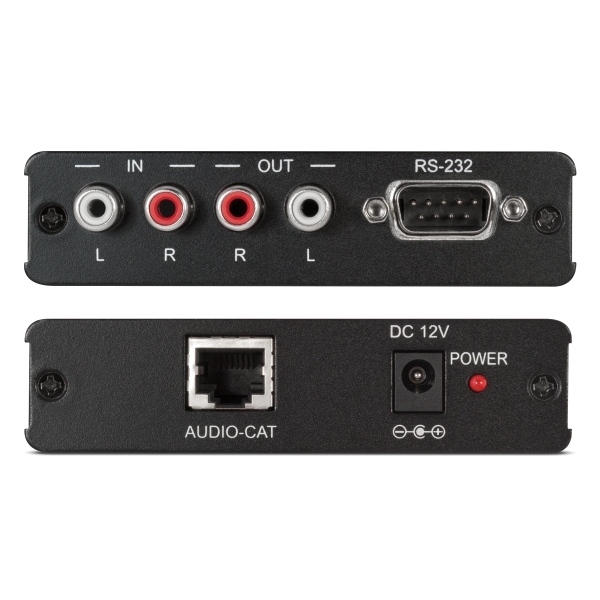

Inputs:
- 2x RCA [1x TX Analogue Stereo (L/R)]
- 2x RCA [1x RX Analogue Stereo (L/R)]
- 1x 9pin Dsub [1x TX RS-232 Data]
- 1x RJ45 [1x RX Bi-directional Audio plus Propriety Data]

Outputs:
- 2x RCA [1x TX Analogue Stereo (L/R)]
- 2x RCA [1x RX Analogue Stereo (L/R)]
- 1x 9pin Dsub [1x RX RS-232 Data]
- 1x RJ45 [1x TX Bi-directional Audio plus Propriety Data]

- POE PSU: PoC
- PSU: 12V/1.25A, Bi-directional POE
- Dimensions: 102mm [W] x 25mm [H] x 102mm [D]
- Net Weight: 480g

Further Product Information Below

CYP PU 305BDA KIT Manual (PDF)

CYP PU 305BDA KIT Data Sheet (PDF)
