CYP PU-507RX 5-Play HDBaseT1 (Up to 100m) Receiver with LAN & PoC

Cyp PU-507RX Features

- HDCP 2.2 Compliant
- Supports all v1.4 HDMI resolutions plus 4k.
- Supports uncompressed video/audio up to 10.2Gbps
- Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display's EDID settings
- HDMI, HDCP, & DVI compliant
- Supports HDCP repeating and CEC functions
- Supports 1080p distances up to 100 meters through CAT5e/6 cables
- Uncompressed video 1080p, 60Hz, 48bits
- Audio support up to 7.1CH & Dolby TrueHD, DTS-HD

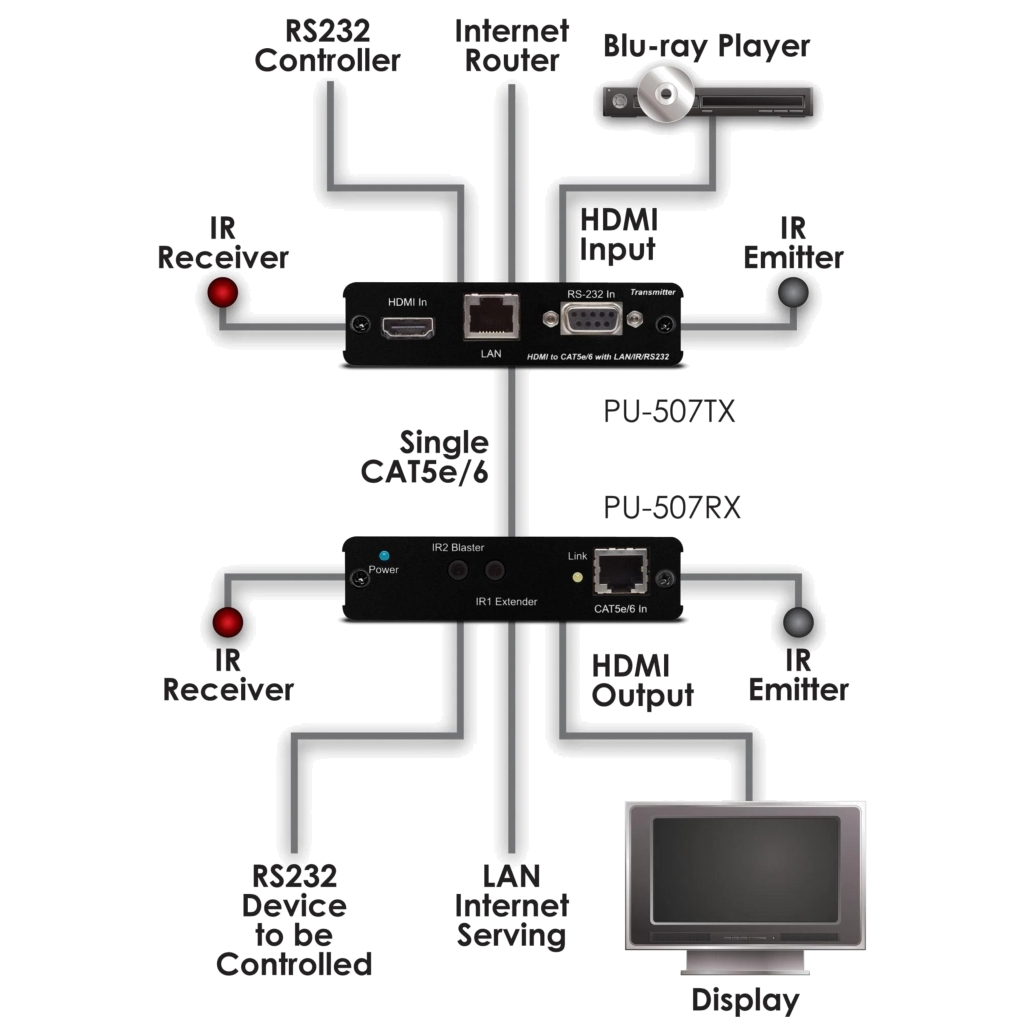

- 5-Play convergence: HDMI, LAN, PoC & Control (IR & RS232)
- Supports 3D signals
- Supports 4K/2K & 4K UHD - CAT5e/6 = 70m & CAT6a/7 = 100m

Cyp PU-507RX Specifications

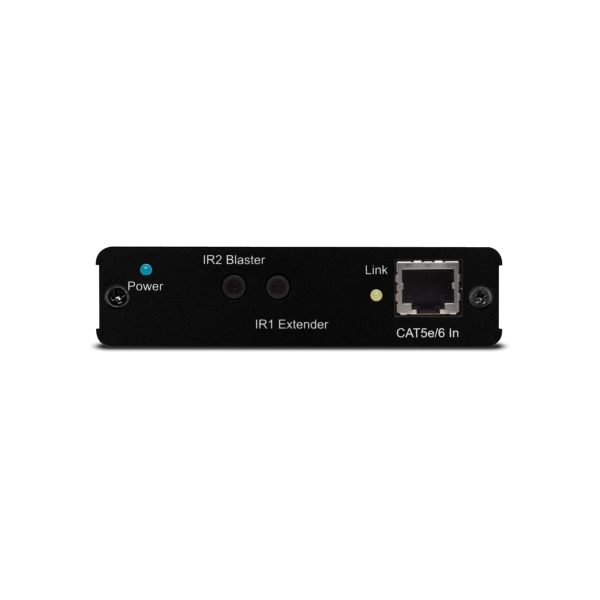

Inputs:
- 1x RJ45 [1x HDMI & Propriety Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]

Outputs:
- 1x HDMI [1x HDMI Uncompressed AV and Data]
- 1x 9pin Dsub [1x RS-232 Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
- 1x RJ45 [1x Ethernet (I/O) IP]

- PSU: PoC
- Dimensions: 102mm [W] x 25mm [H] x 102mm [D]
- Weight: 260g

Further Product Information Below

CYP PU 507RX Manual (PDF)

CYP PU 507RX Data Sheet (PDF)

CYP Extender Set Data (PDF)

CYP Extender Brochure (PDF)
