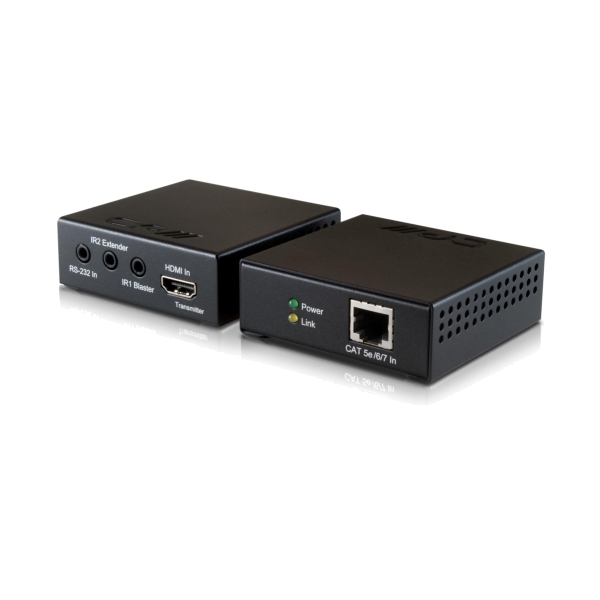

CYP PU-515PL-RX HDBaseT1 LITE Receiver (Up to 60m) with PoC

CYP PU-515PL-RX Features

- HDCP 2.2 Compliant
- HDMI 1.4 with 3D, 4Kx2K support, HDCP and DVI compliant
- 4K/2K & 4K UHD signals can be transmitted up to 35m via CAT5e/6 and 40m via CAT6a/7
- Supports HDMI 1.4 (including HDCP) over a single CAT5e/6/7 up to 60m
- Complies with HDBaseT- Lite specifications
- Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display's EDID settings
- HDMI input up to 15m with 8-bit deep colour, or 10m with 12-bit deep colour
- Supports HDMI output up to 15m with 8/12-bit deep colour

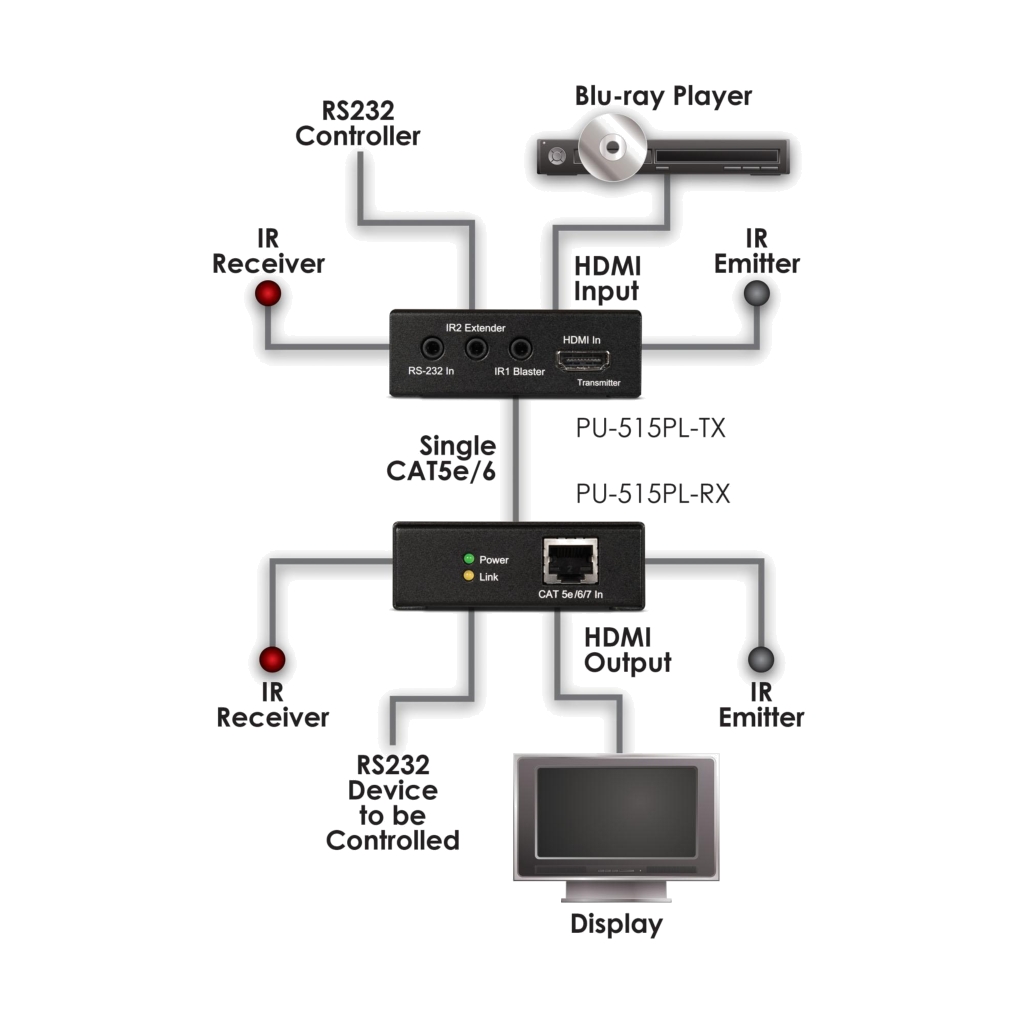

- Supports two-way IR, RS-232 Control, and Power Over Cable (PoC)
- Supports High Definition LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission

CYP PU-515PL-RX Specifications

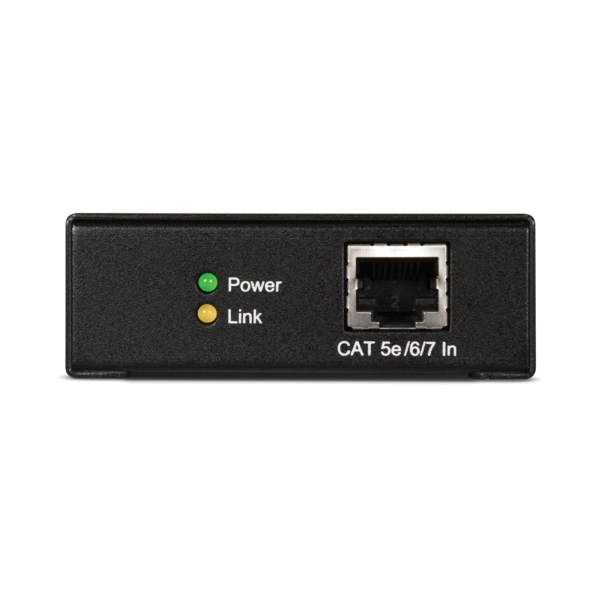

Inputs:
- 1x RJ45 [1x HDBaseT Lite HDMI & Propriety Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]

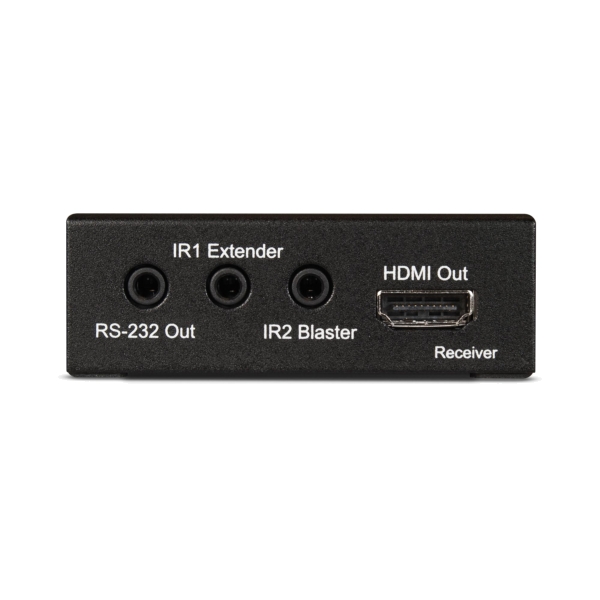

Outputs:
- 1x HDMI [1x HDMI Uncompressed AV and Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
- 1x 3.5mm Stereo mini-jack [1x RS-232]

- Dimensions: 71mm [W] x 23mm [H] x 73.5mm [D]
- Net Weight: 200g

Further Product Information Below

CYP PU 515PL RX Manual (PDF)

CYP PU 515PL RX Data Sheet (PDF)
