CYP PU-USB2-KIT USB 2.0 over CAT5e/6A/7 Cable Extender Kit

Price Each £129.81 (£155.77 Including VAT at 20%)

REF: JP115715

Quantity:

CYP PU-USB2-KIT USB 2.0 over CAT5e/6A/7 Cable Extender Kit

The CYP PUUSB2KIT is a low-cost transmitter and receiver pair for transmitting USB data over ethernet.

The PU USB2 KIT features 1 host to 4 devices, all housed in a compact housing of this USB 2.0 extender kit. This USB 2.0 extender kit provides a simple way to extend USB 2.0 signals over a single category cable up to 50 metres with high quality, uncompressed, multi-application data streams of USB.

Click Here for Printer Friendly Version

CYP PU-USB2-KIT Features

- Supports Point-to-Point USB transmission up to 50m over CAT cable
- Supports USB2.0, multi-streaming and multiple USB 2.0 device ports
- 1 host port to 4 device ports
- Each port can be used to connect a USB device. Multiple USB devices can be serviced simultaneously
- TX powered by connected host such as computer or laptop.
- Total 2A for 4 USB ports
- Low emission and robust noise immunity

CYP PU-USB2-KIT Specifications

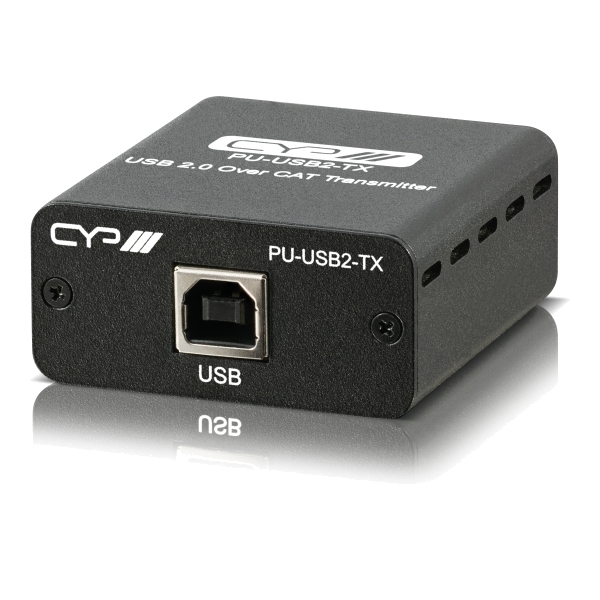

CYP PU-USB2-TX:
- Inputs: 1x USB Type B [1x USB Propriety Data]
- Outputs: 1x RJ45 [1x USB & Propriety Data]
- PSU: USB Powered
- Dimensions: 50mm [W] x 25mm [H] x 52mm [D]
- Weight: 60g

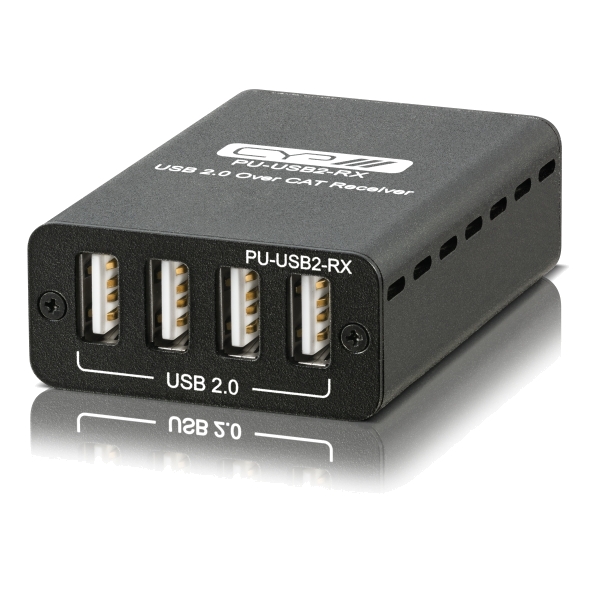

CYP PU-USB2-RX:
- Inputs: 1x RJ45 [1x USB & Propriety Data]
- Outputs: 4x USB Type A [4x USB & Propriety Data]

- PSU: 5V/3A
- Dimensions: 50mm [W] x 25mm [H] x 72mm [D]
- Weight: 80g

Further Product Information Below

CYP PU USB2 KIT Manual (PDF)

CYP PU USB2 KIT Data Sheet (PDF)
