CYP PU-USB3-KIT USB 3.2 Data over CAT5e/6A/7 Extender Kit

Price Each £352.90 (£423.48 Including VAT at 20%)

REF: JP115716

Quantity:

CYP PU-USB3-KIT USB 3.2 Data over CAT5e/6A/7 Extender Kit

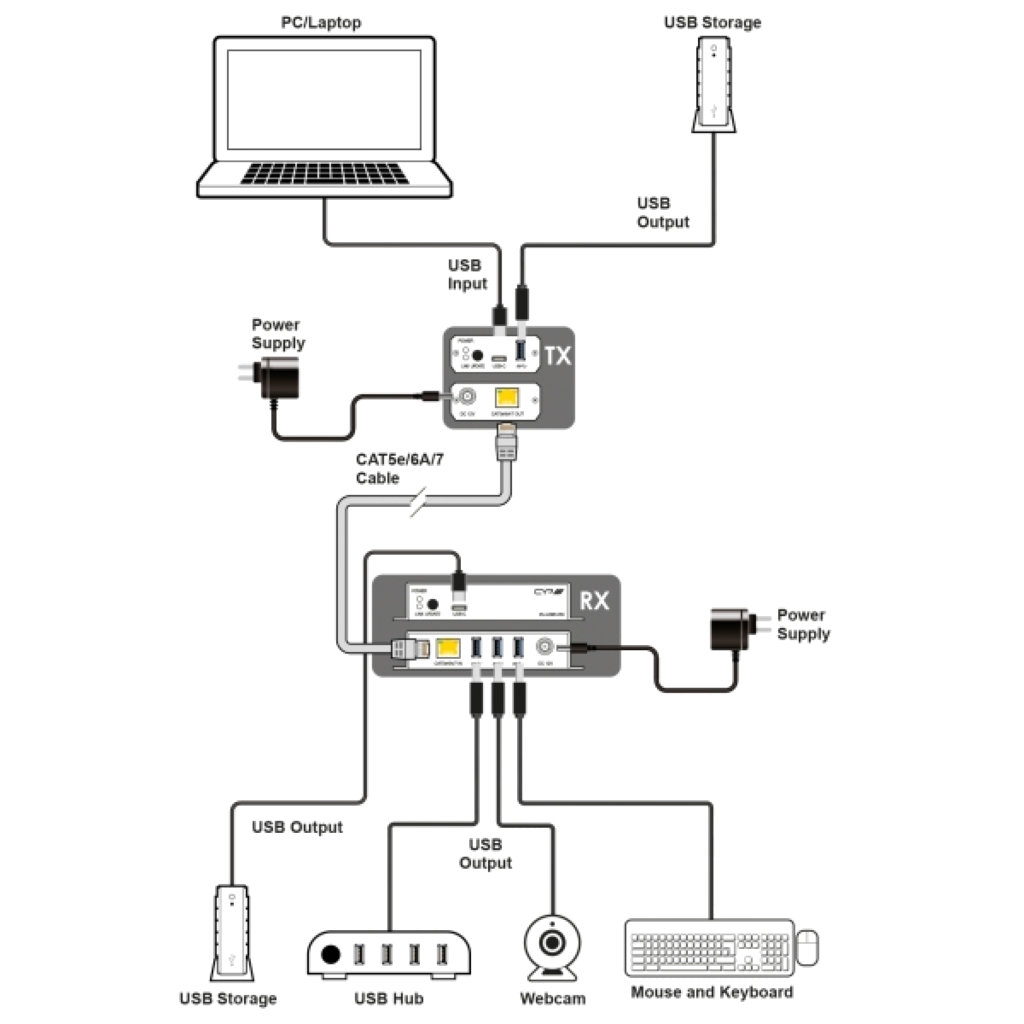

The CYP PUUSB3KIT is a USB 3.2 Gen1 extender set designed to extend signal from one USB host to multiple USB devices for up to 100 meters.

The PU USB3 KIT transmitter enables the extension from the USB-C host to a local USB device and across CAT cabling to the USB devices on the receiver. The transmitter can be powered by a connected host device such as a computer or laptop, without the need for an external power adaptor. Type-A port can provide up to 5V/900mA (4.5W) power when unit is active.

The PUUSB3KIT receiver enables users to extend up to 4 USB 3.2 devices remotely, such as flash drives, keyboards and USB cameras. With an adapter, USB-C port supports 5V/3A power and USB-A ports provides 5V/0.9A power to USB devices. The KIT also supports a hotkey for convenient firmware update (from the transmitter side for both TX and RX).

Click Here for Printer Friendly Version

CYP PU-USB3-KIT Features

- Support USB 3.2 Gen1 with 1 USB-C host port and 1 USB-A device port
- Support Point-to-Point transmission via CAT cabling
- Transmission up to 100 meters (328 feet)
- The transmitter can be powered by a connected host such as a computer or laptop
- The host can control multiple USB devices on transmitter side and receiver side
- Firmware update with hotkey from the transmitter, enabling remote firmware updates to the receiver
- Backward compatible with USB 2.0
- Receiver supports 4 USB 3.2 Gen1 device ports

CYP PU-USB3-KIT Specifications

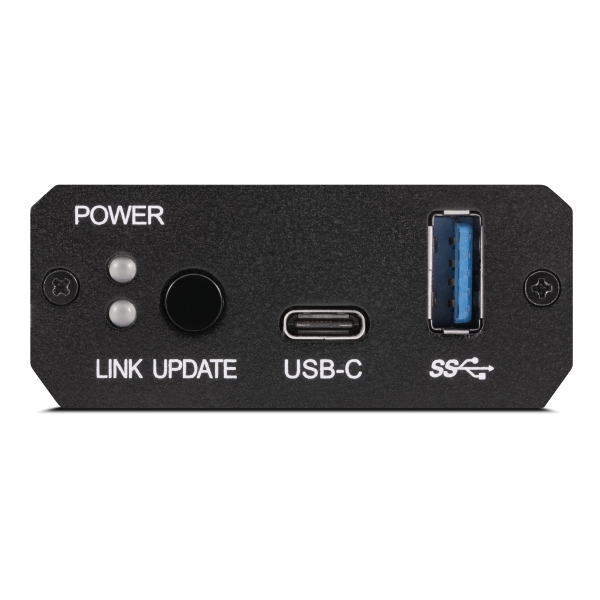

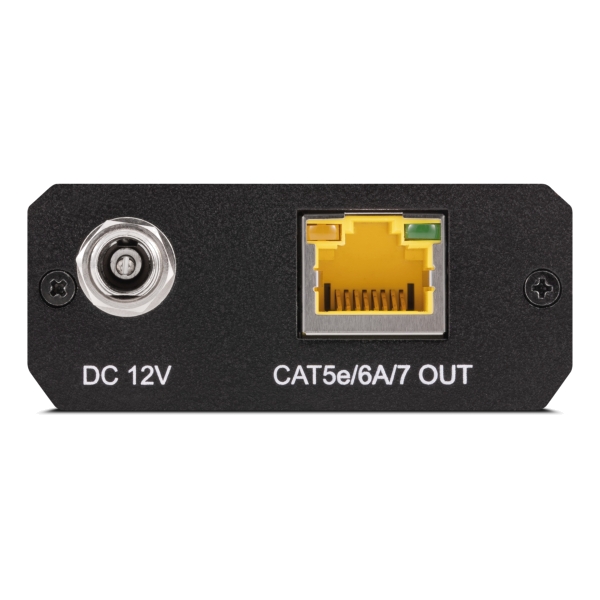

CYP PU-USB3-TX:
- Inputs: 1x USB-C [USB-C Host Port Proprietary data]
- Outputs:
  - 1x RJ45 [USB Data Extension Propriety Data]
  - 1x USB Type A [USB Device Port Propriety Data]
- PSU: 12V/3A, USB powered
- Dimensions: 60mm [W] x 25mm [H] x 95mm [D]
- Net Weight: 140g

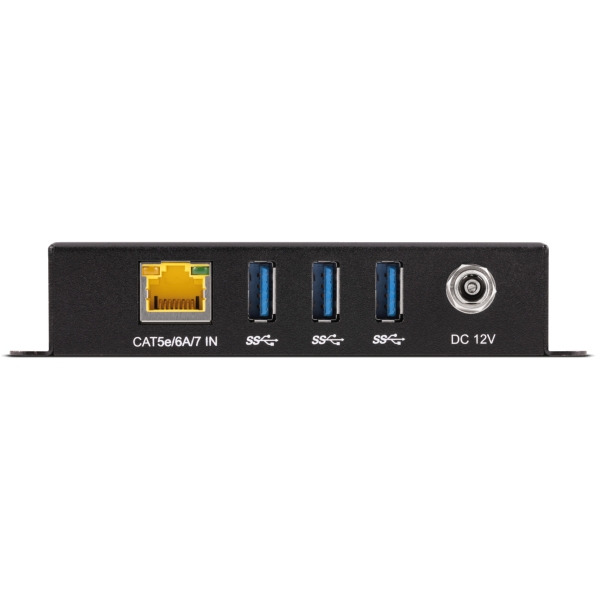

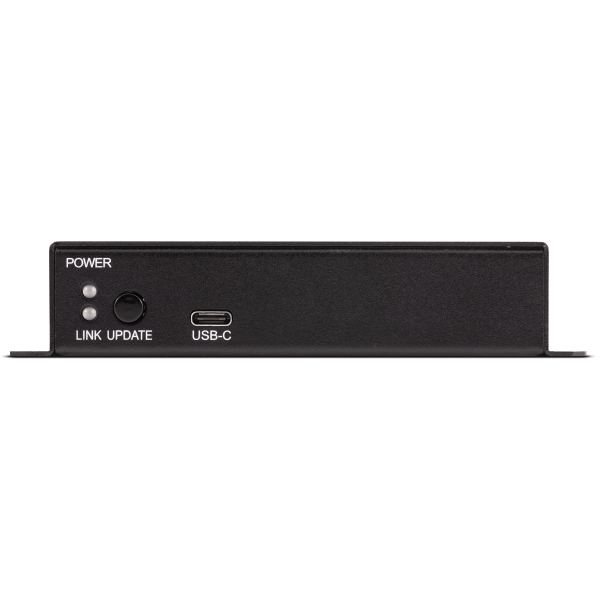

CYP PU-USB3-RX:
- Inputs: 1x RJ45 [USB Data Extension Propriety Data]
- Outputs:
  - 3x USB Type A [USB Device Port Propriety Data]
  - 1x USB-C [USB-C Device Port Proprietary data]
- PSU: 12V/3A
- Dimensions: 128mm [W] x 25mm [H] x 75mm [D]
- Net Weight: 280g

Further Product Information Below

CYP PU USB3 KIT Manual (PDF)

CYP PU USB3 KIT Data Sheet (PDF)
