CYP PUV-1210-KIT HDBaseT1 LITE KIT with PoH over CAT5e/6A/7 Extender

CYP PU-USB3-KIT Features

- HDCP2.2 Compliant
- High-Definition video and audio, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
- Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display's EDID settings
- 4K/2K & 4K UHD signals can be transmitted up to 35m via CAT5e/6 and 60m via CAT6a/7
- Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
- Supports HDCP repeating and CEC functions

CYP PU-USB3-KIT Specifications

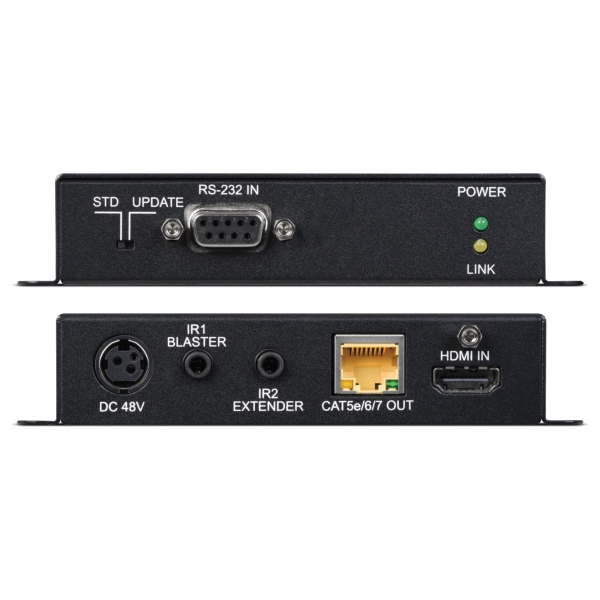

- Inputs:
  - 1x HDMI [1x TX HDMI Uncompressed AV and Data]
  - 1x 9pin Dsub [1x TX RS-232 Data]
  - 1x 3.5mm Stereo mini-jack [1x TX Infra Red Receiver]
  - 1x 3.5mm Stereo mini-jack [1x RX Infra Red Receiver]
  - 1x RJ45 [1x RX HDMI & Propriety Data]

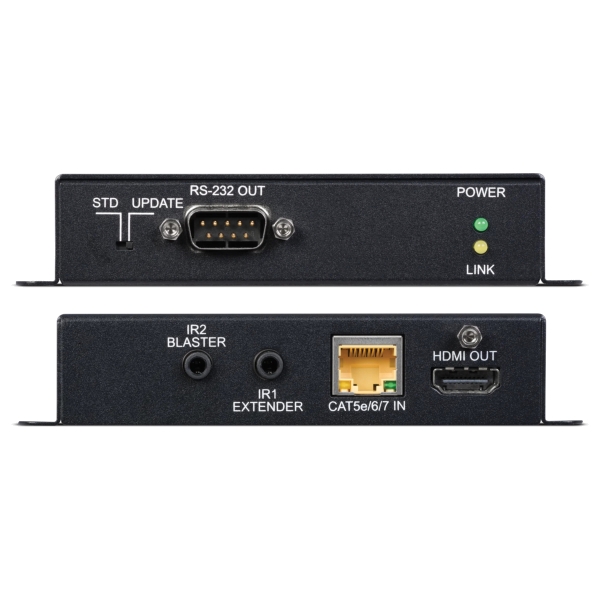

- Outputs:
  - 1x HDMI [1x RX HDMI Uncompressed AV and Data]
  - 1x 3.5mm Stereo mini-jack [1x RX Infra Red Emitter]
  - 1x 9pin Dsub [1x RX RS-232 Data]
  - 1x RJ45 [1x TX HDMI & Propriety Data]
  - 1x 3.5mm Stereo mini-jack [1x TX Infra Red Emitter]
- POE PSU: PoH
- PSU: 48V/0.83A
- Dimensions: 128mm [W] x 25mm [H] x 108mm [D]
- Net Weight: 400g
