CYP PUV-1210RX-AVLC Standard HDBaseT Receiver for CYP PUV-1082PL-4K22N

Price Each £146.83 (£176.20 Including VAT at 20%)

REF: JP115730

Quantity:

CYP PUV-1210RX-AVLC Standard HDBaseT Receiver for CYP PUV-1082PL-4K22N

The PUV1210RXAVLC will accept transmitted video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT) up to 60m.

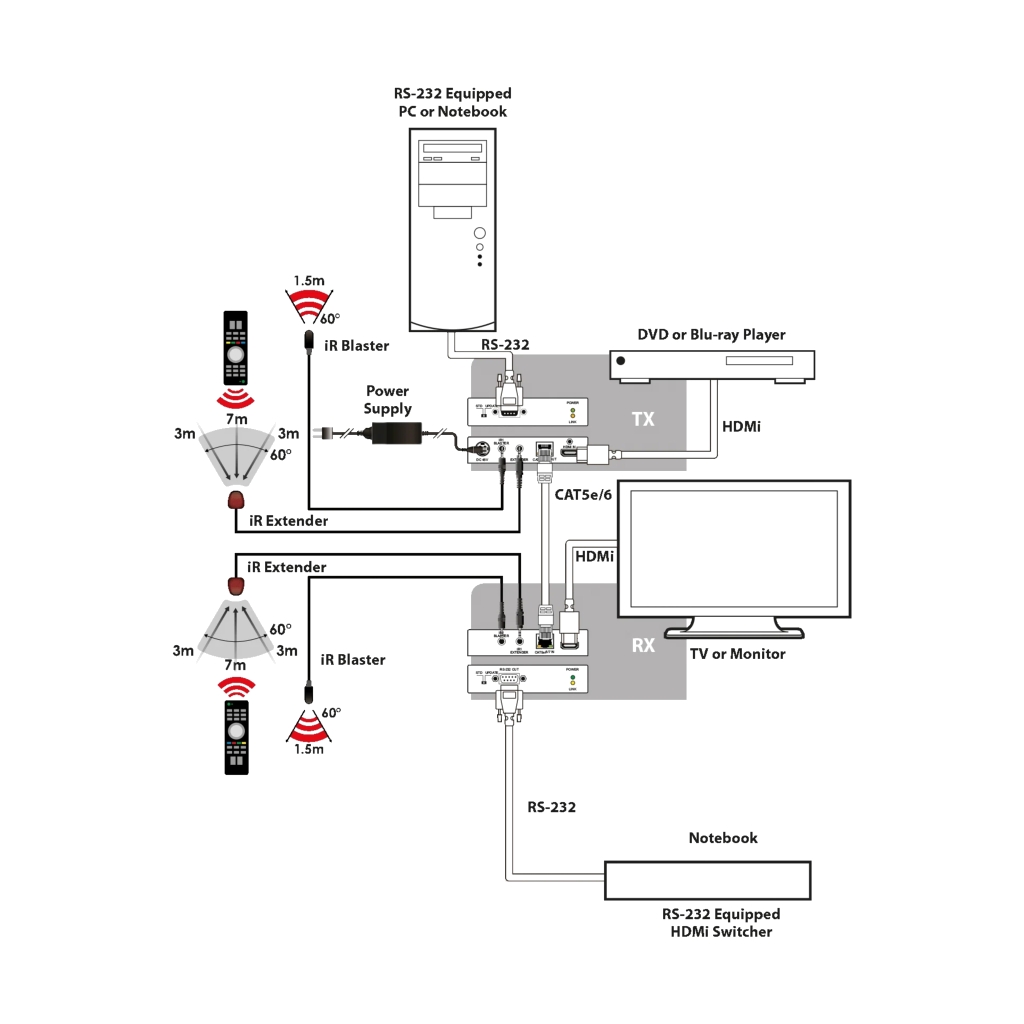

The PUV 1210RX AVLC provides advanced signal management ensuring reliable results in the most demanding installation environments. All audio, video, control, and power are received simultaneously over a single CAT6a/7 cable up to 60m.

Click Here for Printer Friendly Version

CYP PUV-1210RX-AVLC Features

- HDCP2.2 Compliant
- High-Definition video and audio, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
- Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display's EDID settings
- 4K/2K & 4K UHD signals can be transmitted up to 35m via CAT5e/6 and 60m via CAT6a/7
- Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
- Supports HDCP repeating and CEC functions
- Supports 3D signals

CYP PUV-1210RX-AVLC Specifications

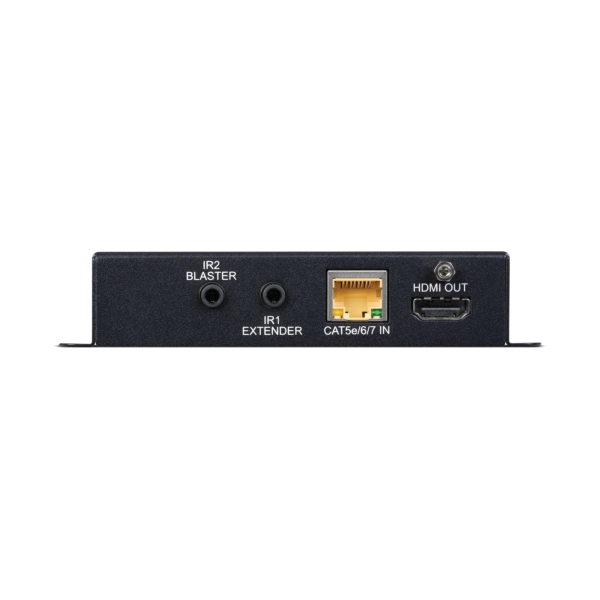

Inputs:
- 1x RJ45 [1x HDBaseT HDMI & Propriety Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]

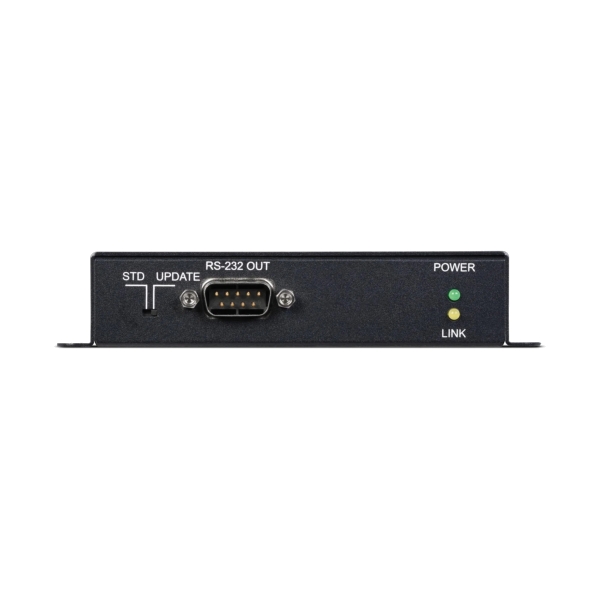

Outputs:
- 1x HDMI [1x HDMI Uncompressed AV and Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
- 1x 9pin Dsub [1x RS-232 Data]

- PSU: PoH
- Dimensions: 128mm [W] x 25mm [H] x 108mm [D]
- Weight: 200g

Further Product Information Below

CYP PUV 1210RX AVLC Manual (PDF)

CYP PUV 1210RX AVLC Data Sheet (PDF)
