CYP PUV-1230RX-AVLC Standard HDBaseT Receiver for CYP PUV-1082PL-4K22N

CYP PUV-1230RX-AVLC Features

- HDCP2.2 Compliant
- High-Definition video and audio, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
- Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display's EDID settings
- 4K/2K & 4K UHD signals can be transmitted up to 35m via CAT5e/6 and 60m via CAT6a/7
- Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
- Optical Audio Return (OAR)
- Supports HDCP repeating and CEC functions
- Supports 3D signals

CYP PUV-1230RX-AVLC Specifications

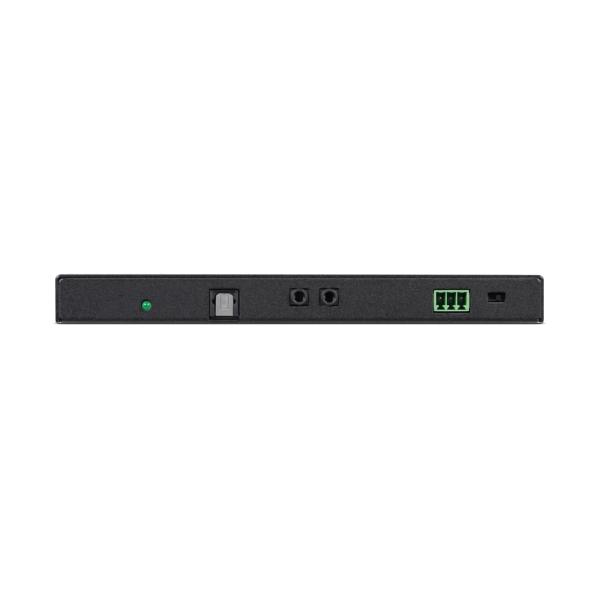

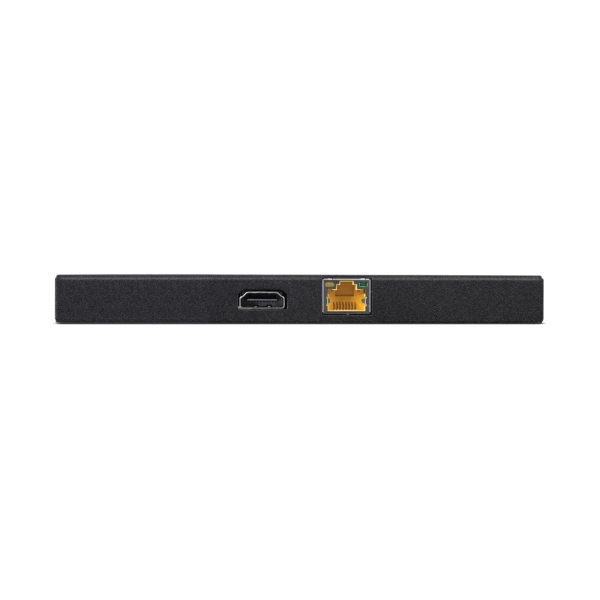

Inputs:
- 1x RJ45 [1x HDBaseT HDMI & Propriety Data]
- 1x Toslink [1x Optical DTS / Dolby Digital / 2-channel LPCM]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]

Outputs:
- 1x HDMI [1x HDMI Uncompressed AV and Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
- 1x Phoenix (3-pin) [1x RS-232]

- PSU: PoH
- Dimensions: 163mm [W] x 16mm [H] x 78mm [D]
- Weight: 200g

Further Product Information Below

CYP PUV 1230RX AVLC Manual (PDF)

CYP PUV 1230RX AVLC Data Sheet (PDF)
