CYP PUV-1510-KIT HDBaseT1 Transmitter & Receiver Kit over CAT6a/7 with LAN & PoH

CYP PUV-1510-KIT Features

- HDCP2.2 Compliant
- Supports uncompressed video/audio up to 10.2Gbps
- Supports HDCP repeating and CEC functions
- Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display's EDID settings
- 4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7
- 1080p signals can be transmitted up to 100m via CAT5e/6/6a/7
- Audio support up to 7.1CH & Dolby TrueHD, DTS-HD

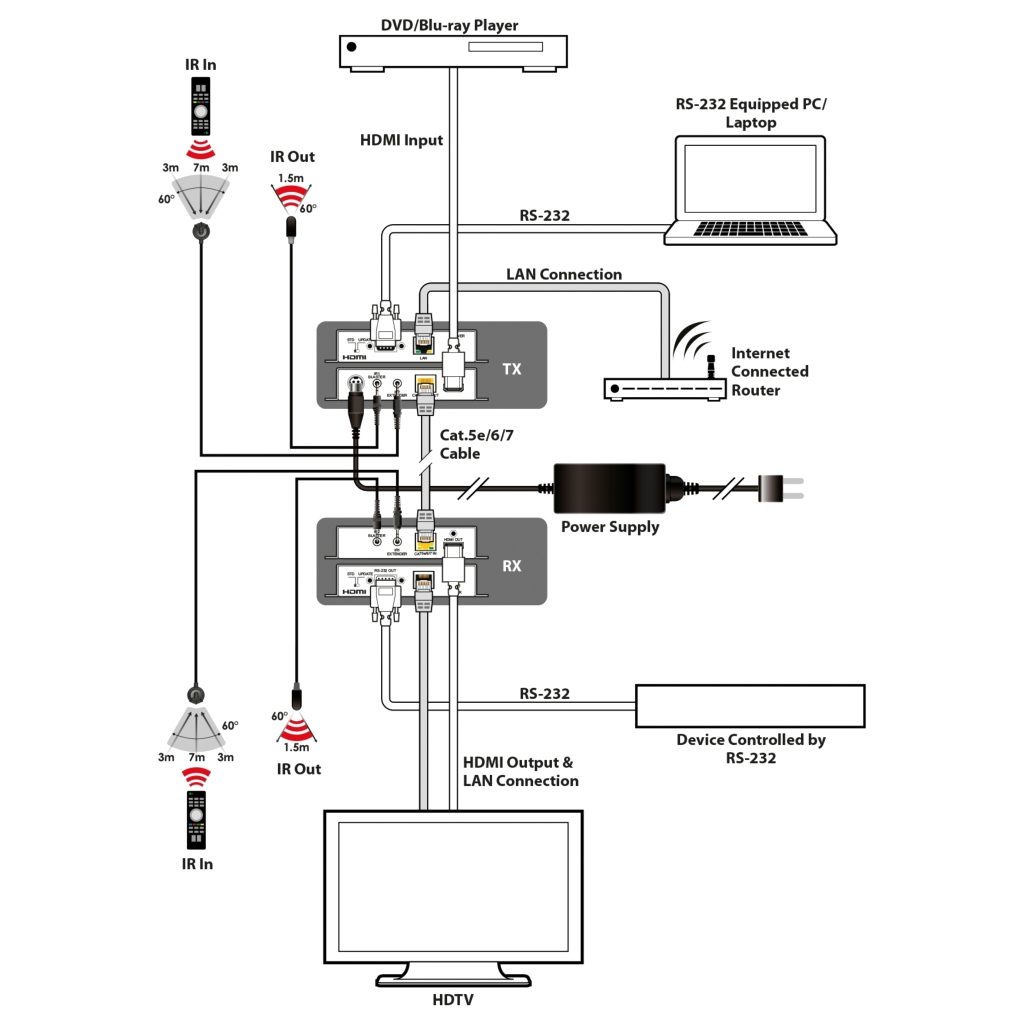

- 5-Play convergence: HDMI, LAN, PoH & Control (IR & RS232)
- Supports 3D signals

CYP PUV-1510-KIT Specifications

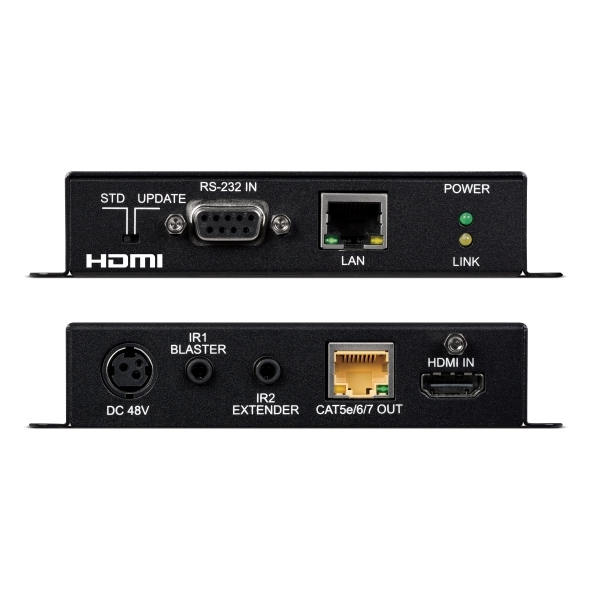

Transmitter:
- Inputs:
  - 1x HDMI [1x HDMI Uncompressed AV and Data]
  - 1x 9pin Dsub [1x RS-232 Data]
  - 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
- Outputs:
  - 1x RJ45 [1x HDBaseT output HDMI & Propriety Data]
  - 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
  - 1x RJ45 [1x Ethernet (I/O) IP]
- PSU: 48V/0.83A
- Dimensions: 128mm [W] x 25mm [H] x 108mm [D]
- Weight: 220g

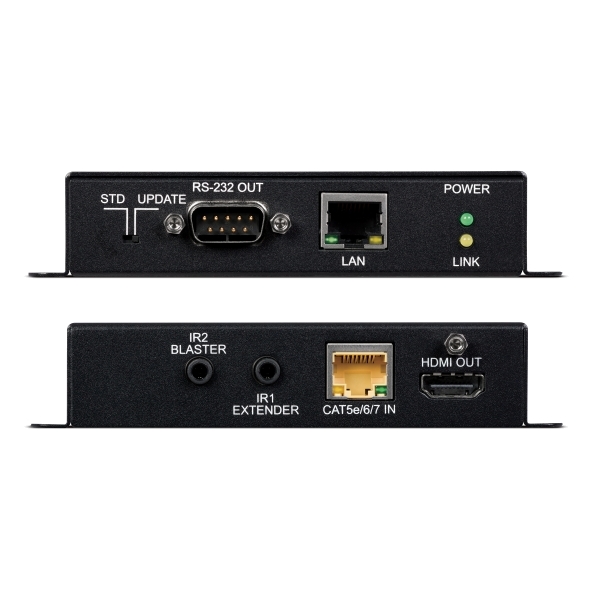

Receiver:
- Inputs:
  - 1x RJ45 [1x HDBaseT HDMI & Propriety Data]
  - 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
  - 1x RJ45 [1x LAN Serving]
- Outputs:
  - 1x HDMI [1x HDMI Uncompressed AV and Data]
  - 1x 9pin Dsub [1x RS-232 Data]
  - 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
- PSU: PoH
- Dimensions: 128mm [W] x 25mm [H] x 108mm [D]
- Weight: 200g
