CYP PUV-1710L-AVLC-KIT HDBaseT1 LITE Full 4K AVLC Series Transmitter & Receiver Kit with PoH

Price Each £371.30 (£445.56 Including VAT at 20%)

REF: JP115722

Quantity:

CYP PUV-1710L-AVLC-KIT HDBaseT1 LITE Full 4K AVLC Series Transmitter & Receiver Kit with PoH

The CYP PUV1710LAVLCKIT enables video resolutions up to 4K UHD including 10/12-bit HDR & Dolby Vision, to be transmitted along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT) signals from a distance of 35m (4K60 4:4:4): 70m (4K60 4:2:0).

The PUV 1710L AVLC KIT enables data rates of up to 18Gbps to be transmitted using AVLC (Adaptive Visually Lossless Compression) Technology. The transmitter enables 4KUHD sources up-to and including 4K@60Hz (4:4:4 8-bit) as well as 10/12 bit sources with HDR (Including Dolby Vision) to be extended to the receiver. The result is a perfect 4K 6G visually lossless image delivered to the display screen.

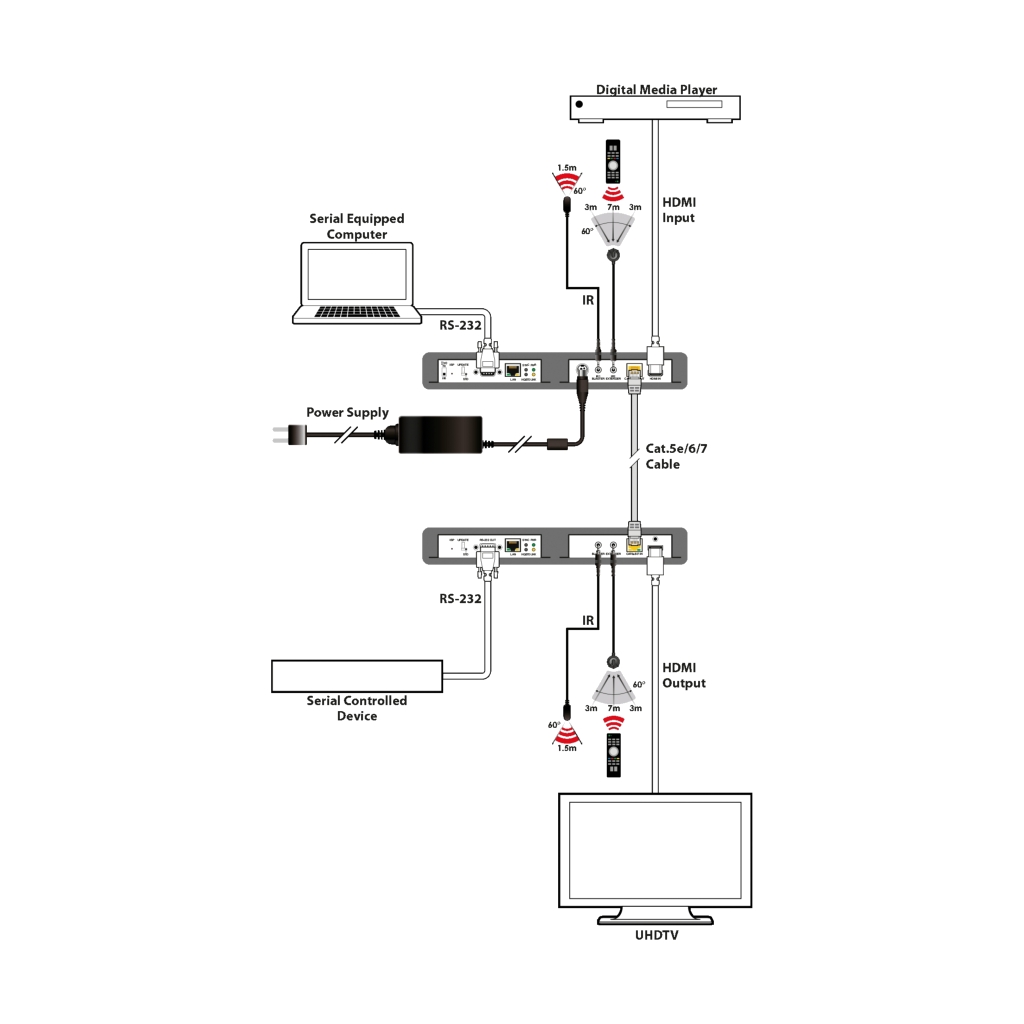

This solution provides advanced signal management ensuring reliable results in the most demanding installation environments. All audio, video, control, and power are transmitted simultaneously over a single CAT6a/7 cable up to 70m.

Click Here for Printer Friendly Version

CYP PUV-1710L-AVLC-KIT Features

- Supported HDBaseT feature set: HD Video & Audio, 48V PoH, and Control (Bi-directional IR/RS-232 pass-through)
- Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video output
- AVLC (Adaptive Visually Lossless Compression)
- AVLC Features manual selection between High Quality and Standard compression from TX (Useful for longer cable runs)
- Supports 10-bit and 12-bit HDR (High Dynamic Range)
- Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit)
- Supports Deep Colour input and output up to 12-bit
- Supports CEC Bypass
- 4K 3G Timings and 1080p up-to 70 Metres, 4K 6G Timings upto 35 Metres
- Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
- Supports 3D signals

CYP PUV-1710L-AVLC-KIT Specifications

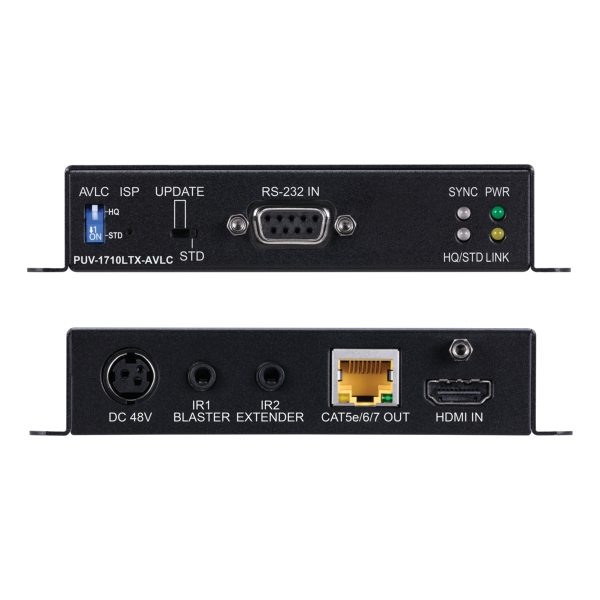

Transmitter:
- Inputs:
  - 1x HDMI [1x HDMI Uncompressed AV and Data]
  - 1x 9pin Dsub [1x RS-232 Data]
  - 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
- Outputs:
  - 1x RJ45 [1x HDBaseT HDMI & Propriety Data]
  - 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
- PSU: 48V/0.83A
- Dimensions: 128mm [W] x 25mm [H] x 108mm [D]
- Weight: 380g

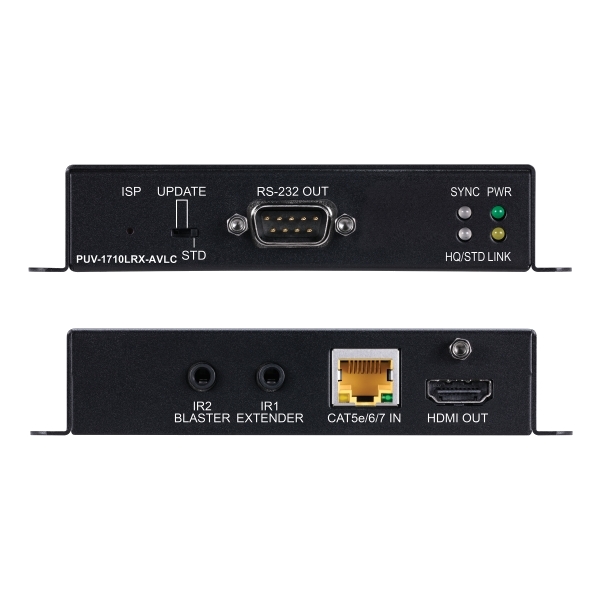

Receiver:
- Inputs:
  - 1x RJ45 [1x HDBaseT HDMI & Propriety Data]
  - 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
- Outputs:
  - 1x HDMI [1x HDMI Uncompressed AV and Data]
  - 1x 9pin Dsub [1x RS-232 Data]
  - 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
- PSU: PoH
- Dimensions: 128mm [W] x 25mm [H] x 108mm [D]
- Weight: 380g

Further Product Information Below

CYP PUV 1710L AVLC KIT Manual (PDF)

CYP PUV 1710L AVLC KIT Data Sheet (PDF)
