CYP PUV-1810RX-AVLC HDBaseT1 Full 4K AVLC Series Receiver with LAN & PoH for CYP PUV-1082-PRO

Price Each £211.10 (£253.32 Including VAT at 20%)

REF: JP115727

Quantity:

CYP PUV-1810RX-AVLC HDBaseT1 Full 4K AVLC Series Receiver with LAN & PoH for CYP PUV-1082-PRO

The PUV1810RXAVLC enables video resolutions up to 4K UHD including 10/12-bit HDR & Dolby Vision to be received along with HD audio.

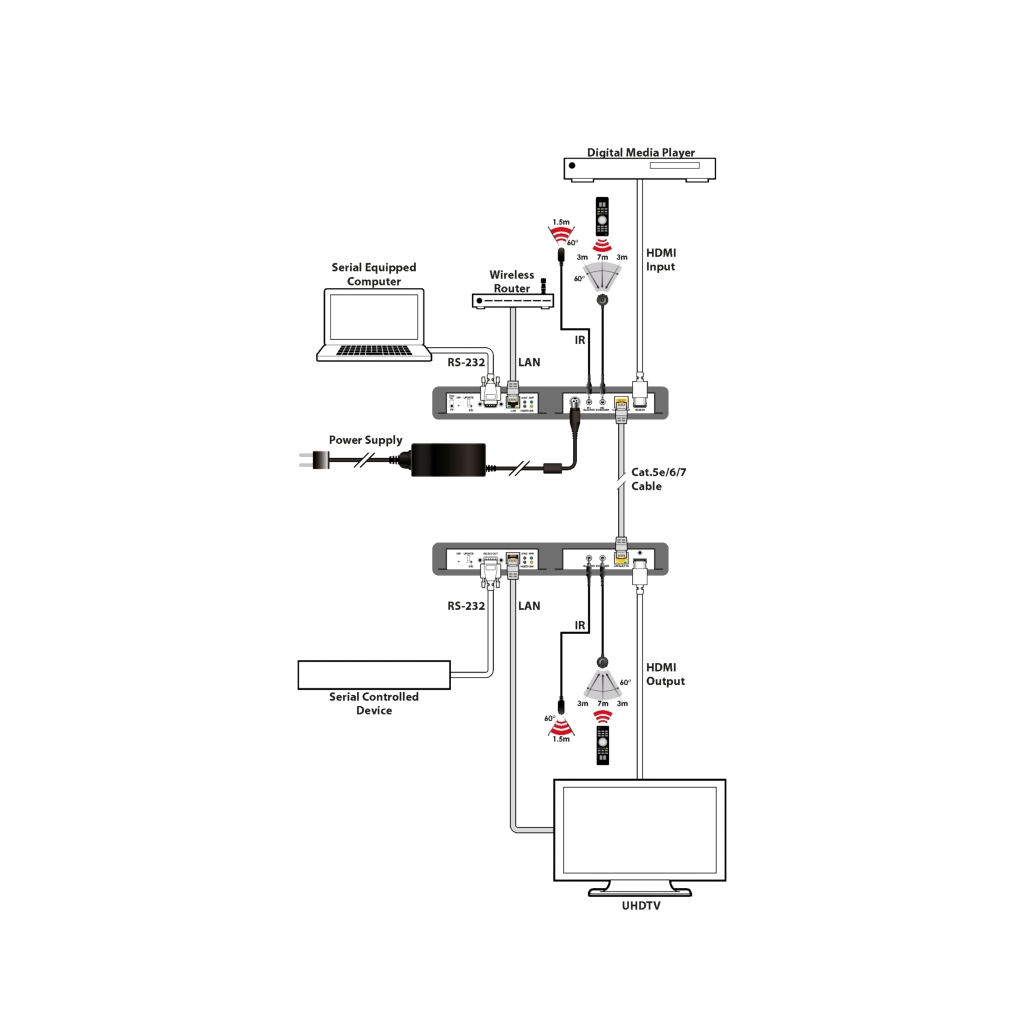

The CYP PUV 1810RX AVLC provides advanced signal management ensuring reliable results in the most demanding installation environments. All audio, video, control, and power are received simultaneously over a single CAT6a/7 cable up to 100m.

Despite the 10.2Gbps limitation of HDBaseT technology, the PUV-1810RX-AVLC HDBaseT1 Full 4K Receiver with LAN & PoH enables data rates of up to 18Gbps to be received using AVLC (Adaptive Visually Lossless Compression) Technology. The receiver enables 4KUHD sources up-to and including 4K@60Hz (4:4:4 8-bit) as well as 10/12 bit sources with HDR (Including Dolby Vision) to be received over distance from a compatible transmitter. The result is a perfect 6G 4K visually lossless image delivered to the display screen.

Click Here for Printer Friendly Version

CYP PUV-1810RX-AVLC Features

- HDBaseT 5-Play convergence: high-definition video and audio, 100BaseT ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
- Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video output
- AVLC (Adaptive Visually Lossless Compression)
- AVLC features manual selection between high quality and standard compression from TX (useful for longer cable runs)
- Supports 10-bit and 12-bit HDR (High Dynamic Range)
- Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit)
- Supports Deep Colour input and output up to 12-bit
- Supports CEC Bypass
- 4K 3G Timings and 1080p up-to 100 Metres, 4K 6G timings up to 70 Metres
- Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
- Supports 3D signals

CYP PUV-1810RX-AVLC Specifications

Inputs:

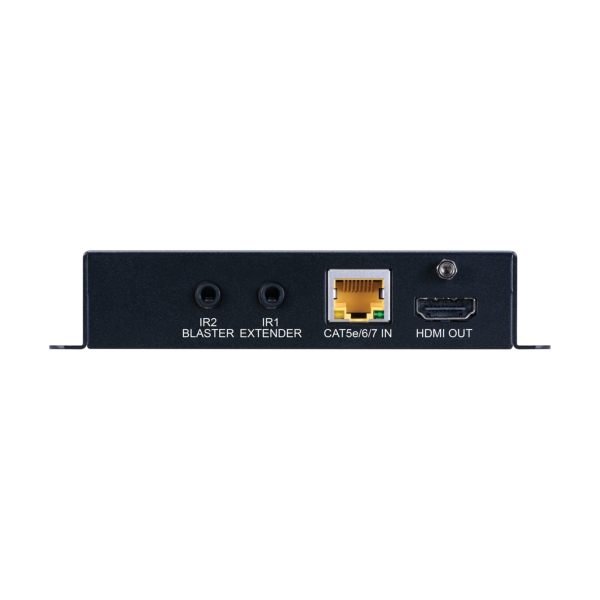

- 1x RJ45 [1x HDBaseT HDMI & Propriety Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]

Outputs:
- 1x HDMI [1x HDMI Uncompressed AV and Data]

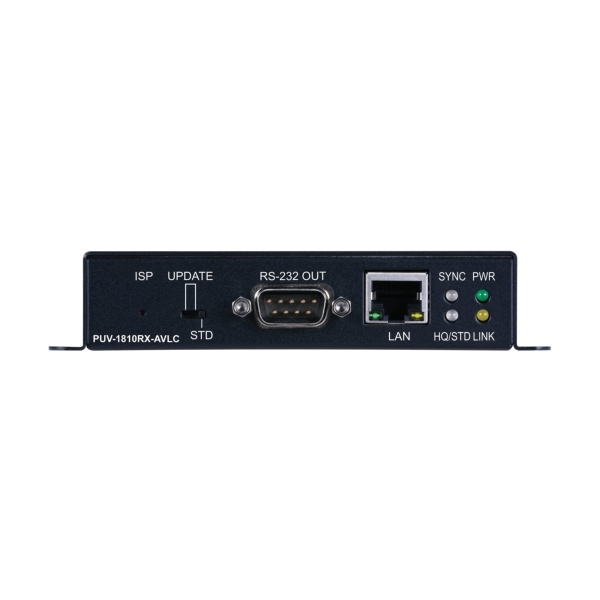

- 1x 9pin Dsub [1x RS-232 Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
- 1x RJ45 [1x LAN Serving]

- PSU: PoH
- Dimensions: 128mm [W] x 25mm [H] x 108mm [D]
- Weight: 380g

Further Product Information Below

CYP PUV 1810RX AVLC Manual (PDF)

CYP PUV 1810RX AVLC Data Sheet (PDF)
