CYP PUV-1830RX-AVLC HDBaseT1 Full 4K AVLC Series Receiver with OAR, LAN & PoH for CYP PUV-1082-PRO

Price Each £253.54 (£304.25 Including VAT at 20%)

REF: JP115728

Quantity:

CYP PUV-1830RX-AVLC HDBaseT1 Full 4K AVLC Series Receiver with OAR, LAN & PoH for CYP PUV-1082-PRO

The PUV1830RXAVLC enables video resolutions up to 4K UHD including 10/12-bit HDR & Dolby Vision, to be received along with HD audio.

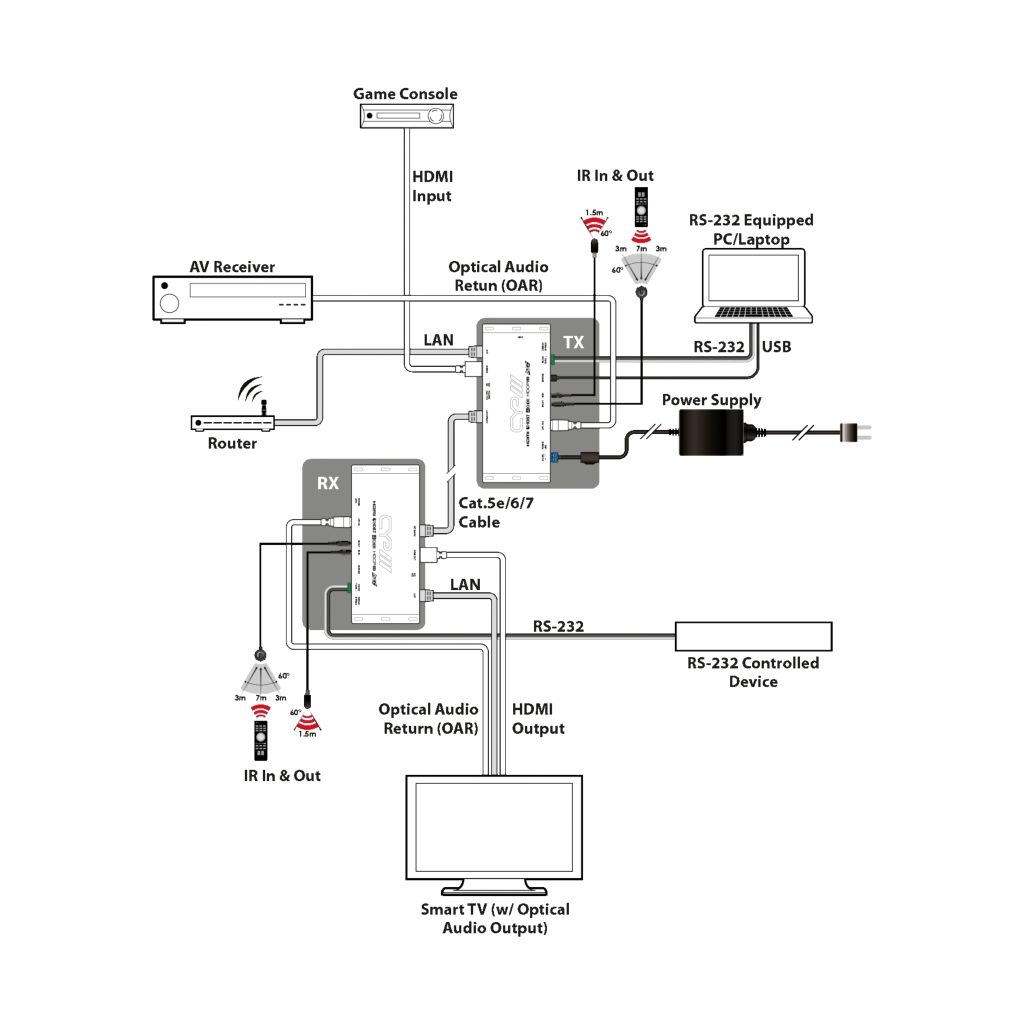

The CYP PUV 1830RX AVLC provides advanced signal management ensuring reliable results in the most demanding installation environments. All audio, video, control, and power are received simultaneously over a single CAT6a/7 cable up to 100m. This unit also features OAR (Optical Audio Return) allowing the user to extract Optical Audio transmitted from the HDBaseT Receiver.

Despite the 10.2Gbps limitation of HDBaseT technology, the PUV-1830RX-AVLC HDBaseT1 Full 4K Receiver with OAR, LAN & PoH enables data rates of up to 18Gbps to be received using AVLC (Adaptive Visually Lossless Compression) Technology. The receiver enables 4KUHD sources up-to and including 4K@60Hz (4:4:4 8-bit) as well as 10/12 bit sources with HDR (Including Dolby Vision) to be received over distance from a compatible transmitter. The result is a perfect 6G 4K visually lossless image delivered to the display screen.

Click Here for Printer Friendly Version

CYP PUV-1830RX-AVLC Features

- HDBaseT 5-Play convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
- Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video output
- AVLC (Adaptive Visually Lossless Compression)
- AVLC Features manual selection between High Quality and Standard compression from TX (useful for longer cable runs)
- Supports 10-bit and 12-bit HDR (High Dynamic Range)
- Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit)
- Supports OAR (Optical Audio Return)
- Supports Deep Colour input and output up to 12-bit
- Supports CEC Bypass
- 4K 3G Timings and 1080p up-to 100 Metres, 4K 6G Timings up to 70 Metres
- Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
- Supports 3D signals

CYP PUV-1830RX-AVLC Specifications

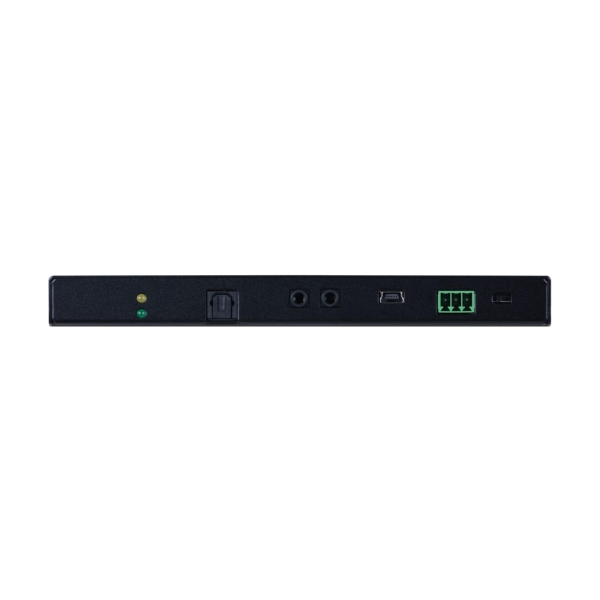

Inputs:
- 1x RJ45 [1x HDBaseT HDMI & Propriety Data]
- 1x Toslink [1x OAR digital pathway 2 Channel LPCM / DTS / Dolby Digital]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
- 1x USB Type A [1x Service Port Propriety Data]

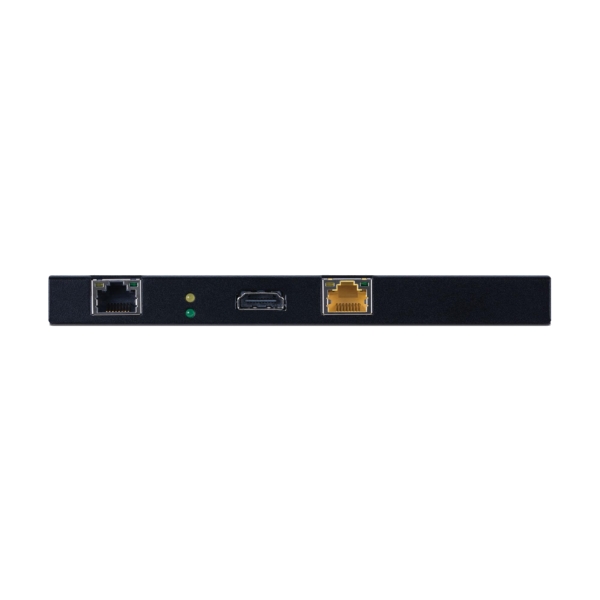

Outputs:
- 1x HDMI [1x HDMI Uncompressed AV and Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
- 1x RJ45 [1x LAN Serving]
- 1x Phoenix (3 pin) [1x RS-232]

- PSU: PoH
- Dimensions: 163mm [W] x 16mm [H] x 78mm [D]
- Weight: 200g

Further Product Information Below

CYP PUV 1830RX AVLC Manual (PDF)

CYP PUV 1830RX AVLC Data Sheet (PDF)
