CYP PUV-3050UA-KIT HDBaseT3 Full 4K HDMI KIT with USB, PoH, Audio Pathway & HDMI Bypass

Price Each £548.38 (£658.06 Including VAT at 20%)

REF: JP115724

Quantity:

CYP PUV-3050UA-KIT HDBaseT3 Full 4K HDMI KIT with USB, PoH, Audio Pathway & HDMI Bypass

The CYP PUV3050UAKIT is capable of extending uncompressed HDMI 2.0 4K@60 (4:4:4, 8-bit or 4K HDR) video and HD audio.

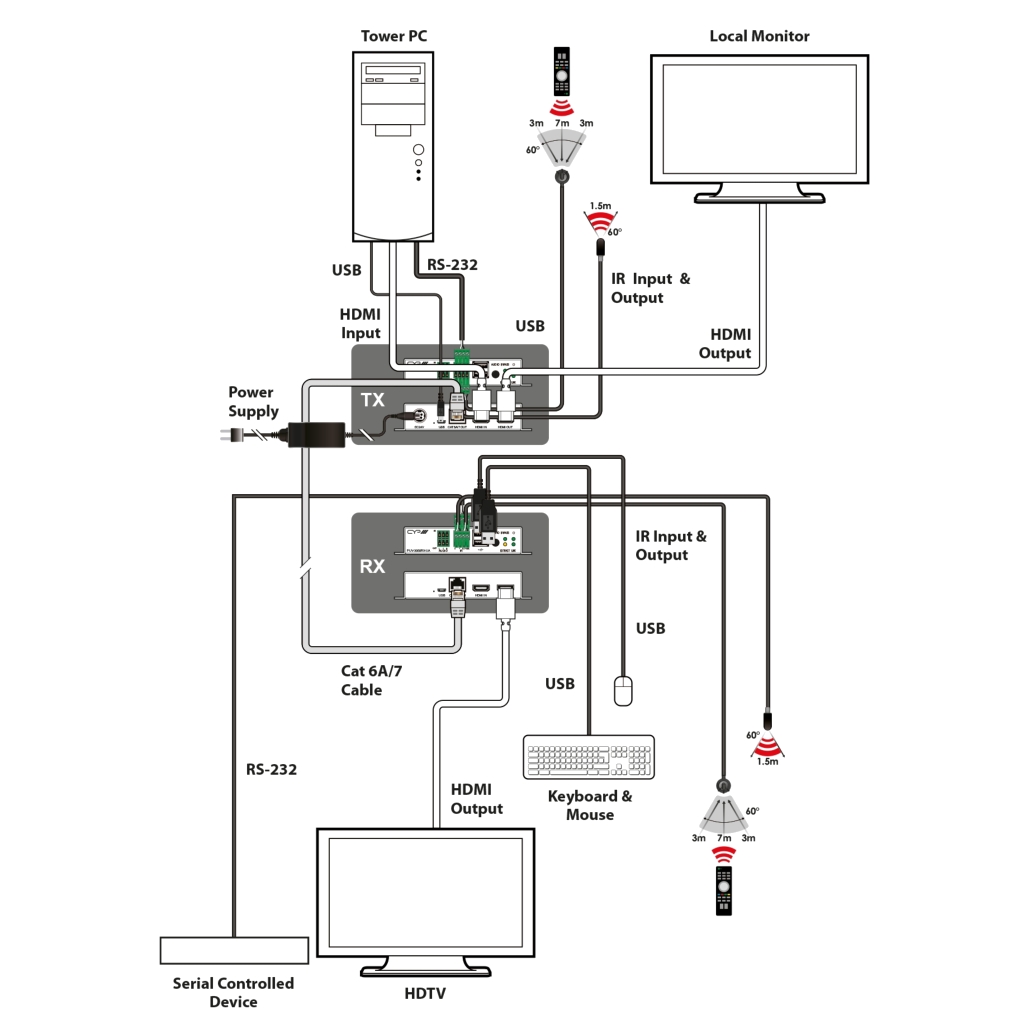

The CYP PUV 3050UA KIT is part of the new generation of HDBaseT 3.0 technology. Along with video and auido it can send control signals via a single run of Cat.6a/7 cable over distances of up to 40 meters. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, and USB 2.0.

USB connectivity allows extension of USB signals, ideal for uses such as KVM (keyboard and mouse) or touch / interactive displays, and with USB2.0 support this connection allows for fast data transfer and expanded peripheral compatibility.

For added flexibility, this kit supports bi-directional analogue audio.

The PUV3050UAKIT HDBaseT3 4K HDMI I/O Kit with USB, PoH & Audio is ideal for any scenario which needs uncompressed video and audio over distance with added USB data and individual audio pathways, such as medical equipment, conference rooms, education, residential, and more.

Click Here for Printer Friendly Version

CYP PUV-3050UA-KIT Features

- Supports up to 4K UHD+ (18Gbps, 4K@60Hz 4:4:4, 8-bit) video over HDBaseT
- HDMI 2.0 and DVI 1.0 compatible, HDCP 2.2 and HDCP 1.x compliant
- HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0)
- Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
- HDBaseT feature support: HD Video and Audio, Bi-directional analogue audio, and control (bidirectional USB/IR/RS-232 pass-through)
- USB 2.0 Type-A device ports and 1 Micro USB 2.0 host port
- Supports providing PoH power from Transmitter to Receiver in same HDBaseT port
- Analogue audio I/O pathway across the HDBaseT link
- Local HDMI output (on TX)
- Local analogue audio output (from analogue line in, on TX)
- Audio output is selectable (on RX) between the bypass & extraction

CYP PUV-3050UA-KIT Specifications

Inputs:

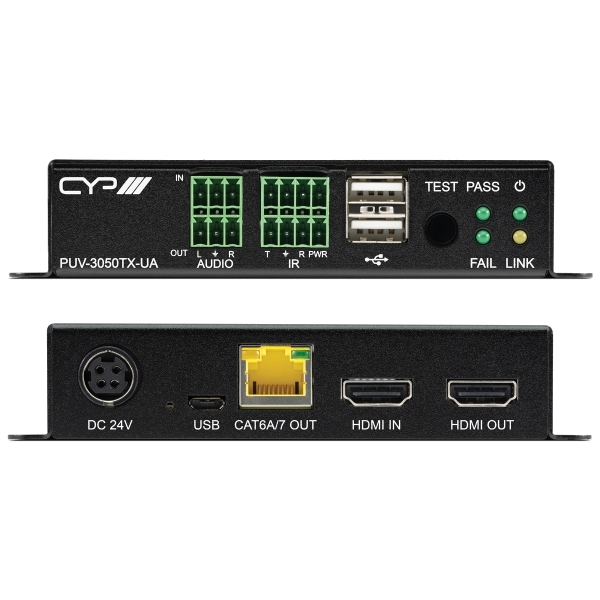

- 1x HDMI (TX) Uncompressed AV and Data [1x HDMI]
- 1x Analogue (TX) Stereo (L/R) Audio Input [1x Phoenix (3 pin)]
- 2x USB Pathway (TX) Propriety Data [1x USB Type A]
- 2x Service Ports Propriety Data [1x USB Micro]

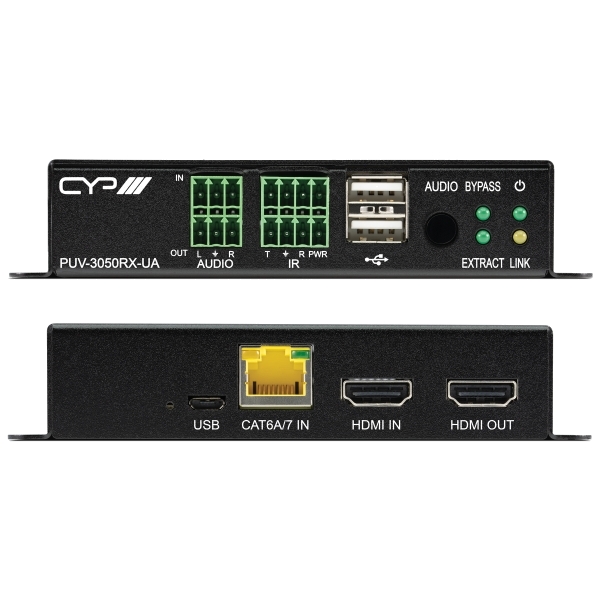

- 1x HDMI local input (RX) Uncompressed AV and Data [1x HDMI]
- 1x HDBaseT 3 (RX) HDMI & Propriety Data [1x RJ45]
- 1x Analogue (RX) Stereo (L/R) Audio Input [1x Phoenix (3 pin)]

Outputs:
- 1x HDMI local bypass (TX) Uncompressed AV and Data [1x HDMI]
- 1x HDBaseT 3 (TX) HDMI & Propriety Data [1x RJ45]
- 1x Analogue (TX) Stereo (L/R) Audio Output [1x Phoenix (3 pin)]
- 1x HDMI (RX) Uncompressed AV and Data [1x HDMI]
- 1x Analogue (RX) Stereo (L/R) Audio Output [1x Phoenix (3 pin)]
- 2x USB pathway (RX) Propriety Data [1x USB Type A]

- POE PSU: PoH
- PSU: 24V/2.7A
- Dimensions: 128mm [W] x 25mm [H] x 108mm [D]
- Net Weight: 800g

Further Product Information Below

CYP PUV 3050UA KIT Manual (PDF)

CYP PUV 3050UA KIT Data Sheet (PDF)
