CYP SDV-C1H-TX SDVoE Full 4K 10G AV over IP CAT-Based Small Form Factor Transmitter
The CYP SDVC1HTX SDVoE Full 4K 10G AV over IP CAT-Based Small Form Factor Transmitter delivers up to 4K@60 4:4:4 with minimum latency over Cat.6A ethernet.

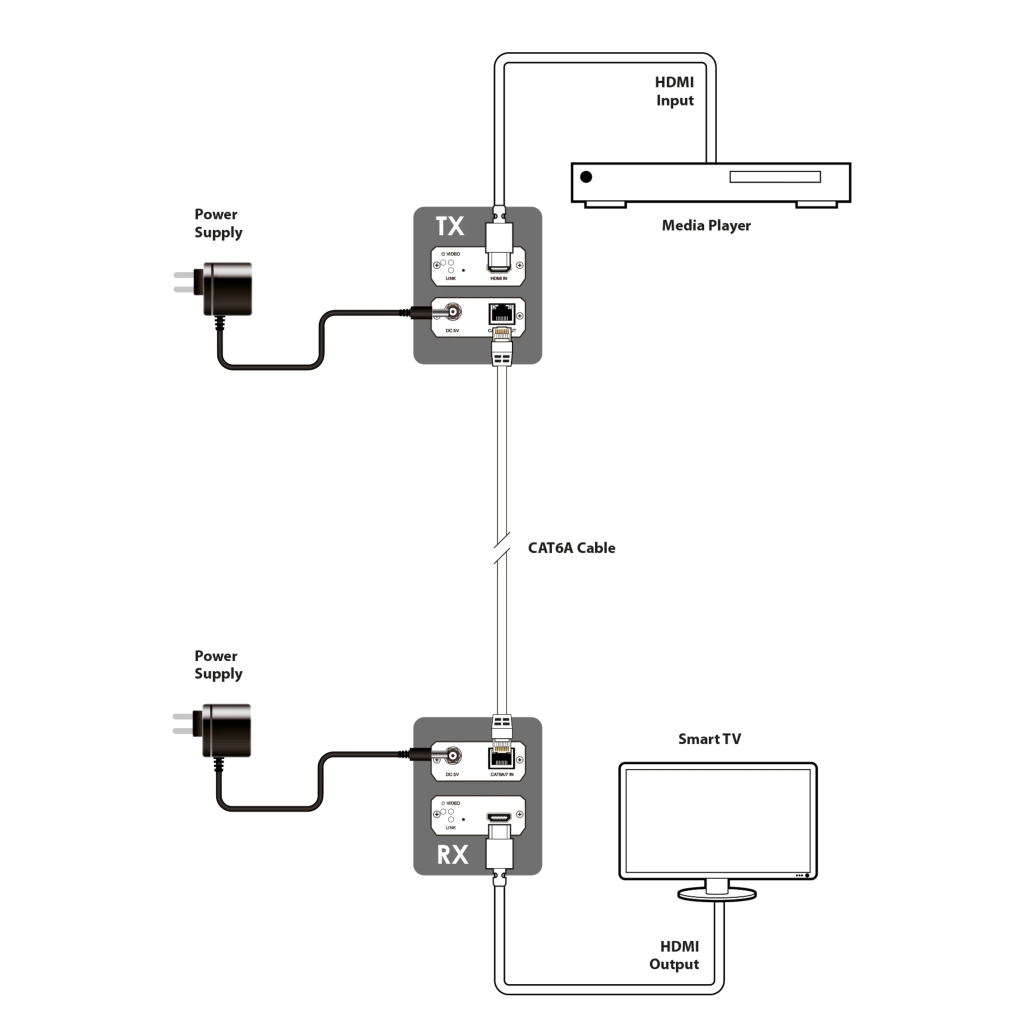

The SDV C1H TX utilises 10G Ethernet ports, and Cat.6A cable to allow transmission of the video signal up to 100m.

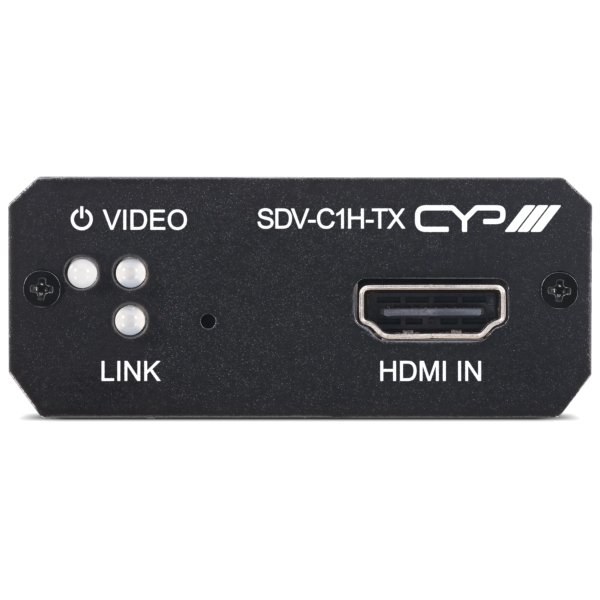

Advanced HDMI content such as HDR (High Dynamic Range), 10-bit colour and multichannel HD Bitstream audio can be transmitted through the network.
The small and compact size design enhances the flexibility of installation. Additionally, the specially engineered source preview functionality added to this hardware platform increases its utility when controlled remotely. When combined with the optional IP Master Controller (the SDV-CS8) or control software, the functionality of the transmitter expands exponentially. Multiple transmitters and receivers may be combined with one or more 10-Gigabit Ethernet switches and the units can be used together to form a distributed video matrix, a multiviewer system, or a video wall system adding to their flexibility in large event installations.

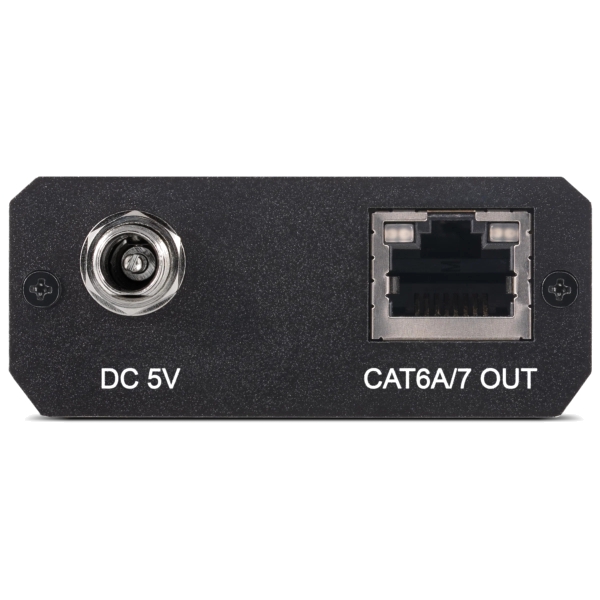

The SDVC1HTX can be powered directly via PoE when connected through Cat.6A to a 10-Gigabit Ethernet switch that supports PoE (802.3af), allowing for great installation flexibility. Advanced control such as firmware update can also be performed conveniently through the SDV-CS8 Controller or control software.
