CYP XA-FAK Technical Pro AV First Aid Kit

Price Each £740.14 (£888.17 Including VAT at 20%)

REF: JP115688

Quantity:

CYP XA-FAK Technical Pro AV First Aid Kit

The CYP XAFAK Technical Pro AV First Aid Kit is a survival kit for AV integrators and installers.

A go-to bag packed with essential CYP Europe products that help tackle common installation problems quickly and efficiently.

Every installer, at some point, hits a snag: a cable doesn't reach, the signal won't connect, audio won't pass through, or something just isn't behaving the way it should. That's where this kit comes in.

The XA FAK Installer First Aid Kit is not a full toolbox, but rather a highly curated set of backup products — the kind of gear that solves real-world issues on site, without delay. It's for those "just in case" or "thank goodness I had that with me" moments.

Click Here for Printer Friendly Version

CYP XA-FAK Features

- Solves common AV headaches in seconds
- Fits in a van, sits in a rack room, travels on-site
- Prevents project hold-ups
- Maintains professional momentum on the job

CYP XA-3P Features

- HDMI I/O with 18Gbps (6G) 4KUHD Support
- HDCP v1.4 and v2.2 Compliant
- Supports HD resolutions up to 3840x2160 @ 60Hz (YUV 4:4:4, 8-bit) and 4096x2160 @ 60Hz (YUV 4:4:4, 8-bit)
- Supports video pass through
- Built in Down-Scaler 4K to 1080p
- SCDC input/output monitor
- HDMI Packet data analysis
- 23 selectable output resolutions available in test pattern mode
- 11 selectable output patterns available in test pattern mode
- HDMI 2.0 Cable Test option with support for 5v and Hot-Plug detection
- Supports Generation of sinewave audio up to LPCM 8CH and analysis of the source audio signal
- EDID Management support with 10 pre-set default EDID's and 10 user EDID slots from connected sinks
- Battery Operated or USB powered
- LED display with real time data feedback and current status information
- Supports USB firmware update

CYP XA-3P Specifications

- Inputs: 1x HDMI [1x HDMI Uncompressed AV and Data], 1x USB Mini B [1x USB Power]
- Outputs: 1x HDMI [1x HDMI Uncompressed AV and Data]
- PSU: USB powered, Battery Powered
- Dimensions (H x W x D): 124 x 80 x 24mm
- Net Weight: 320g

Further Product Information Below

CYP XA 3P Manual (PDF)

CYP XA-FAK Supplied With

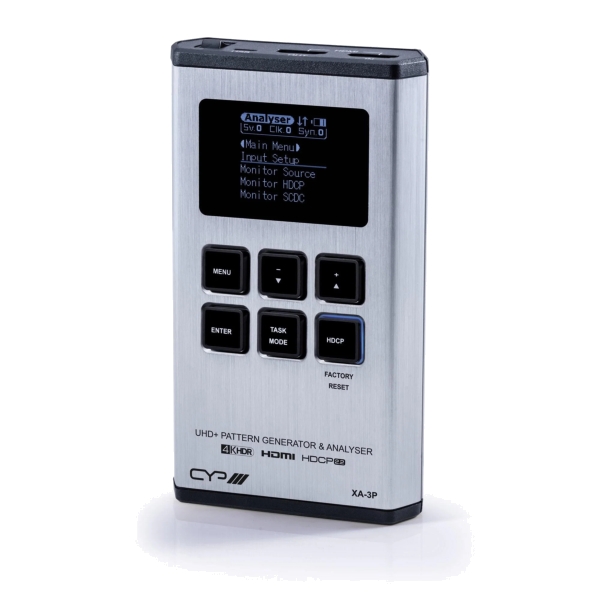

- CYP XA-3P -Battery powered 4K HDMI Pattern Generator, Analyser & Cable Tester

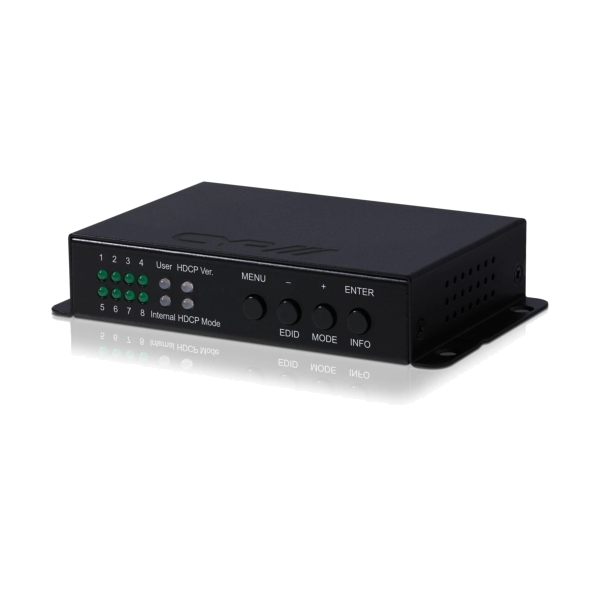

- CYP RE-101-4K22 -Full 4K HDMI to HDMI Repeater with EDID Management

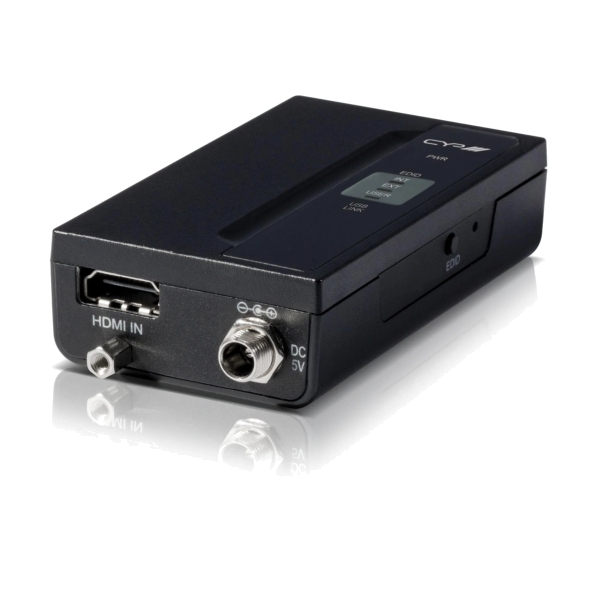

- CYP RE-EDID-4K22 – HDMI Full 4K EDID Manager with HDCP modes & downscaler

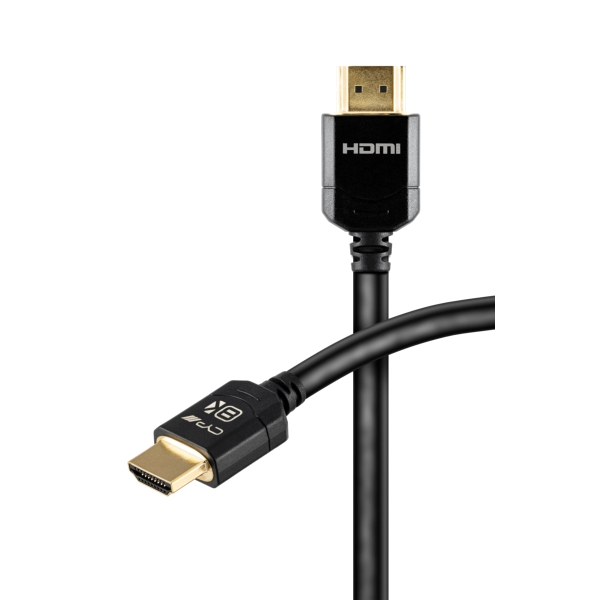

- CYP HDMU-100M – 1 Metre Ultra High Speed HDMI Certified 8K cable
- CYP HDMU-200M – 2 Metre Ultra High Speed HDMI Certified 8K cable
- CYP XA-CASE – XA Analyser Hard Case
